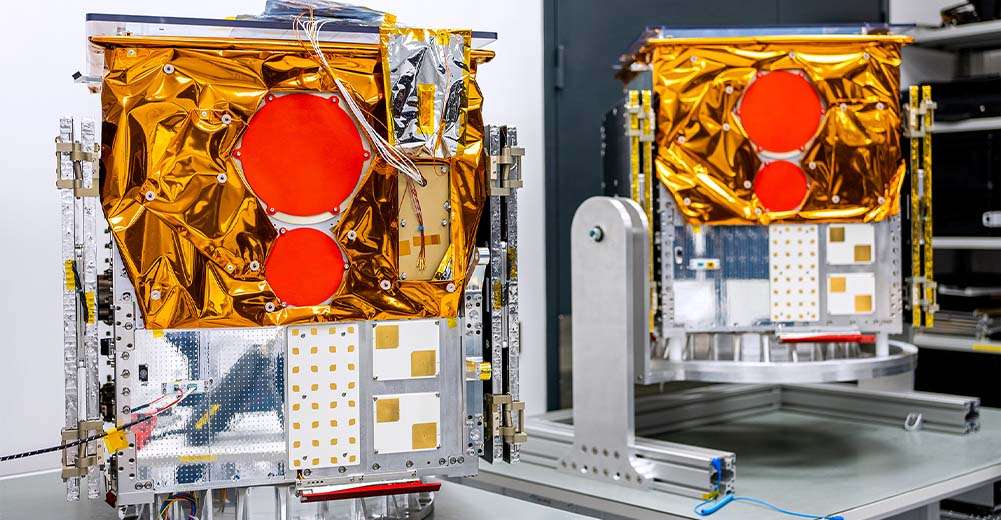

Microsatellite Bus MP42
15" ESPA-class microsatellite platform. Up to 70 kg payload, 150 kg S/C mass, 164 W payload power, 200 Mbps downlink. Three configurations for Earth observation and constellation missions.
Technical specifications
- Separation ring
- 15" ESPA-class
- Max S/C mass
- 150 kg
- Payload mass
- up to 70 kg
- Payload volume
- 625 × 460 × 370 mm
- Payload power (Light/Mid/Max)
- 164 / 161 / 157 W
- Downlink (Mid/Max)
- 200 Mbps
- Pointing accuracy (Max, AKE)
- 0.04°
About
NanoAvionics MP42 is a mid-range microsatellite platform for high-performance space applications. Uses a 15″ ESPA-class separation ring and accommodates payloads up to 70 kg. Suitable for Earth observation, remote sensing, communications, and constellation deployment with high data throughput.
| Specification | Light | Mid | Max |
|---|---|---|---|
| Payload power | 164 W | 161 W | 157 W |
| Payload mass | 70 kg | 70 kg | 70 kg |
| Payload volume | 625×460×370 mm | 625×460×370 mm | 625×460×370 mm |
| Max S/C mass | 150 kg | 150 kg | 150 kg |
| Data rates (up/down) | 1/3 Mbps | 1/200 Mbps | 1/200 Mbps |
| Pointing accuracy (AKE) | 4.31° | 4.31° | 0.04° |
| Separation ring | 15″ ESPA | 15″ ESPA | 15″ ESPA |
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
