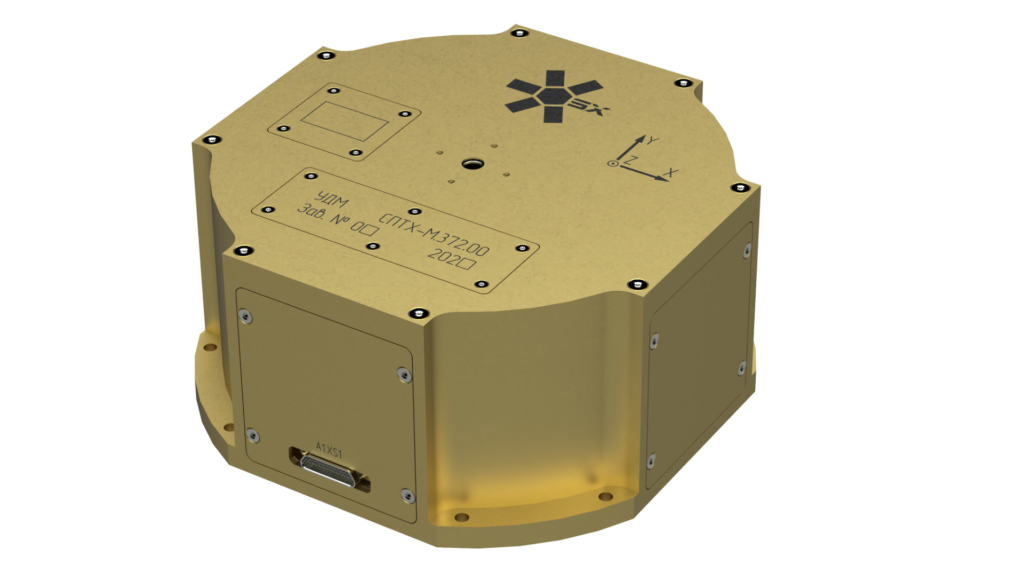

Reaction wheel
SPUTNIX
A control flywheel motor (CFM, SX-SBOX-RWH-50-2.0-01) generating control torque via rotor acceleration/deceleration for larger satellite platforms.
Typed specifications4 values
Discloses 2 of 10 fields engineers filter by in this category (category median 5).
- Mass
- 3 200 g as published, mode unspecified · vendor page (catalogue a
- Envelope (L×W×H)
- 160 x 160 x 80 (without fasteners) mm product page
- Max torque
- 50 mN·m as published, mode unspecified · vendor page (catalogue a
- Supply voltage
- 22–34 V as published, mode unspecified · vendor page (catalogue a
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Dimensions
- 160 x 160 x 80 (without fasteners) mm
- Mass
- 3.2 kg
- Power voltage
- 22-34 (without galvanic isolation)
- Peak power consumption, wt
- 43
- Power consumption, wt
- 10
- Duplicated interfaces
- CAN2B
- Maximum control torque, nmax
- 0.05 Nm
- Maximum kinetic moment, hmax
- 2 Nms
About
The control flywheel motor (CFM) is designed to create a control mechanical torque due to acceleration and deceleration of the rotor speed. It is SPUTNIX’s own development, ECSS-compatible, low cost, light weight and low power, adapted to customer requirements, using unified electrical, information and mechanical interfaces.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
