Reaction Wheels — Space Hardware Marketplace

MicroWheel 200

• Momentum0.18 Nms
• Torque30 mNm
• Mass< 0.94 kg

The MicroWheel 200 (MW 200X) is a reaction wheel torque actuator and angular momentum storage device for mini-satellites…

MicroWheel 1000

• Momentum1.1 Nms
• Torque30 mNm
• Mass< 1.44 kg

The MicroWheel 1000 (MW 1000X and MW 1000DX) is a reaction wheel torque actuator and angular momentum storage…

ADCS for SmallSats

The TensorADCS Series for smallsats extends attitude control capability to satellites from 30 kg to 1000 kg, incorporating…

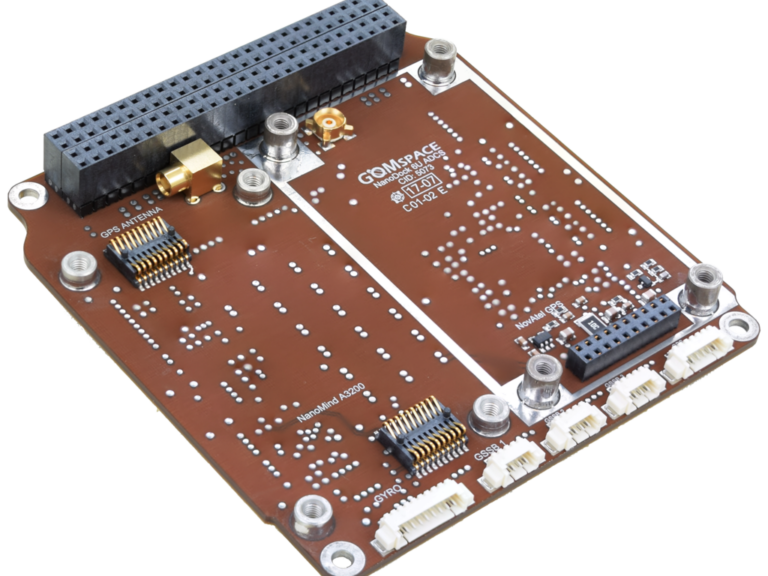

NanoDock ADCS-6

• Operating temperature-40 °C to +85 °C
• InterfaceI2C, SPI, CAN, RS422, USB, UART

The GomSpace NanoDock ADCS-6 is designed to be a component in a complete ADCS system, providing a physical…

340 mNms Momentum Wheel

• Angular momentum340 mNms
• First flight2020
• ApplicationLow-orbit small satellites

Momentum wheel with 340 mNms angular momentum for larger small satellites.

50 mNms Momentum Wheel

• Angular momentum50 mNms
• First flight2020
• ApplicationLow-orbit small satellites

Momentum wheel with 50 mNms angular momentum for small satellite attitude control.

15 mNms Momentum Wheel

• Angular momentum15 mNms
• First flight2020
• ApplicationLow-orbit small satellites

Miniature momentum wheel with 15 mNms angular momentum for small satellite attitude control.

Reaction Wheels

• Torque0.015 Nms
• Torque (2)16.0 Nms

Blue Canyon Technologies' ultra-low disturbance reaction wheels deliver long-life performance and vibration isolation features, supporting missions from very…

Reaction Wheels

• Satellite compatibility (Light Series)Optimised for plateforms from 10 to 200 kg
• Angular momentum (Light Series)From 20 mNms to 2 Nms
• Operational lifetime (Light Series)Minimum 8 years in LEO

Comat reaction wheels are designed for detumbling, pointing control, and agile attitude maneuvers, providing long lifetime and reliable…

RW-1Nms

A high-fidelity reaction wheel designed for imaging satellites, offering exceptional platform stability and precise control with minimal disturbance…

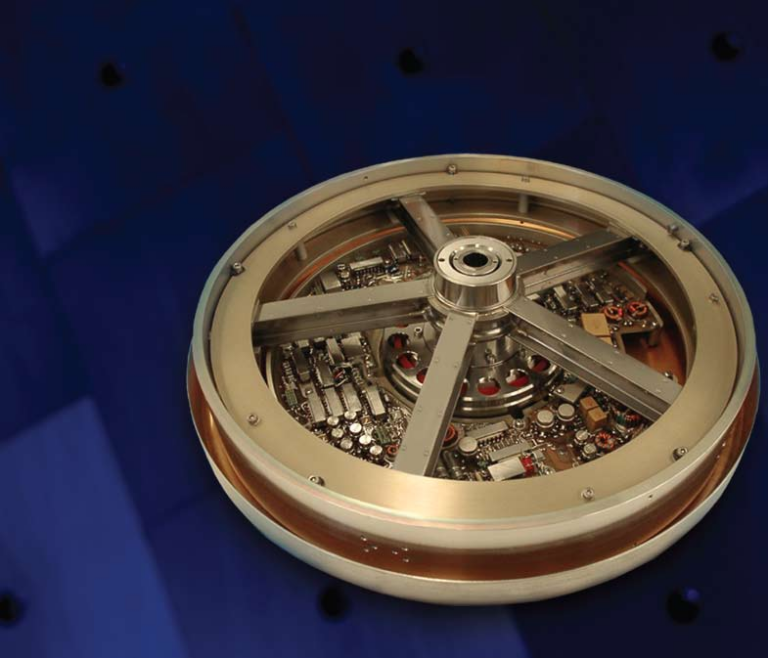

Teldix High Motor Torque Momentum and Reaction Wheels

• Wheel drive electronics integration14 to 68 Nms
• Angular momentum storage capacity0.04 to 68 Nms
• Supported spacecraft mass range30 kg to 7,000 kg

Collins Aerospace's Teldix space wheels are high motor torque momentum and reaction wheels with integrated wheel drive electronics,…

RSI 4-75/60 Momentum and Reaction Wheel

Compact TELDIX momentum/reaction wheel with integrated wheel drive electronics for small satellite attitude control, 0.04-4 Nms class.

TELDIX RSI 68 Momentum and Reaction Wheels

• Momentum range14 to 68 Nms
• WdeInternal Wheel Drive Electronics
• Target platformSatellites 1,500–5,000 kg

High-capacity TELDIX momentum and reaction wheels with internal WDE at 14 to 68 Nms, for large satellites weighing…

TELDIX RSI 45 Momentum and Reaction Wheels

• Momentum range15 to 45 Nms
• WdeIntegrated Wheel Drive Electronics
• Target platformSatellites 500–1,500 kg

TELDIX momentum and reaction wheels with integrated WDE at 15 to 45 Nms and high torque capability, for…

TELDIX RSI 12 Momentum and Reaction Wheels

• Momentum range4 to 12 Nms
• WdeIntegrated Wheel Drive Electronics
• Target platformSatellites 200–1,000 kg

Compact TELDIX momentum and reaction wheels with integrated wheel drive electronics at 4 to 12 Nms, for satellites…

Flywheel Aerospace Momentum Storage Systems

• TechnologyFlywheel momentum/energy storage
• ApplicationSatellite attitude control
• CountryIndia

Indian company developing flywheel-based momentum and energy storage systems for satellite attitude control applications.

Reaction Wheels (RW25)

Fine-pointing CubeSat reaction wheels with BLDC motor, integrated IMU, and CubeSat Space Protocol support, for 1U-6U platforms.

0.3 N·m·s Reaction Wheel

This reaction wheel is an actuator for satellite attitude control systems, designed to generate reaction control torque by…
