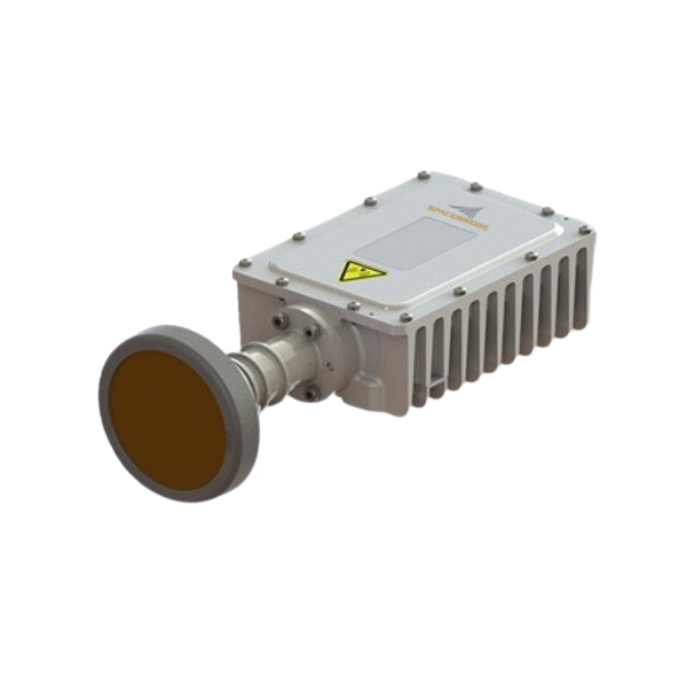

SBTR6030 OEM 3W Ku-Band VSAT Transceiver
SpaceBridge Inc.
A compact 3W extended Ku-band VSAT transceiver with integrated BUC, LNB, and OMT featuring fixed cross-polar TX/RX.
Typed specifications35 values
Discloses 6 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- Ku BUC RF output · datasheet p.2 Ku high band LNB input | Ku low band LNB input
- Mass
- 1 600 g with Feed Horn · datasheet p.2
- Frequency range
- 950–1 700 MHz BUC IF input · datasheet p.2 13 750–14 500 MHz BUC RF output | 1 100–2 150 MHz LNB IF output, high band | 950–1 950 MHz LNB IF output, low band | 11 700–12 750 MHz LNB RF input, high band +4
- Envelope (L×W×H)
- 159 x 96.20 x 52 mm without Feed Horn · datasheet p.2
- TX RF output power
- 3 W nom. · operational output power at P1dB, typical · datasheet p.2 3 W BUC operational output at P1dB
- Supply voltage
- 12–30 V BUC supply · datasheet p.2 10–26 V LNB supply
- Power consumption
- 3 W product page 24 W BUC Supply Current at P1dB (calculated from 1.0 A at 24V) | 2.4 W LNB Supply Current (calculated from 100 mA at 24V)
- Operating temperature
- -40–60 °C datasheet p.2
- Function
- transceiver datasheet p.1
- Link use
- ground terminal VSAT outdoor unit · datasheet p.1
- Link protocol
- other VSAT · datasheet p.1
- RF connector
- other 75 Ohm, F-type (Receptacle) · datasheet p.2 F F-type (Receptacle), 75 Ohm
- Connector
- F-type (Receptacle), 75 Ohm datasheet p.2 F-type (Receptacle) 75 Ohm
- RF gain
- 55 dB nom. · BUC conversion gain typical · datasheet p.2 52–58 dB BUC conversion gain min-max | 50–62 dB LNB conversion gain min-max | 56 dB nom. · LNB conversion gain typical
- Noise figure
- 0.9 dB nom. · LNB typical, TX on · datasheet p.2 1 dB max · LNB, TX on
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Buc frequency range (Extended Ku)
- 13.75-14.5 GHz
- Buc frequency range (Standard Ku variant)
- 14.00-14.50 GHz
- Lnb frequency range
- 10.70-12.75 GHz
- Output power
- 3 W
- Polarization
- Fixed cross-polar TX/RX
- Enclosure rating
- IP67
- Compliance
- CE/RED, RoHS-2, EN 301428, FCC 47 CFR 15/25
- Compatible antenna size
- Up to 1.2 m
About
The SBTR6030 is an OEM Ku-band VSAT transceiver integrating a BUC, LNB, and OMT in one compact, durable housing with high thermal margin and fixed cross-polar TX/RX operation. The BUC covers the extended Ku-band (13.75-14.5 GHz; a standard-band 14.00-14.50 GHz variant is also offered) using a constant-gain architecture with a low-phase-noise local oscillator and external reference support, while the LNB spans the full 10.70-12.75 GHz range using a dual-band PLL design. It is IP67-rated for outdoor water protection, CE/RED and RoHS-2 compliant, and meets EN 301428 and FCC 47 CFR 15/25 requirements for antennas up to 1.2 m. It is one of four models in the family: SBTR5015 (1.5W standard-Ku), SBTR6015 (1.5W extended-Ku), SBTR5030 (3W standard-Ku), and SBTR6030 (3W extended-Ku), intended for compact OEM VSAT terminal integration.
