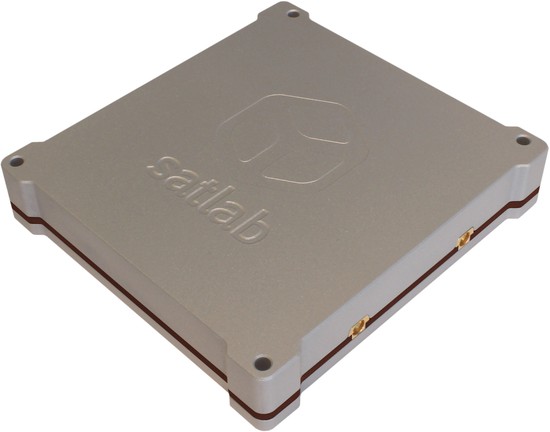

SRS-3 Full-duplex S-band Transceiver
Satlab A/S
Full-duplex, low-power S-band transceiver for TM & TC on micro- and nanosatellites, with TRL 9 and over 100 units delivered worldwide.
Typed specifications64 values
Discloses 11 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- S RX · datasheet p.1 S TX
- Mass
- 190 g datasheet p.1
- Frequency range
- 2 025 MHz min · Receiver · datasheet p.1 2 200 MHz min · Transmitter | 2 110 MHz max · Receiver | 2 290 MHz max · Transmitter | 2 025–2 110 MHz RX +1
- Envelope (L×W×H)
- 87.0 mm × 93.0 mm × 17.0 mm datasheet p.1
- TX RF output power
- 0.1 W min · adjustable 20 dBm to 30 dBm, with ALC · datasheet p.1 1 W max · adjustable 20 dBm to 30 dBm, with ALC | 0.1–1 W
- Data rate
- 128 kbps max · RX bit rate (1 to 128 kbps) · datasheet p.17 512 kbps max · TX bit rate (1 to 512 kbps)
- RX sensitivity
- -107 dBm <1 % PER, 128 kBd, BT=0.5 · datasheet p.1
- Modulation
- GMSK datasheet p.1
- Supply voltage
- 5 V min · datasheet p.1 40 V max | 5–40 V
- Power consumption
- 5 W nom. · Full-duplex transmit and receive, 30 dBm output · datasheet p.1 0.185 W Additional input power for Ethernet enabled | 0.11 W Additional input power for RS-422 enabled | 5 W Full-duplex transmit and receive | 0.55 W Idle/Awaiting frames +1
- Data interface
- CAN datasheet p.1 UART EGSE Console | RS-422 | Ethernet
- Operating temperature
- -40–85 °C RX · datasheet p.1 -40–70 °C TX
- Radiation tolerance (TID)
- 20 krad board level · datasheet p.13
- Function
- transceiver datasheet p.1
- Link use
- TT&C TM & TC · datasheet p.1
- Link protocol
- CSP datasheet p.1 CCSDS CCSDS 131.0-B-3 TM Synchronization and Channel Coding | IP (Ethernet over RF) IP traffic forwarded between space link and satellite IP network | IP (Ethernet over RF)
- RF connector
- SMP RX, Amphenol SMP-MSFD-PCE-1 full detent · datasheet p.14 SMP TX, Amphenol SMP-MSFD-PCE-1 full detent
- Power draw, receive
- 0.55 W nom. · Idle/Awaiting frames · datasheet p.1
- Power draw, transmit
- 5 W nom. · Full-duplex transmit and receive, 30 dBm output · datasheet p.1
- Connector
- Amphenol coaxial SMP datasheet p.3 Harwin Gecko
- Survival temperature
- -40–85 °C datasheet p.15
- Random vibration
- 14.1 g RMS datasheet p.13
- Flight heritage
- 2 018 datasheet p.13
- Satellite class
- CubeSat datasheet p.1 nanosat 1-10 kg micro- and nano-satellites | microsat 10-100 kg micro- and nano-satellites | smallsat 100-500 kg
- Duplex
- full datasheet p.1
- Channel coding (FEC)
- Reed-Solomon (255,223) · datasheet p.10 concatenated RS + convolutional CRC + RS + CC | convolutional (Viterbi) r=1/2, constraint length 7
- Encryption
- AES-256-GCM datasheet p.1
- Frequency tunable in orbit
- yes transmit and receive frequencies adjustable on-orbit · datasheet p.1
- Board format
- CubeSat Kit bus CubeSat Kit form factor compatible aluminum enclosure · datasheet p.1
- Noise figure
- 2 dB nom. · receiver, typ · datasheet p.17
- Additional power (option)
- 0.185 W nom. · additional for Ethernet enabled · datasheet p.16 0.185 W Additional input power for Ethernet enabled | 0.11 W Additional input power for RS-422 enabled | 0.11 W nom. · additional for RS-422 enabled
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Tx frequency range
- 2200–2290 MHz
- Tx symbol rate
- 9.6–512 kBd
- Tx output power
- Adjustable 20–30 dBm with ALC
- Rx frequency range
- 2025–2110 MHz
- Rx symbol rate
- 9.6–128 kBd
- Rx sensitivity
- -107 dBm (<1 % PER, 128 kBd, BT=0.5)
- Modulation
- GMSK
- Supply voltage
- 5–40 V
- Power — awaiting frames
- 550 mW (5 V, 20 °C)
- Power — full-duplex tx/rx at 30 dbm
- 5.0 W
- Operating temperature (RX)
- -40 °C to +85 °C
- Operating temperature (TX)
- -40 °C to +70 °C
- Dimensions
- 87.0 × 93.0 × 17.0 mm
- Mass
- 190 g
- TRL
- 9 (flight heritage since 2019)
About
The Satlab SRS-3 is a full-duplex, low-power S-band transceiver designed for telemetry and telecommand (TM & TC) on micro- and nanosatellites. The self-contained system operates on ITU space operations S-band frequencies with integrated transmit and receive filters, LNA and power amplifier, requiring only passive external antennas. The SRS-3 is highly configurable — transmit and receive frequencies, bit rates, output power and framing configurations are all adjustable on-orbit. GMSK modulation is used on both uplink and downlink. The SRS-3 has demonstrated reliable flight heritage since 2019, with over 100 units delivered to customers worldwide. With TRL 9, it is fully qualified and operational in its intended environment.
