SBMP090 0.9m Manpack
SpaceBridge Inc.

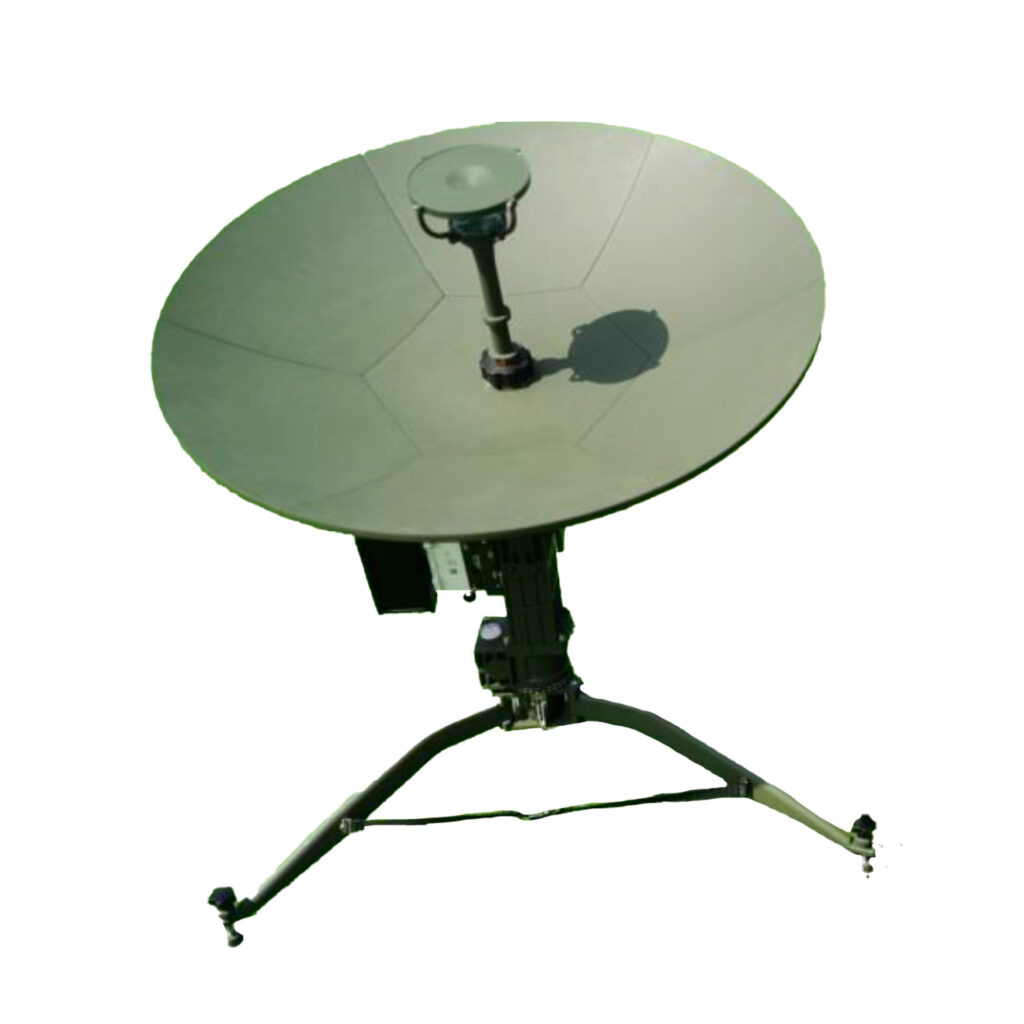

A 0.9m man-portable satellite antenna terminal built for challenging, mission-critical X, Ku (App30B-15), Kx, and Ka-band applications.
Typed specifications95 values
Discloses 6 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- Ku App30B-15, SBMP090UL · datasheet p.2 Ka SBMP090A | Ku SBMP090UL | Ku SBMP090UL, App30B-15 Ku | other SBMP090UX, band printed as Kx +2
- Peak gain
- 44.3 dBi min · Rx Gain mid-band (SBMP090A) · datasheet p.2 38.5 dBi min · Rx Gain mid-band (SBMP090UL) | 38.9 dBi min · Rx Gain mid-band (SBMP090UX) | 35.1 dBi min · Rx Gain mid-band (SBMP090X) | 44.3 dBi min · SBMP090A Rx gain mid-band, ≥ +11
- Mass
- 17 000 g with 1 backpack · datasheet p.2 17 000 g with 1 backpack; excludes BUC, LNB, accessories | 13 000 g without packing | 13 000 g without packing; excludes BUC, LNB, accessories
- Frequency range
- 18 300 MHz min · Rx, SBMP090A · datasheet p.2 10 700 MHz min · Rx, SBMP090UL | 10 700 MHz min · Rx, SBMP090UX | 7 250 MHz min · Rx, SBMP090X | 27 500 MHz min · Tx, SBMP090A +27
- Envelope (L×W×H)
- 0.9 m product page
- Polarization
- Circular SBMP090A · datasheet p.2 Linear SBMP090UL | linear SBMP090UL and SBMP090UX | Linear SBMP090UX | Circular SBMP090X +1
- Antenna type
- Ring focus datasheet p.2 dual reflector (Cassegrain / Gregorian / ring-focus) reflector type: Ring focus, carbon fiber
- Operating temperature
- -40–60 °C datasheet p.2
- RF connector
- waveguide flange feed interface: WR112 (SBMP090X), WR75 (SBMP090UL, SBMP090UX)… · datasheet p.2 waveguide flange WR112, SBMP090X | waveguide flange WR28, SBMP090A | waveguide flange WR42, SBMP090A | waveguide flange WR75, SBMP090UL +1
- Survival temperature
- -50–70 °C datasheet p.2 -50–70 °C storage
- VSWR, max
- 1.3 SBMP090A · datasheet p.2 1.25 SBMP090UL | 1.25 SBMP090UX | 1.3 SBMP090X | 1.3 max · SBMP090A, ≤ 1.3:1 +3
- Reflector diameter
- 0.9 m reflector size · datasheet p.2
- Mounting
- manual pointing manpack; travel range Az ±180°, Elev 10° – 90° (0° - 90° optional), Pol ±90° (Ku-band only); packing 2 backpacks or 1 backpack datasheet p.2
- Isolation
- 85 dB min · SBMP090A isolation Tx to Rx, ≥ · datasheet p.2 25 dB min · SBMP090A XPD, ≥ | 85 dB min · SBMP090UL isolation Tx to Rx, ≥ | 35 dB min · SBMP090UL XPD, ≥ | 85 dB min · SBMP090UX isolation Tx to Rx, ≥ +3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Reflector size
- 0.9 m
- Mass
- 13.0 kg (without packing)
- Operating temperature
- -40°C - +60°C
- Frequency
- 7.9 – 8.4 GHz (Tx, X-band)
- Frequency (Rx, X-band)
- 7.25 – 7.75 GHz (Rx, X-band)
- Frequency (Tx, App30B-15 Ku-band)
- 12.75 – 13.25 GHz (Tx, App30B-15 Ku-band)
- Frequency (Rx, App30B-15 Ku-band)
- 10.7 – 11.7 GHz (Rx, App30B-15 Ku-band)
- Frequency (Tx, Kx-band)
- 13.75 – 14.5 GHz (Tx, Kx-band)
- Frequency (Rx, Kx-band)
- 10.7 – 12.75 GHz (Rx, Kx-band)
- Frequency (Tx, Ka-band)
- 27.5 – 31.0 GHz (Tx, Ka-band)
- Frequency (Rx, Ka-band)
- 18.3 – 20.2 GHz (Rx, Ka-band)
- Interface
- WR112 (X-band)
- Interface (App30B-15 Ku, Kx-band)
- WR75 (App30B-15 Ku, Kx-band)
- Interface (Ka-band)
- WR28 (Ka-band)
- Ingress protection
- IP67
About
The SBMP090 is a ruggedized manpack satellite antenna carried and deployed by one or two people on foot across rough terrain for rapid BLOS satellite connectivity in tactical and emergency scenarios. Like the SBFM120, it uses a carbon fiber reflector and support structure, engineered to shed rainwater even at high elevation angles. It delivers high gain with low sidelobe performance and complies with MIL-STD-188-164A and ITU-R S.580. The full antenna and RF assembly fits into a single backpack and is compatible with SpaceBridge’s ASAT and ESTELLA modem platforms. It is intended for isolated military tactical units and disaster-recovery/public-safety teams, supporting Communications-On-The-Pause operation across foot, vehicle, boat, ship, airplane, and helicopter transport.
