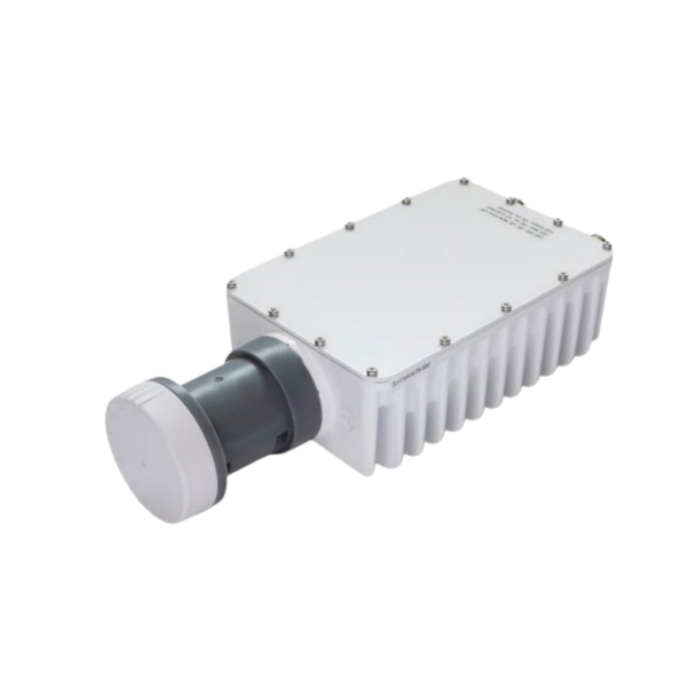

SBTR003UL 3W Lower Ku-band Transceiver
SpaceBridge Inc.
A 3W lower Ku-band VSAT transceiver providing a complete outdoor unit solution in a single box for demanding commercial satellite communications applications.
Typed specifications40 values
Discloses 6 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- Ku Rx · datasheet p.2 Ku Tx
- Mass
- 1 095 g datasheet p.2
- Frequency range
- 10 700 MHz min · Rx · datasheet p.2 12 750 MHz min · Tx | 11 700 MHz max · Rx | 13 250 MHz max · Tx | 10 700–11 700 MHz Rx Input frequency +1
- Envelope (L×W×H)
- 217 x 96.8 x 53.5mm datasheet p.2
- TX RF output power
- 2.82 W Tx output power @ P1dB, typical · datasheet p.2 3 W output power | 2.82 W typ. @ P1dB | 2.82 W nom. · P1dB typ
- Supply voltage
- 15 V min · datasheet p.2 24 V max | 15–24 V
- Power consumption
- 18 W Pout = 34dBm, typical · datasheet p.2 4 W max., 10MHz ref. off | 25 W max., Pout = 34dBm | 18 W typ., Pout = 34dBm | 4 W max · 10MHz ref. off +2
- Operating temperature
- -40–55 °C datasheet p.2
- Function
- transceiver datasheet p.1
- Link use
- ground terminal VSAT outdoor unit · datasheet p.1
- RF connector
- F IF Rx: F-type female · datasheet p.2 F IF Tx: F-type female | F Rx IF | F Tx IF | other Tx, F-type female
- Power draw, transmit
- 25 W max · Pout = 34dBm · datasheet p.2
- Connector
- IF Tx/Rx: F-type female datasheet p.2 F-type female Rx | F-type female Tx
- Survival temperature
- -40–85 °C datasheet p.2
- RF gain
- 57 dB nom. · RX conversion gain typ. · datasheet p.2 58 dB nom. · TX conversion gain typ.
- Noise figure
- 1.3 dB max · <1.3dB · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Polarization
- Linear orthogonal
- Cross pol isolation
- >30 dB
- Tx/rx isolation in rx band
- >80 dB
- Tx/rx isolation in tx band
- >30 dB
- Feed adaptation for antenna f/d
- 0.65
- Dimensions
- 217 x 96.8 x 53.5 mm
- Mass
- 1.095 kg
- Supply voltage
- 15 to 24VDC
- Power
- 25 W max.
- Operating temperature
- -40°C to +55°C
- Frequency
- 10.70 – 11.70 GHz
- Noise figure
- <1.3 dB
- Conversion gain
- 57 dB typ.
- Tx output frequency
- 12.75 – 13.25 GHz
- Spurious emission
- -60 dBc
About
The SBTR003UL is a 3W lower Ku-band transceiver designed as a complete VSAT outdoor unit solution housed in a single box, suited for the most demanding commercial satellite communications needs. It integrates an RF-Feed/OMT (orthomode transducer) section supporting linear orthogonal polarization, with cross-polarization isolation greater than 30dB. The unit provides high Tx/Rx isolation, exceeding 80dB in the receive band and greater than 30dB in the transmit band, ensuring minimal interference between transmit and receive signal paths. The feed is adapted for an antenna F/D ratio of 0.65, making it compatible with standard VSAT reflector geometries used in commercial Ku-band satellite ground terminals.
