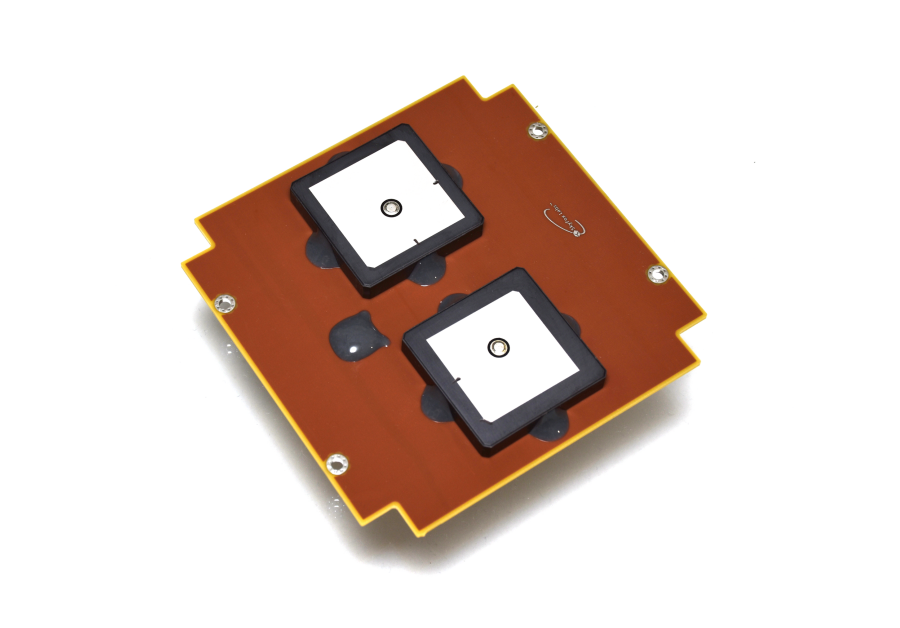

piPATCH-IoT-TC
SkyFox Labs s.r.o.
High-gain All-Band CubeSat IoT antenna covering the 868/915 MHz ISM/LoRa/SigFox bands, Z-face mount for Tuna-Can (Exopod Nova) deployers.
Typed specifications17 values
Discloses 3 of 10 fields engineers filter by in this category (category median 3).
- Mass
- 139 g datasheet p.2
- Envelope (L×W×H)
- 98x98x+13.5/-8 mm datasheet p.2
- Antenna type
- Active GNSS Patch antenna datasheet p.2
- Supply voltage
- 2.7 V min · datasheet p.2 5.5 V max
- Operating temperature
- -40 °C min · datasheet p.2 85 °C max | -40 °C min | 85 °C max
- Export status
- EU dual-use export outside the EU needs a licence from the Czech Ministry… · datasheet p.6
- RF connector
- MCX MCX-F · datasheet p.2
- Fixed or deployable
- fixed datasheet p.2
- Connector
- MCX-F datasheet p.2
- Survival temperature
- -55 °C min · datasheet p.3 100 °C max
- Satellite class
- CubeSat datasheet p.2 microsat 10-100 kg
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Type
- All Band CubeSat IoT/ISM/LoRa/SigFox Antenna
- Bands
- 868 MHz (center), 915 MHz (center)
- RF port
- Single RF port for TX and RX
- RF power handling
- up to 5 W RF output power
- Dimensions
- 98x98x(+7/-4) mm, low profile, MCX-F connector
- Mass
- 75 g (excluding mounting screws)
- Mounting
- Exopod Nova Tuna Can protrusion, 92 mm diameter, Z-face
- Dual use goods
- YES
- Hs code
- 8529.10.69
- Lead time
- 2-4 weeks + shipping
- Country of origin
- Czech Republic
About
The piPATCH-IoT-TC is a Space-Friendly, top-notch high-gain RHCP CubeSat antenna covering the majority of terrestrial IoT services operating on the coordinated 868 MHz and 915 MHz ISM/LoRa/SigFox bands via a single RF port, intended for the CubeSat Z side using Exopod Nova Tuna-Can installations. It has wide RF coverage with a uniform hemispherical radiation pattern, ideal for Nadir/Zenith-oriented satellites, ensuring orientation toward terrestrial IoT sources with a Z-face. It covers the full 868 MHz and 915 MHz bands used across Europe, the USA and Australia, handling up to 5 W RF output power. The module measures 98x98x(+7/-4) mm with a low profile and MCX-F connector, weighs 75 g, and fits the Exopod Nova Tuna-Can protrusion (92 mm diameter); mounting hole positions can be modified free of charge on request. RF coupling and EMI shielding are built in. Offered as Flight Model (FM) and unmarked OEM Flight Model variants.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
