Lodestone
Spacemanic s.r.o.

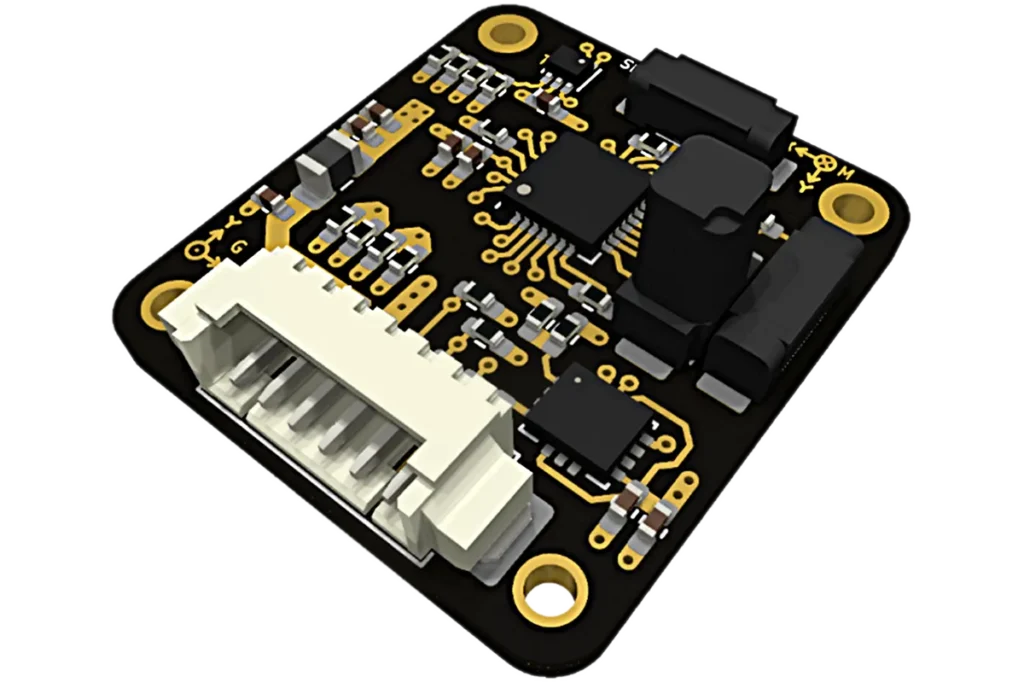

Lodestone is a compact, space-ready module integrating a 3-axis magnetometer, gyroscope, and accelerometer for attitude determination and motion sensing in nanosatellites and other space systems.
Typed specifications20 values
Discloses 6 of 11 fields engineers filter by in this category (category median 8).
- Mass
- 10 g max · datasheet p.4 10 g max · <10 g
- Measurement range
- 800 µT ±800 μT, magnetometer RM3100 · datasheet p.4 800 µT max
- Envelope (L×W×H)
- 22 x 20 x 6 mm datasheet p.4
- Resolution
- 13.33–50 nT printed as 20 up to 75 LSB/µT (1 LSB = 1/75…1/20 µT) · datasheet p.4
- Supply voltage
- 3.3 V nom. · datasheet p.4 -0.2–3.6 V power input, electrical ratings min/max | 3.3 V nom. · power supply
- Power consumption
- 0.01 W max · average · datasheet p.4 0.01 W max · peak
- Data interface
- I2C datasheet p.5
- Operating temperature
- -40 °C min · datasheet p.4 85 °C max | -40–85 °C
- Axes
- 3 datasheet p.4
- Output type
- digital common I2C bus · datasheet p.4
- Connector
- Molex PicoBlade 53261-0671 datasheet p.5
- Flight heritage
- on multiple missions (e.g. CroCube, Veronika and external customers) datasheet p.4
- Missions flown
- 2 datasheet p.4
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Flight heritage
- Yes
- ITAR free
- Yes
- Operating temperature
- -40°C to +85°C
- Dimensions
- 22 x 20 x 6 mm
- Mass
- < 10 g
- Power supply
- 3.3 V
- Power consumption
- < 10 mW (peak & average)
- Sensors
- Magnetometer Gyroscope Accelerometer Thermometer
- Interfaces (CSP v1)
- I2C
About
Lodestone is a compact, space-ready module designed to provide complementary attitude determination and motion sensing capabilities for nanosatellites and other space systems. It integrates a 3-axis magnetometer, gyroscope, and accelerometer into a single, compact unit with a unified interface. The product is ITAR free and has flight heritage. It is available in a standard version and a NEO (Near-Earth Object) version. The module operates within a temperature range of -40°C to +85°C, has small dimensions of 22 x 20 x 6 mm, and a mass of less than 10g. It requires a 3.3 V power supply and has a low power consumption of less than 10 mW (peak & average). The integrated sensors include a magnetometer, gyroscope, accelerometer, and thermometer. It communicates via an I2C interface (CSP v1).
