Amun
Spacemanic s.r.o.

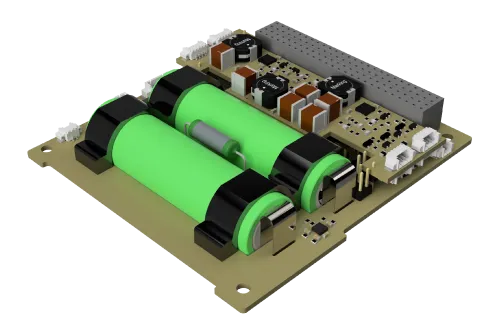

Amun is a reliable power management unit for small satellites, designed in the PC/104 form factor for 0.5U–2U CubeSats.
Typed specifications77 values
Discloses 12 of 14 fields engineers filter by in this category (category median 7).
- Mass
- 185 g datasheet p.6
- Total output power
- 43.2 W Max combined discharge power (7.2V * 6A) · datasheet p.7 43.2 W Max. combined current per regulator (calculated from 7.2V * 6A)
- Conversion efficiency
- 73 % Solar input system · datasheet p.6 73 % solar input system (MPPT) efficiency
- Envelope (L×W×H)
- 90.2 x 95.9 x 19.7 mm datasheet p.6 90.2 x 95.9 x 19.7 mm PC104
- Outputs (as printed)
- 1x VBAT, 1x 3.3V, 1x 5V, 4x 3.3/5V conf. datasheet p.6 1x 3.3 (fixed), 1x 5 (fixed), 4x 3.3/5 (conf.), 1x VBAT power outputs, V
- Supply voltage
- 7.2 V Battery · datasheet p.6
- Power consumption
- 0 W Typ. 3.3 V self-consumption · datasheet p.8 0 W Typ. 5 V self-consumption
- Data interface
- UART datasheet p.10 CAN CSP CAN | I2C CSP I2C | CAN CSP over CAN, up to 1 Mbit/s | I2C CSP over I2C, up to 400 kHz +6
- Operating temperature
- -40–85 °C datasheet p.6
- Unit type
- integrated EPS with battery MPPT solar input, battery management and regulated DC/DC outp… · datasheet p.4
- Board format
- PC/104 datasheet p.6
- Bus and outputs type
- hybrid (regulated rails + battery bus) 6 controllable regulated channels and one battery voltage out… · datasheet p.4
- Unregulated (battery) bus voltage
- 7.2 V nom. · typ. battery pack voltage, VBAT output · datasheet p.6 8.2 V max · max. battery voltage, VBAT output
- Regulated output voltages
- 7.2 V VBAT, typical · datasheet p.6 3.3 V 1x 3.3 V fixed output | 5 V 1x 5 V fixed output | 3.3 V 4x 3.3/5 V configurable outputs | 8.2 V VBAT, max +5
- Switchable outputs
- 6 6 controllable regulated channels (all power outputs implemen… · datasheet p.4
- Solar array inputs
- 3 MPPT regulator channels; 2 inputs per MPPT regulator · datasheet p.6
- Solar input voltage window
- 5 V solar input 5 V @ 500 mA · datasheet p.6 5.5 V max · maximum input voltage per MPPT regulator
- Max solar input power
- 2.75 W 5V @ 550mA · datasheet p.6 2.5 W calculated from 5 V @ 500 mA | 3.03 W calculated max solar input power from 5.5V and 550mA | 3.03 W Calculated maximum power from 5.5V and 550mA | 3.03 W Max input power calculated from 5.5V and 550mA +2
- Solar array regulation
- MPPT datasheet p.6
- Integrated battery energy
- 24 Wh 2S1P, NCR18650B · datasheet p.6
- Connector
- SAMTEC SSQ-126-03-G-D datasheet p.10 Molex PicoBlade 51021-0600 EGSE mates with (cable) | Molex PicoBlade 53398-0671 EGSE on module | Molex PicoBlade 51021-0200 RBF and DS mates with (cable) | Molex PicoBlade 53261-0271 RBF and DS on module +2
- Flight heritage
- on 10+ missions (e.g. LASARsat, CroCube, GRBBeta and external customers) datasheet p.4
- Satellite class
- CubeSat 1U class nanosatellites · datasheet p.4
- Missions flown
- 10 10+ missions · datasheet p.4
- Max current per output
- 6 A combined per regulator · datasheet p.8 4 A Max. current draw per output | 1.5 A recommended max current draw per channel | 1.5 A recommended max per channel | 6 A max · max combined current per regulator +1
- Battery voltage range accepted
- 7.2 V Typ. battery pack voltage · datasheet p.7 7.2–8.2 V
- MPPT
- yes datasheet p.6
- Max solar input current
- 0.5 A solar input 5 V @ 500 mA · datasheet p.6 0.55 A max · maximum input current per MPPT regulator
- Integrated battery cell configuration
- 2S1P battery type NCR18650B · datasheet p.6
- Battery heater control
- yes battery heater: manual or automatic · datasheet p.7
- Inhibit / RBF inputs
- 3 RBF, DS1, DS2 deployment switches · datasheet p.10
- Housekeeping telemetry
- Uptime, Battery voltage, Current draws, Battery current in/out, Solar input V/A/P reported data over software interface · datasheet p.6
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier18 lines, in the manufacturer's own wording
- Operating temperature
- -40°C to +85°C
- Dimensions
- 95.9 x 90.2 x 19.7 mm (0.2U)
- Mass
- 185 g
- Power outputs
- 1x fixed 3.3 V
- Power outputs (2)
- 1x fixed 5 V
- Power outputs (3)
- 4x configurable 3.3 V or 5 V
- Power outputs (4)
- 1x VBAT
- Battery configuration
- 2S1P
- Battery capacity
- 24 Wh
- Battery voltage
- Typical 7.2 V
- Battery voltage (max)
- Max. 8.2 V
- Thermal control
- Manual or automatic
- Interfaces (CSP v1)
- 1x I2C
- Interfaces (CSP v1) (2)
- 1x RS485
- Interfaces (CSP v1) (3)
- 2x UART
- Interfaces (CSP v1) (4)
- 1x CAN
- Flight heritage
- Yes
- ITAR free
- Yes
About
Amun provides reliable power management for small satellites, ensuring stable operation across mission-critical systems. It is designed in the PC/104 form factor, making it ideal for 0.5U–2U CubeSats and easily integrates into modular satellite platforms. The unit is efficient, reliable, and ready to fly, boasting ITAR-free status and flight heritage. It offers a range of power outputs including 1x fixed 3.3 V, 1x fixed 5 V, 4x configurable 3.3 V or 5 V, and 1x VBAT. The battery configuration is 2S1P with a capacity of 24 Wh and a typical voltage of 7.2 V (max. 8.2 V). Thermal control can be manual or automatic. It supports multiple interfaces (CSP v1) including 1x I2C, 1x RS485, 2x UART, and 1x CAN.
