AMOS SchoolSat
Spacemanic s.r.o.
SchoolSat is a hands-on 1U CubeSat educational kit built on an Arduino-compatible platform, teaching real satellite subsystems like EPS, Comm, DH, ADCS and Solar Panels for STEM programs and labs.
Typed specifications20 values
Discloses 2 of 7 fields engineers filter by in this category (category median 3).
- Envelope (L×W×H)
- 1U CubeSat (10 x 10 x 13.5 cm) product page
- Data interface
- I2C 1 × I2C on stack connector; 2 × I2C connectors · datasheet p.2 UART 2 × UART connectors | GPIO 7 × ADC or digital pins on stack connector | other ICSP programming connector | USB USB programming connector
- Lead time
- 1.38 months product page
- Regulated voltages for the payload
- 5 V stack connector (VBATT, 5V, 3V3) · datasheet p.2 3.3 V stack connector 3V3
- Onboard storage for payload data
- 32 GB max · storage (microSD card) · datasheet p.2
- Subsystems included
- battery 2 × 18650 Li-ion 3200 mAh · datasheet p.2 GNSS receiver GPS accuracy 2,5 m with 50 % CEP | OBC Main board | EPS PSU board | other RF module (band not stated; 20 dBm - 100 mW RF output) +3
- Connector
- Stack connector with 1 × I2C, 7 × ADC or digital pins, VBATT, 5V, 3V3; 2 × UART connectors; 2 × I2C connectors; USB and ICSP programming connectors; MicroSD card connector datasheet p.2
- Satellite class
- CubeSat educational kit: "Build your own CubeSat!" · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Lead time
- 6 weeks
- Dimensions
- 1U CubeSat (10 x 10 x 13.5 cm)
- Main board
- Arduino Nano, 32 GB storage
- Power board
- 2x Li-ion 3200 mAh batteries, 3.3 V, 5 V
- Sensor board
- 3.3 V, 5 V; GPS; 3-axis Gyroscope; 3-axis Accelerometer; 3-axis Magnetometer; Temperature; Pressure; Humidity
- Communication
- LoRa
- Export control
- ITAR free
About

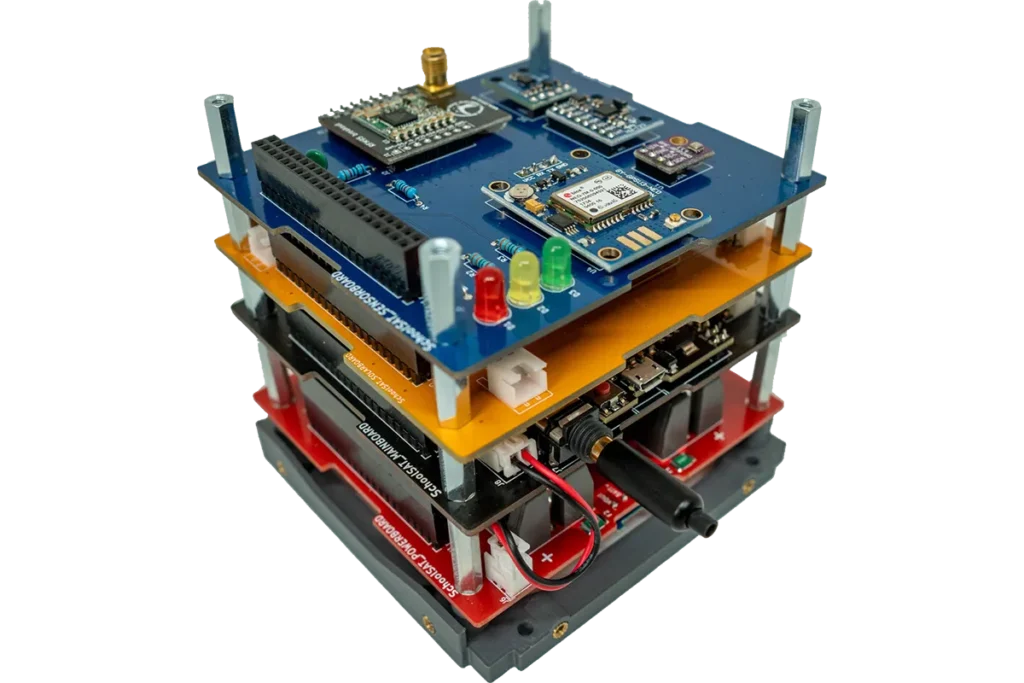

AMOS SchoolSat brings satellite engineering into the classroom. It is a hands-on nanosatellite kit designed for labs and STEM programs, letting students build and operate a functional 1U CubeSat-format satellite model. The kit is built on an Arduino-compatible platform and includes real subsystem boards mirroring an actual nanosatellite: a PSU (power supply) board, OBC (on-board computer) board, SOLAR Input board, and an RF & Sensor board, plus a companion Satellite Manager App for operation and data processing. Through building and operating SchoolSat, students learn 3D printing, assembly, programming, operating, and data processing skills. The order includes all boards and frame, a USB radio receiver, a full set of cables, default firmware, an SD card, a Remove-Before-Flight (RBF) plug, a manual, and shipping & packaging. The satellite measures 1U CubeSat form factor (10 x 10 x 13.5 cm). The main board uses an Arduino Nano with 32 GB of storage. The power board uses 2x Li-ion 3200 mAh batteries and supplies 3.3 V and 5 V rails. The sensor board also runs on 3.3 V and 5 V and integrates GPS, a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer, plus temperature, pressure, and humidity sensors. Communication is handled via LoRa. Lead time for the full kit is 6 weeks, and the product is marked ITAR free.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
