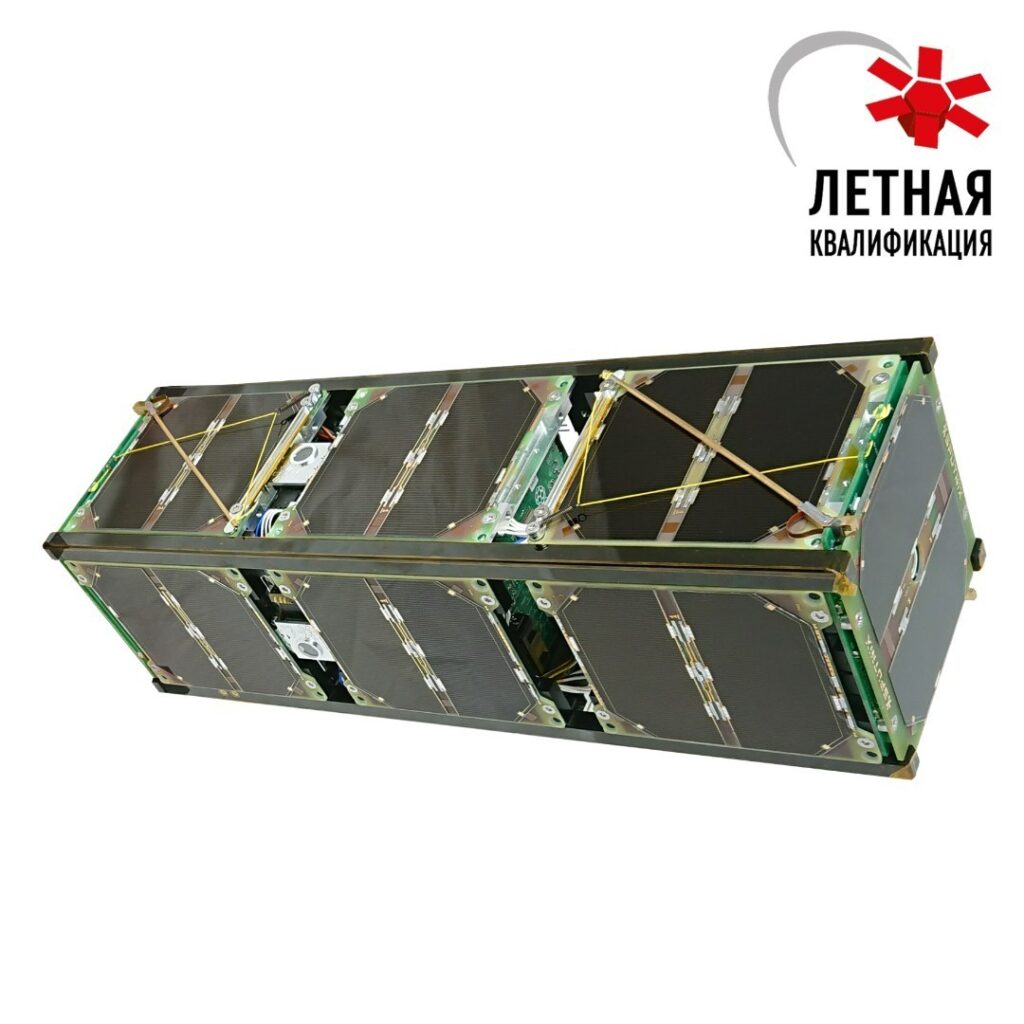

OrbiCraft-Pro 3U Flight (SXC3-GA)

Typed specifications28 values

Discloses 4 of 7 fields engineers filter by in this category (category median 3).

Mass

1.45 kg

max · mass assembled (w/o payload), not more than · datasheet p.4

Envelope (L×W×H)

100x100x340.5 mm

at rails (w/ deployment system pressed) · datasheet p.4 108x108x340.5 mm w/ springs pressed and antenna folded

Data interface

CAN

on-board interface CAN2.0 B · datasheet p.4

Operating temperature

-30–60 °C

operating temperature range · datasheet p.4

Form factor

3U

CubeSat 3U · datasheet p.2

Orbit

LEO

power figures stated for LEO · datasheet p.4

Max payload mass

2.6 kg

max · max mass of payload, SXC3 column of Table 1 (line-level figure) · datasheet p.2

Payload volume, U

1 U

min · printed as "1U+" (80x70x140 mm), Table 1 · datasheet p.2

Payload envelope (L × W × H)

80x70x140 mm

available volume for payload, not less than (see SXC ICD) · datasheet p.4

Power available to payload

1.5 W

max · average power available to payload on LEO, not more than (to … · datasheet p.4 16 W max · peak (max available capacity of payload), SXC3 column of Table 1

Regulated voltages for the payload

5 V

nom. · output voltage 5 V ±0.5 V; output current not more than 2 A · datasheet p.4

Battery capacity

39 Wh

min · battery capacity, not less than; Li-Ion 2S 5000 mAh, rated 7.4 V · datasheet p.4

Attitude control

other

B-DOT only (angular velocity sensor, magnetometer) · datasheet p.4

Payload data downlink rate

9.6 kbps

max · UHF radio channel 435-437 MHz, AX.25; 9600 bit/s default, 480… · datasheet p.4

Radio band

X

high-speed X-band radio link: "Included, option" (Table 1, SX… · datasheet p.2 UHF radio channel 435-437 MHz, FM, AX.25

Subsystems included

battery

battery capacity 39 Wh, Li-Ion 2S 5000 mAh (Table 3) · datasheet p.4 X-band downlink high-speed X-band radio link: "Included, option" (Table 1, SX…  |  solar arrays number of solar panels: 14 pcs. (Table 3)  |  OBC on-board computer SXC-MB-04 shown in SXC3 layout (Picture 2)  |  ADCS orientation and stabilization algorithms and sensors rows (Ta…  +1

Max satellite wet mass

4 kg

max · max mass allowed (w/ payload), not more than · datasheet p.4

Satellite class

CubeSat

CubeSat nanosatellite platform line · datasheet p.1 nanosat 1-10 kg nanosatellite platform line

Form factor, U (number)

3 U

CubeSat 3U · datasheet p.2

Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer. Report a wrong value
