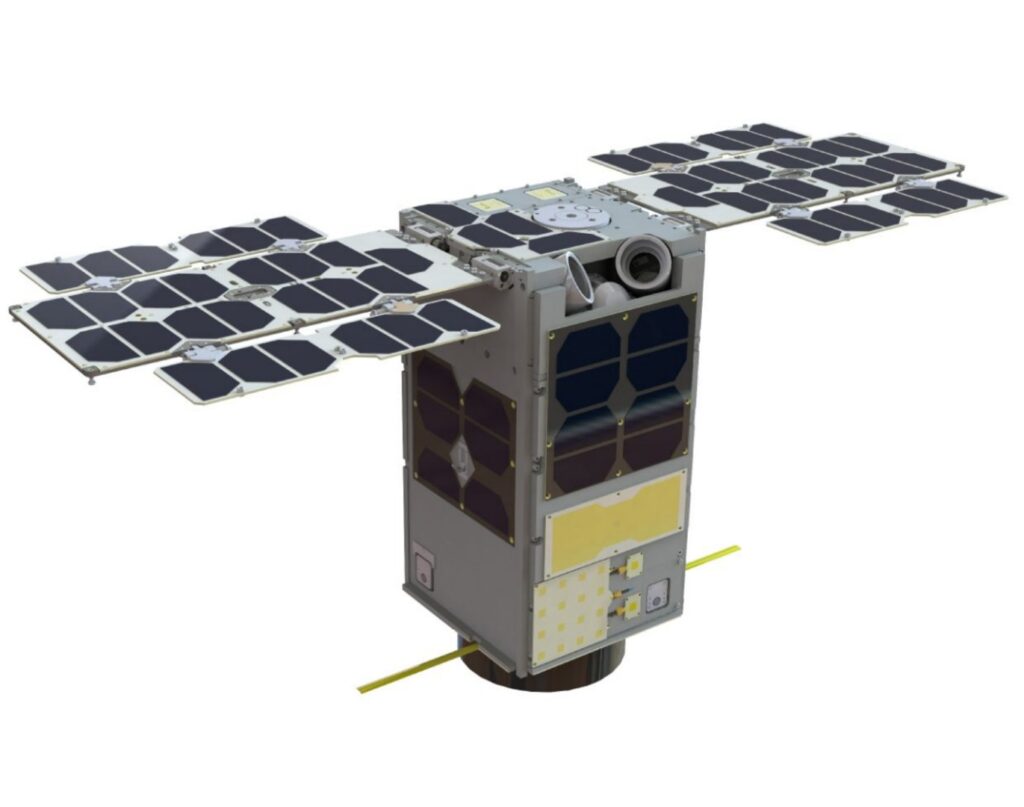

SG3 CubeSat Platform (4U / 16U)

Typed specifications23 values

Discloses 2 of 7 fields engineers filter by in this category (category median 3).

Envelope (L×W×H)

226 × 226 × 454

product page

Data interface

CAN

product page

Form factor

2U

SG302 (SG3-02) · datasheet p.16 3U SG303; SG3-04 printed as "CubeSat 3U/4U" on slides 9 and 17  |  4U SG304 (SG3-04)  |  8U SG308 (SG3-08)  |  16U SG316 (SG3-16)

Payload volume, U

14 U

max · SG3 line "2U to 16U, Up to 14U for payload" (slide 8; slides … · datasheet p.8 1.5 U max · SG3-02 (CubeSat 2U), "Up to 1.5U for payload"  |  3 U max · SG3-04 (CubeSat 3U/4U), "Up to 3U for payload"  |  7 U max · SG3-08 (CubeSat 8U), "Up to 7U for payload"  |  15 U max · SG3-16 (CubeSat 16U), "Up to 15U for payload"

Propulsion

optional

"Поддержка двигательной установки" (propulsion support) among… · datasheet p.13

Radio band

X

"1Gbit X-band" (slide 8) · datasheet p.8 S development goals: X/S-band transmitter, S-band receiver

Rail standard

custom

SG303 and SG302: compatible with ТПК 12U (transport-launch co… · datasheet p.16

Flight heritage

95% of EEE parts flown on SXC platforms (more than 80 spacecraft, more than 1000 devices, about 4 million hours of active operation in LEO 350-800 km); cable-network elements, reaction-wheel motors and SSD drives already flight-tested (slide 19). Heritage

datasheet p.18

Satellite class

CubeSat

спутниковая платформа формата CubeSat · datasheet p.1

Form factor, U (number)

2 U

SG302 · datasheet p.16 3 U SG303  |  4 U SG304  |  8 U SG308  |  16 U SG316

Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer. Report a wrong value
