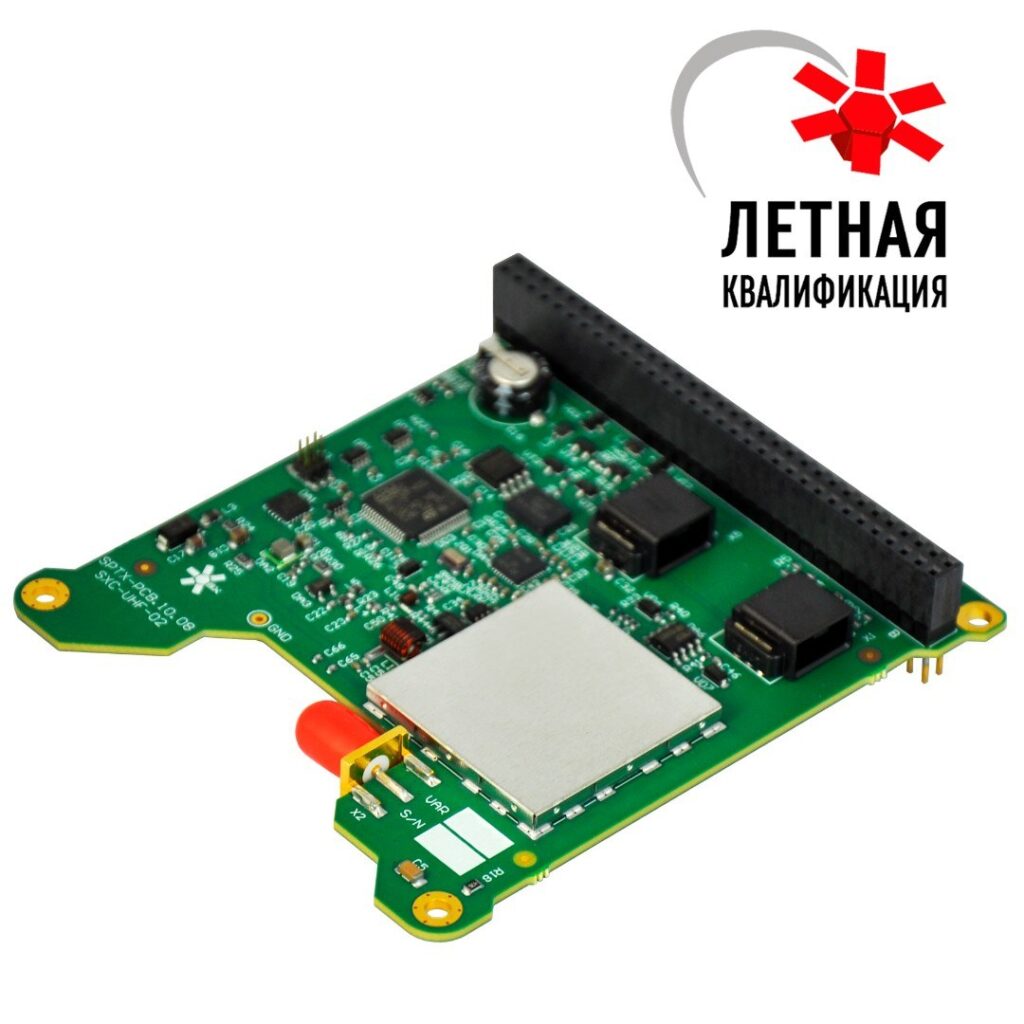

SXC-UHF-02 UHF Transceiver
SPUTNIX
OrbiCraft-Pro UHF-band transceiver on a PC104 board for the spacecraft electronics stack, with an SMA antenna connector and antenna-deployment interface. Supports AX.25 and USP (FEC) protocols.
Typed specifications3 values
Discloses 2 of 13 fields engineers filter by in this category (category median 3).
- Envelope (L×W×H)
- 87 × 93 × 13 mm product page
- RX sensitivity
- -119 dBm product page
- Modulation
- GMSK product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Type
- UHF transceiver (PC104 board)
- Dimensions (without PC104)
- 87 × 93 × 13 mm
- Mass
- 43 g
- Supply voltage
- 5–14 V
- Power consumption
- 3.5 W (TX) / 0.2 W (RX)
- Operating frequency
- 434–438 MHz (400–401 MHz option)
- Output power
- 30–33 dBm (1–2 W, adjustable)
- Modulation
- GMSK
- Data rate
- 2400–57600 bit/s
- Receiver sensitivity
- −119 dBm
- Protocols
- AX.25, USP (FEC)
- Interfaces
- CAN 2.0B, UART; RF SMA 50 Ω + antenna deployment
- Operating temperature
- −40 … +85 °C
About
OrbiCraft-Pro UHF-band transceiver on a PC104 board for the spacecraft electronics stack, with an SMA antenna connector and antenna-deployment interface. Supports AX.25 and USP (FEC) protocols.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
