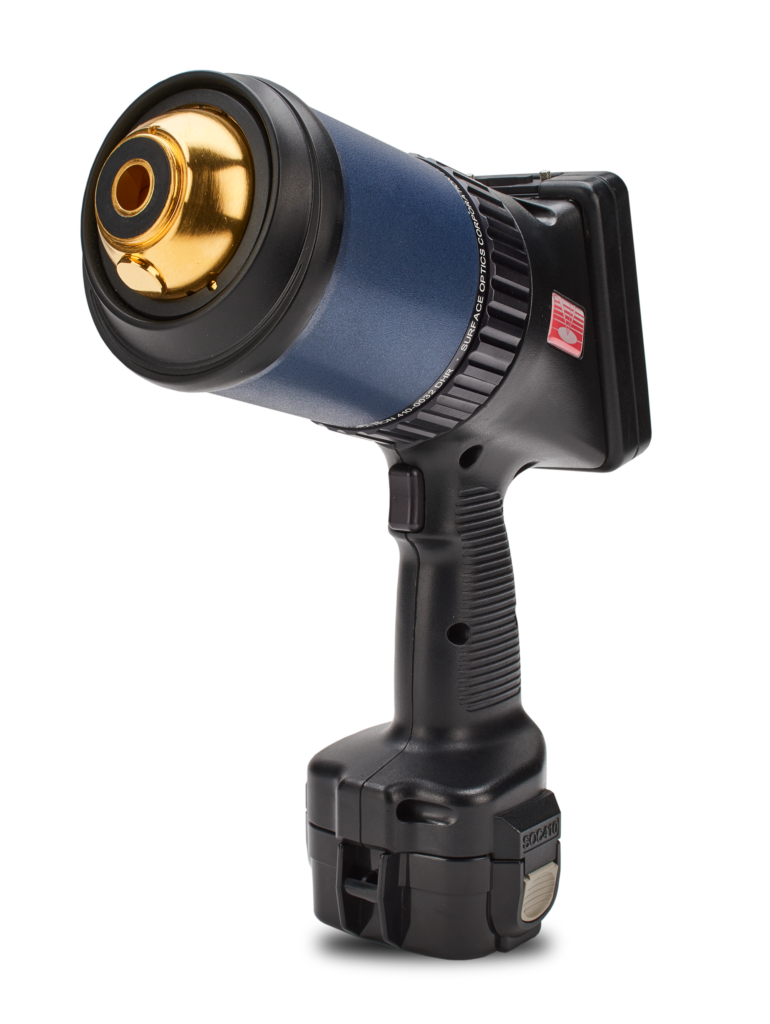

410-DHR Reflectometer
Surface Optics Corporation
A portable directional-hemispherical reflectometer that measures the integrated infrared surface reflectance of large objects in the field at two angles of incidence across six wavelength bands.
Technical specifications
- Measurement type
- Integrated directional-hemispherical reflectance
- Angles of incidence
- 20° and 60°
- Wavelength bands
- Six bands
- Spectral range
- 0.9 to 12 μm
- Interface
- SOC410-DHR touchscreen interface with guided calibration, sample identification, and measurement data display
- Method
- Integrated total reflectance in a band for a given angle of incidence
- Measured Value
- Absolute reflectance (0-1)
- Calculated Value
- In-band directional emissivity
- Accuracy
- +/- .03
- Repeatability
- ±.005 units
- Beam Spot Size
- 0.50 inches
- Measurement Time
- 10 sec
- Sample Size & Geometry
- Flat: ≥ 0.5 in. diameter Curved: 6 in. convex; 12 in. concave
- Warm Up Time
- 90 seconds
- Time Between Measurements
- 2 seconds
- Run Time
- 2 hours on one battery
- Battery Recharge Time
- 1 hour
- Weight
- 4.7 lbs
About
The 410-DHR Reflectometer is a product of collaboration between the U.S. Naval Air Systems Command and Surface Optics, with additional input from the Naval Research Lab (NRL) and the National Institute of Standards and Technology (NIST). It was developed to meet a broad need for a portable instrument capable of verifying the optical properties of large objects directly in the field. The 410-DHR measures the integrated surface reflectance of a surface at two angles of incidence (20° and 60°) across six wavelength bands spanning the 0.9 to 12 μm spectral range, covering near-infrared through mid/long-wave infrared. The instrument is paired with the SOC410-DHR touchscreen software interface, which simplifies analysis by providing guided calibration, sample identification, and measurement data display, making the device suitable for field-based inspection and verification workflows.
Documentation
- 410-DHR-Datasheet.pdf PDF source: surfaceoptics.com ↗
- 410-Series-Maintenance-Plan.pdf PDF source: surfaceoptics.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
