SOC-750 Midwave Infrared Hyperspectral Imager
Surface Optics Corporation
The SOC-750 is a real-time, military-grade MWIR hyperspectral imaging system combining a high-speed, high-sensitivity MWIR array with an imaging spectrometer for dynamic scene applications.
Typed specifications16 values
Discloses 4 of 14 fields engineers filter by in this category (category median 4).
- Envelope (L×W×H)
- 256 x 240 pixels x 42 bands product page
- Spectral bands
- 42 High Brightness configuration · datasheet p.2 64 High Resolution configuration
- Camera type
- hyperspectral datasheet p.1 MWIR midwave infrared, 2.0 to 5.0 micron | hyperspectral
- Spectral range
- 2 000–5 000 nm 2.0 to 5.0 micron region · datasheet p.1
- Focal length
- 1 000 mm lens option (IFOV 0.3 mr High Brightness / 0.2 mr High Resolu… · datasheet p.2 50 mm lens option (IFOV 0.6 mr High Brightness / 0.4 mr High Resolu…
- Detector
- InSb High Brightness, detector material Indium Antimonide · datasheet p.2 InSb High Resolution, detector material Indium Antimonide
- Frame rate
- 15 fps datasheet p.1
- Sensor format (pixels)
- 256 x 240 High Brightness, spatial pixels · datasheet p.2 512 x 512 High Resolution, spatial pixels
- Pixel pitch
- 30 µm High Brightness, detector pixel pitch · datasheet p.2 20 µm High Resolution, detector pixel pitch
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Spectral range
- 2-5 μm
- Cube acquisition/processing rate
- 11 cubes per second
- Cube dimensions
- 256 x 240 pixels x 42 bands
- Bit resolution
- 14-bit
- Configurations
- Two configurations available, differing in focal plane, spectral resolution, spatial resolution, temporal resolution, sensitivity, and maximum viewable radiance
- Processing
- On-the-fly hyperspectral processing with multiple matched filters and three spectral integrators
- Spectral resolution
- 93 nm
About

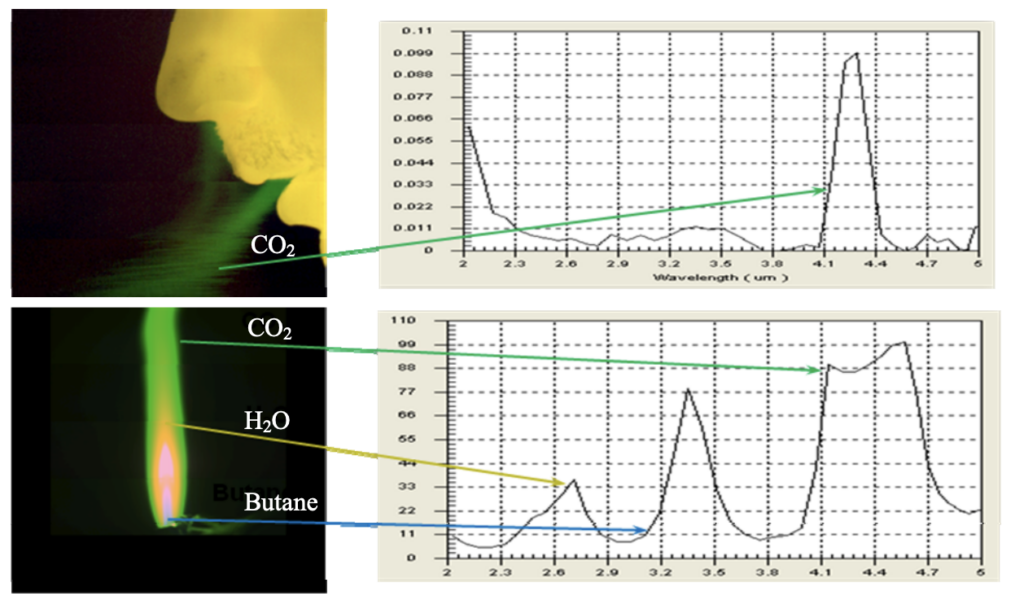

The SOC-750 is a real-time, military-grade midwave infrared (MWIR) hyperspectral imaging system comprising a very high-speed, high-sensitivity MWIR array and an imaging spectrometer, designed for dynamic scene applications. It can acquire and process spectral imagery at a rate of 11 cubes (256 x 240 pixels x 42 bands) per second at 14-bit resolution, with lower spatial resolution cubes acquirable at higher speeds. The system covers the 2-5 micron spectral range and is offered in two configurations, using a different focal plane and trading off spectral resolution, spatial resolution, temporal resolution, sensitivity, and maximum viewable radiance. For real-time applications such as machine vision, biological screening, and chemical leak detection that require immediate feedback, the SOC-750’s unique processor performs on-the-fly hyperspectral processing at supercomputer speeds, overcoming the processing bottleneck inherent in most hyperspectral processing systems. With multiple matched filters examining incoming data and three spectral integrators, the SOC-750 processor supports many common processing challenges requiring high spectral resolution.
