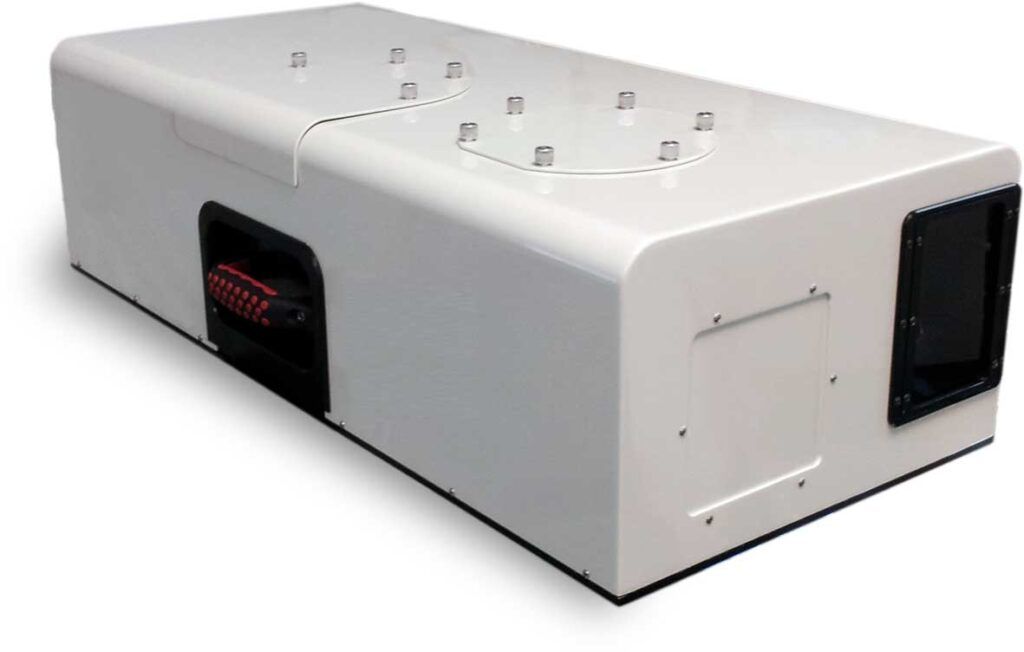

SOC-760 VNIR-SWIR Hyperspectral Imager
Surface Optics Corporation
Portable dual-band (VNIR/SWIR) hyperspectral imager, 0.4-2.5 micron, 650 co-registered bands.
Typed specifications34 values
Discloses 8 of 14 fields engineers filter by in this category (category median 4).
- Mass
- 27 215.5 g converted from lb · datasheet p.2 27 215.52 g weight
- Envelope (L×W×H)
- 20.5” x 8.5” x 6.5” datasheet p.2 20.5" x 8.5" x 6.5" size, inches
- Sensor resolution
- 640 Camera Resolution · datasheet p.2 640 pixels vertical, up to 2048 pixels horizontal Spatial Resolution | 640 Mpx vertical | 2 048 Mpx max · horizontal
- Spectral bands
- 650 datasheet p.2
- Supply voltage
- 115 V nom. · datasheet p.2 115 VAC input
- Power consumption
- 50 W nominal · datasheet p.2 50 W 115 VAC | 50 W nom.
- Data interface
- USB datasheet p.2 USB USB 3.0
- Camera type
- hyperspectral datasheet p.1 SWIR SWIR channel, 1000-2500 nm | NIR VNIR channel, 400-1000 nm
- Scan mode
- whiskbroom whiskbroom scan mirror, stepped mirror (one step per exposure) · datasheet p.1
- Field of view
- 12.5 ° vertical; IFOV 340 µr · datasheet p.2
- Spectral range
- 1 000–2 500 nm SWIR channel · datasheet p.2 400–1 000 nm VNIR channel
- Detector
- InGaAs (SWIR) SWIR channel · datasheet p.1 InSb SWIR channel, cooled InSb focal plane array (SBF178)
- Warranty
- 1 years datasheet p.2 12 years warranty 12 months
- Bit depth
- 14 bit A/D resolution · datasheet p.2
- Frame rate
- 120 fps datasheet p.2 120 fps max · max frame rate
- Sensor format (pixels)
- 640 pixels vertical, up to 2048 pixels horizontal spatial resolution · datasheet p.2
- Pixel pitch
- 20 µm datasheet p.2
- Radiometric calibration
- yes calibration formats: absolute spectral radiance, absolute wav… · datasheet p.2
- Lens mount
- integrated optics integrated VNIR and SWIR lens (one for each channel) · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier14 lines, in the manufacturer's own wording
- Spectral regions
- VNIR/SWIR
- Range
- 400-2500 nm
- Spectral resolution
- VNIR 2.5 nm / SWIR 5 nm
- Bands
- 650
- Spatial resolution
- 640 px vertical, up to 2048 px horizontal
- Pixel size
- 20 micron
- FOV (vertical)
- 12.5 degrees
- Max frame rate
- 120 Hz
- A/d resolution
- 14-bit
- Interface
- USB 3.0
- Output formats
- SOC, BIL, BSQ, BIP, ENVI
- Dimensions
- 20.5in x 8.5in x 6.5in
- Mass
- 60 lb
- Power
- 50 W, 115 VAC
About
The SOC-760 is a portable, dual-band, single-field-of-view hyperspectral imaging system covering 0.4-2.5 micron and capturing 650 co-registered bands into a single data cube. It targets lab and ground-based remote-sensing applications and supports open data formats and third-party analysis software compatibility.
