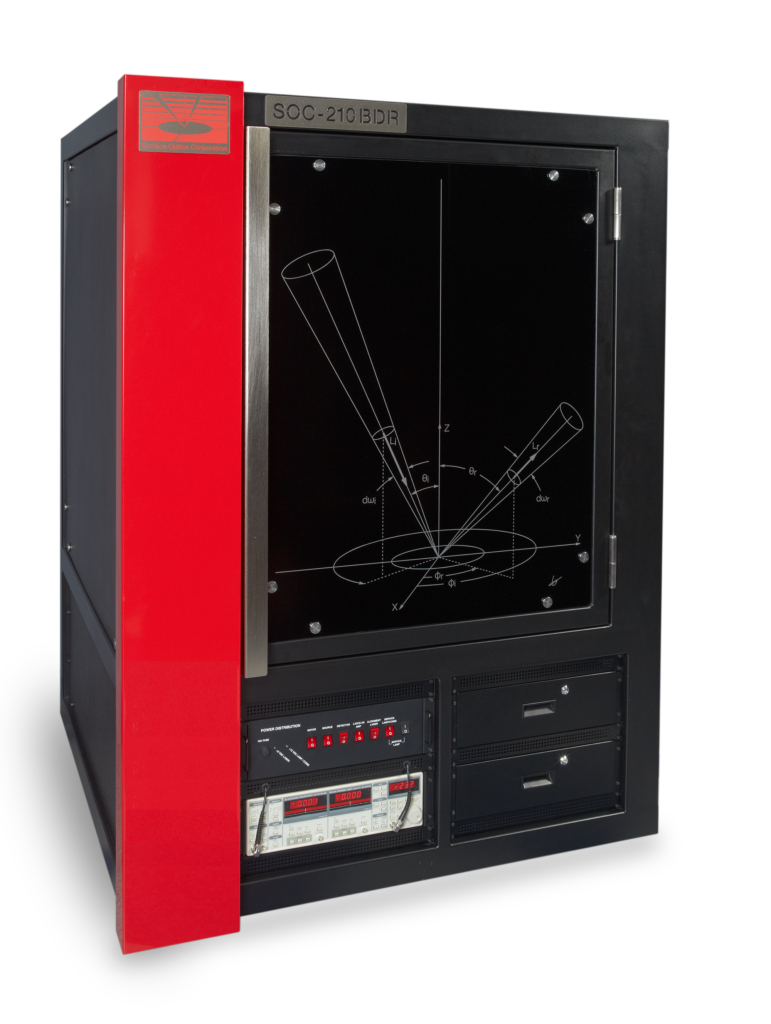

SOC-210 Bidirectional Reflectometer
Surface Optics Corporation
The SOC-210 BDR is an automated goniometer designed for precise and comprehensive measurement of Bidirectional Reflectance Distribution Function (BRDF) and Bidirectional Transmittance Distribution Function (BTDF) of various materials across a spectral range of 0.35 to 14μm.
Key figurescomparable across the catalogue
- Largest dimension
- 1,905 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Spectral range
- 0.35-14 micron
- Incident polar angle
- 0-85 degrees
- Incident azimuth angle
- 0-360 degrees
- Reflected polar angle
- 0-85 degrees
- Reflected azimuth angle
- 0-360 degrees
- Sample size
- 1-inch dia standard, up to 4-inch square max
- Detectors
- Si (0.4-1.1 micron), InGaAs (1.0-1.7 micron), InSb (2.5-5.0 micron), MCT (7.0-14.0 micron)
- Noise floor
- < 10^-3 ster^-1
- Dimensions
- 53in W x 53in D x 75in H
- Power
- 120VAC 10 A
- Automation
- Full PC control of incident/reflected polar and azimuth angles, aperture, ND filter wheel, sample stage
