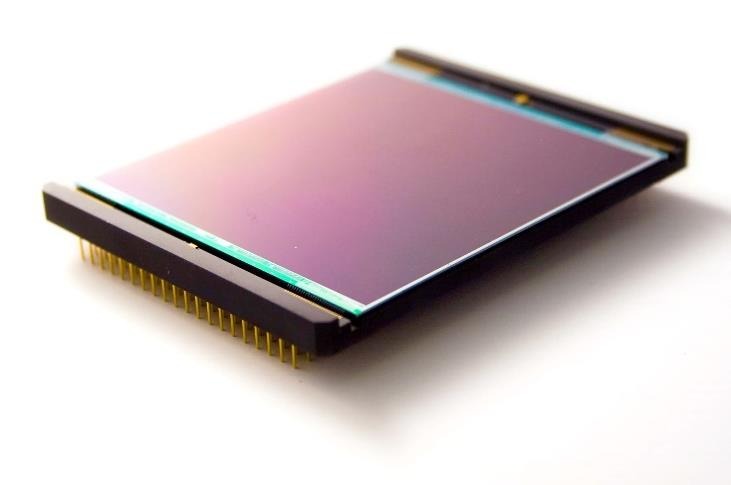

Teledyne e2v CCD230-84 16MP BSI CCD Sensor
Teledyne e2v
A large area 16MP Back-Illuminated CCD sensor designed for high speed and low dark current applications such as X-Ray imaging, astronomy, and scientific imaging.
Technical specifications
- Active Pixels
- 4096(H) x 4112(V)
- Pixel Size
- 15 × 15 µm
- Image Area
- 61.4 × 61.4 mm
- Number of output amplifiers
- 4
- Package size
- 63.80 x 79.60 mm
- Package format
- Aluminium Oxide PGA
- Connectors
- 80-pin PGA
- Focal plane height, above base
- 3.6 mm
- Output amplifier sensitivity
- 2.5 µV/e-
- Typical readout noise
- 8 e- at 750 kHz
- Max output data rate
- 5 MHz
- Typical pixel charge capacity
- 150 ke-/pixel
- Typical dark signal (-25°C)
- 0.2 e-/pixel/second
- Typical flatness (peak to valley)
- 20 µm
- Peak charge storage (image)
- 150,000 e−/pixel
- Peak charge storage (register/SW)
- 850,000 e−/pixel
- Output node capacity (OG low, mode 1)
- 450,000 e−
- Output node capacity (OG high, mode 2)
- 900,000 e−
- Output amplifier responsivity (mode 1)
- 2.5 µV/e−
- Output amplifier responsivity (mode 2)
- 0.8 µV/e−
- Readout noise (750 kHz)
- 8 e− rms
- Readout frequency
- 5 MHz
- Dark signal (248 K)
- 0.2 e−/pixel/s
- Charge transfer efficiency (Parallel)
- 99.9995 %
- Charge transfer efficiency (Serial)
- 99.9995 %
- Minimum Response (QE) at 350nm (Broadband Coated)
- 25 %
- Minimum Response (QE) at 400nm (Broadband Coated)
- 55 %
- Minimum Response (QE) at 500nm (Broadband Coated)
- 75 %
- Minimum Response (QE) at 650nm (Broadband Coated)
- 75 %
- Minimum Response (QE) at 900nm (Broadband Coated)
- 25 %
- Minimum Response (QE) at 350nm (Midband Coated)
- 15 %
- Minimum Response (QE) at 400nm (Midband Coated)
- 40 %
- Minimum Response (QE) at 500nm (Midband Coated)
- 85 %
- Minimum Response (QE) at 650nm (Midband Coated)
- 85 %
- Minimum Response (QE) at 900nm (Midband Coated)
- 25 %
- Minimum Response (QE) at 350nm (Uncoated)
- 10 %
- Minimum Response (QE) at 400nm (Uncoated)
- 25 %
- Minimum Response (QE) at 500nm (Uncoated)
- 50 %
- Minimum Response (QE) at 650nm (Uncoated)
- 55 %
- Minimum Response (QE) at 900nm (Uncoated)
- 25 %
- Max PRNU (1 σ)
- 5 % (350nm), 3 % (400nm, 500nm, 650nm), 5 % (900nm)
- Available variants
- Teledyne e2v CCD230-84-G-145 CCD Sensor, Teledyne e2v CCD230-84-G-E04 CCD Sensor, Teledyne e2v CCD230-84-G-E26 CCD Sensor
About
The CCD230-84 is a large area CCD sensor featuring 4096 x 4112 active pixels with a 15µm square pixel size. It utilizes Teledyne e2v’s back-thinning process to ensure high quantum efficiency over a wide range of wavelengths. The image area is divided into four separately connected sections, supporting full-frame, frame transfer, split full-frame, or split frame transfer read-out modes, with read-out possible through 1, 2, or 4 output circuits. It includes a gate-controlled drain for fast dumping of unwanted data. The sensor incorporates a two-stage output amplifier designed for minimum noise at pixel rates up to 5 MHz. It supports advanced inverted mode operation and offers an uncoated option for soft X-Ray applications. The sensor is housed in an Aluminium Oxide PGA package measuring 63.80 x 79.60 mm with 80-pin PGA connectors.
