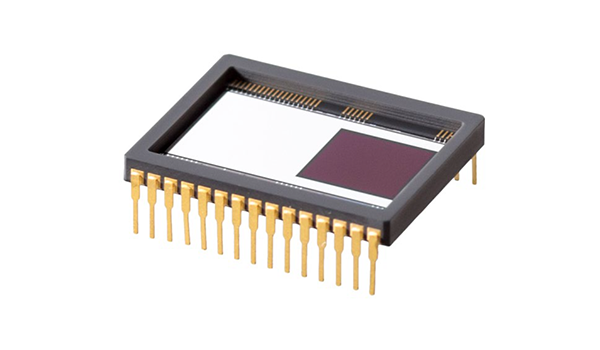

Teledyne e2v CCD351-00 L3Vision Electron Multiplying CCD
Teledyne e2v
Frame-transfer L3Vision electron multiplying CCD sensor designed for extreme performance in high frame rate, ultra-low light applications, with variable multiplication gain up to 30 fps.
Technical specifications
- Active pixels
- 1024 x 1024
- Pixel size
- 10 µm square
- Gain
- Variable multiplication gain, 1x-1000x+
- Frame rate
- Up to 30 fps
- Dark current
- Inverted mode operation for low dark current
- Package
- 30-pin ceramic dual-in-line package
- Active image area
- 10.24 × 10.24 mm
- Package size
- 22.86 × 28.00 mm
- Amplifier responsivity
- 3.0 µV/e-
- Readout noise with CDS
- <<1e- with EM gain
- Active pixel charge storage
- 35 ke-/pixel
- Dark signal (18°C)
- 100 e-/pixel/s
- Peak charge storage (image)
- 35 ke-/pixel
- Peak charge storage (register)
- 145 ke-/pixel
- Charge transfer efficiency: parallel
- 99.999 %
- Charge transfer efficiency: serial
- 99.999 %
- Operating temperature
- -120…+75 °C
- Storage temperature
- -200…+100 °C
- Power Dissipation (Amplifier)
- 65 mW
- Power Dissipation (Serial clocks)
- 435 mW
- Power Dissipation (Parallel clocks)
- 85 mW
- Power Dissipation (Total)
- 585 mW
About
The CCD351-00 is a frame transfer, electron multiplying CCD sensor designed for extreme performance in high frame rate ultra-low light applications. The Teledyne e2v back-thinning process ensures high quantum efficiency over a wide range of wavelengths.
The device functions by converting photons to charge in the image area during the integration time period, then transferring this charge through the image and store sections into the readout register. Following transfer through the readout register, the charge is multiplied in the gain register prior to conversion to a voltage by a low noise output amplifier.
The multiplication gain in the readout chain allows L3Vision devices to effectively eliminate readout noise. The gain may be varied from 1x to over 1000x by adjustment of the multiplication phase amplitude RO2HV.
Typical applications: high frame rate, ultra-low light applications.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
