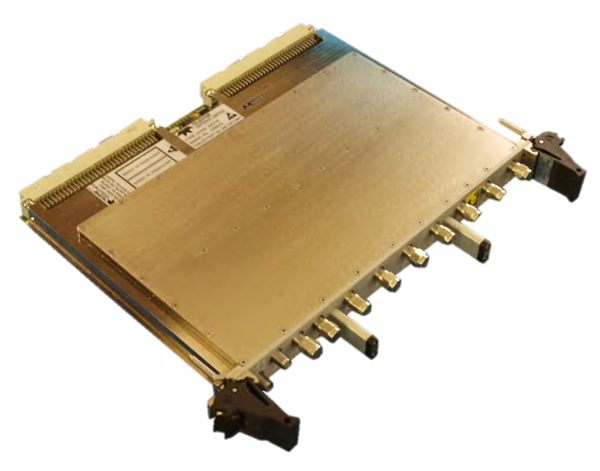

SA002 Adaptive Filter Module / Switch Multiplexer
Teledyne Defence & Space
The SA002 from Teledyne Defence & Space is a patented Adaptive Filter Module providing 8 switchable channels across the 2–18 GHz frequency range for wideband Electronic Warfare applications. Using patented filter-integrated switch designs, the SA002 delivers a fast, flexible filter network capable of providing different band-pass or band-stop responses on a pulse-by-pulse basis in dense […]
Technical specifications
- Model
- SA002
- Frequency Range
- 2–18 GHz
- Number of Channels
- 8 switchable channels
- Switching Speed
- Pulse-by-pulse reconfiguration
- Filter Responses
- Band-pass and band-stop selectable per channel
- Insertion Loss
- Zero net (internal amplification)
- Applications
- EW receiver, ESM, space payload front-end, spectrum management
About
The SA002 from Teledyne Defence & Space is a patented Adaptive Filter Module providing 8 switchable channels across the 2–18 GHz frequency range for wideband Electronic Warfare applications. Using patented filter-integrated switch designs, the SA002 delivers a fast, flexible filter network capable of providing different band-pass or band-stop responses on a pulse-by-pulse basis in dense signal environments. It accepts single or multiple inputs and routes them to single or multiple filtered outputs, with internal amplification providing zero net insertion loss, low noise figure, flat insertion loss, and exceptionally flat group delay across all channels. This product is widely used in EW systems requiring precise frequency spectrum control. The same underlying architecture is applied in Teledyne’s space payload receiver front-end designs for signals intelligence and ELINT satellite missions requiring reconfigurable frequency selectivity.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
