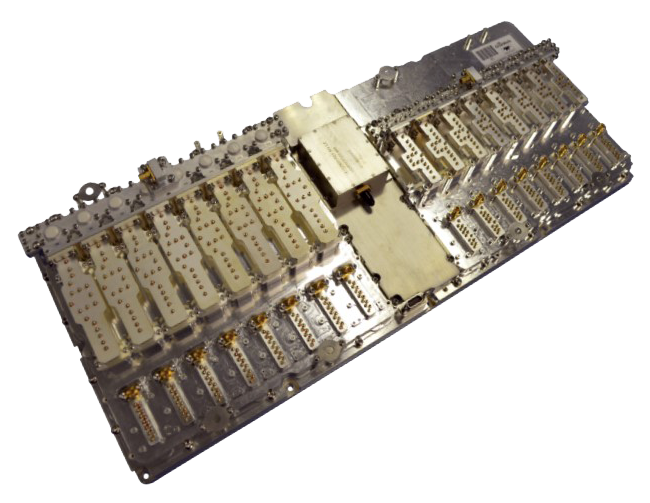

Solid State Power Amplifier (SSPA)
Teledyne Defence & Space
Teledyne Defence & Space designs and manufactures Solid State Power Amplifiers (SSPAs) using LDMOS, GaAs, InP and GaN technologies, generally producing custom designs to customer specifications. The SSPA product line provides output power from 100W at module level to multi-kW at system level, covering frequency bands from UHF through to Ku-band. State-of-the-art thermal management and […]
Key figurescomparable across the catalogue
- Power
- 100,000 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Frequency Range
- UHF to Ku-band
- Output Power Range
- 100W (module) to multi-kW (system)
- Technology
- LDMOS, GaAs, InP, GaN
- GaN Pulsed Frequency
- Up to 18 GHz
- GaN CW Power
- Tens of watts up to 31 GHz
- ITAR Status
- Non-ITAR capable
- Design Origin
- UK designed and manufactured
- Experience
- 20+ years SSPA design
About
Teledyne Defence & Space designs and manufactures Solid State Power Amplifiers (SSPAs) using LDMOS, GaAs, InP and GaN technologies, generally producing custom designs to customer specifications. The SSPA product line provides output power from 100W at module level to multi-kW at system level, covering frequency bands from UHF through to Ku-band. State-of-the-art thermal management and unique highly efficient coaxial power combiners allow designs in smaller form factors with improved reliability compared to travelling-wave tube amplifiers (TWTAs). GaN technology is used in pulsed applications up to 18 GHz, and Teledyne has produced linear CW amplifiers with tens of watts up to 31 GHz using GaN. With over 20 years of SSPA design experience and extensive use of ATE (Automated Test Equipment), Teledyne supports customers from initial specification through to high-volume production. Applications include satellite uplink terminals, satellite transponder power amplifiers, radar transmitters, and EW jamming systems. All design work is in the UK for non-ITAR supply.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
