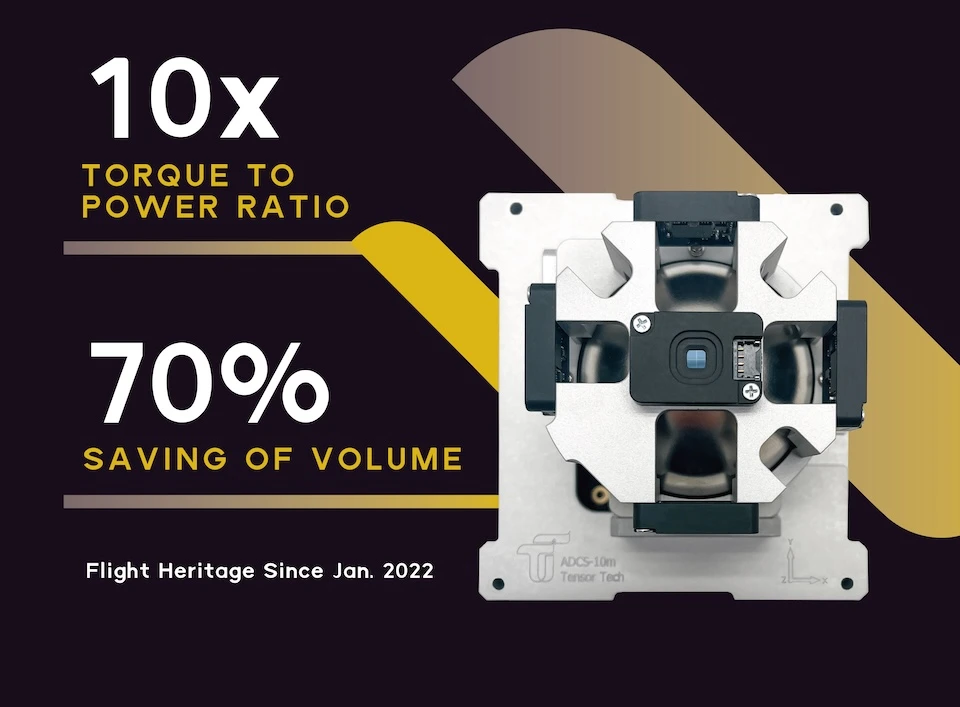

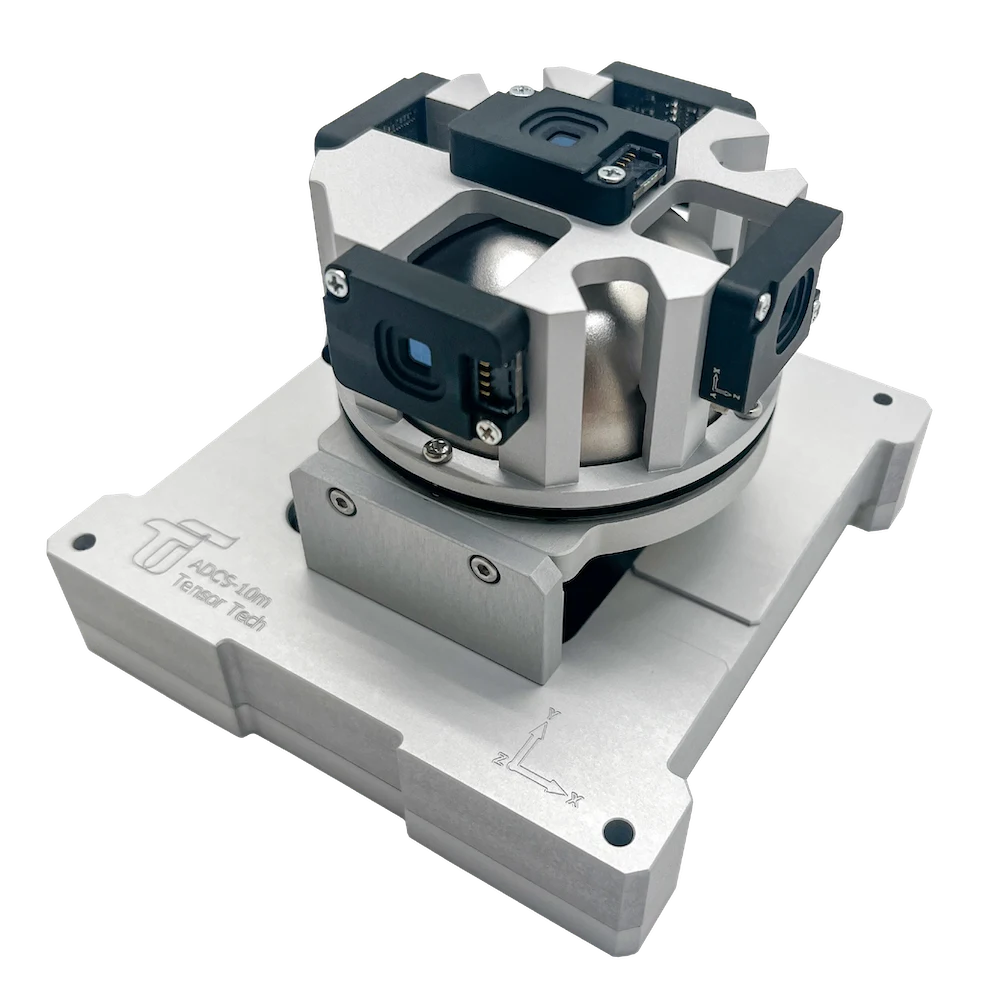

TensorADCS-10m
Tensor Tech
Integrated CMG-based ADCS for nanosatellites up to 30 kg, mounting in a single tuna-can occupying 0.25U.
Typed specifications3 values
Discloses 2 of 11 fields engineers filter by in this category (category median 3).
- Mass
- 495 g product page
- Envelope (L×W×H)
- 94 x 92 x 73.5 mm3; 1 Tuna-can + 0.25U product page
- Power consumption
- 2.6 W product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Pointing knowledge
- 3 ~ 100 arcsec with star tracker; 0.3 deg standard config.
- Max. momentum
- 13 mNms on 2-axis
- Slew rate
- 5 deg/s
- Control accuracy
- 0.4 deg
- Torque (Acceleration)
- 1 mNm
- Torque (Gyroscopic)
- 15 ~ 100 mNm
- Dimensions
- 94 x 92 x 73.5 mm3; 1 Tuna-can + 0.25U
- Nominal voltage
- 6 ~ 14 V
- Optional accessories
- GNSS Receiver and Star Tracker
- Mass
- 495 g
- Power
- 2.6 W
- Interface
- RS-485 or UART
About

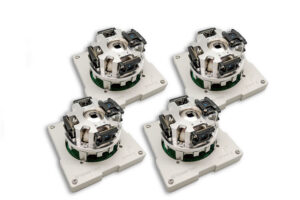

The TensorADCS series provides attitude determination and control systems for nanosatellites up to 30 kg. Each system incorporates one or more variable-speed, single-gimbal Control Moment Gyroscopes (CMGs) for attitude control and maneuvering. Available in configurations from 3U to 16U platforms, each system includes onboard attitude determination, automated operating modes, and user-configurable interfaces. Configurable systems are available to match specific mission requirements.
Operating modes — Basic (without CMG, magnetorquer control): Sun Pointing (maintains solar array orientation for power generation), Detumbling (stabilizes rotation after deployment or anomalies), Safe Mode (autonomous protection during spacecraft upsets). Advanced (CMG-enabled): Target Tracking (continuous pointing at ground targets during overflight), Fine Pointing (high-precision attitude hold for imaging or optical communications), Local-Vertical-Local-Horizontal (Earth-referenced nadir orientation for ground coverage).
Installation: available in integrated or discrete configurations. Integrated assembly mounts in the tuna-can, occupying 0.25U and maximizing internal payload volume. Discrete configurations allow separate installation of CMG, controller, and sensors within the satellite, occupying 0.75U total and providing flexible component positioning for non-standard layouts.
The TensorADCS-10m is the smallest member of the family, integrating a single CMG for 2-axis momentum control.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
