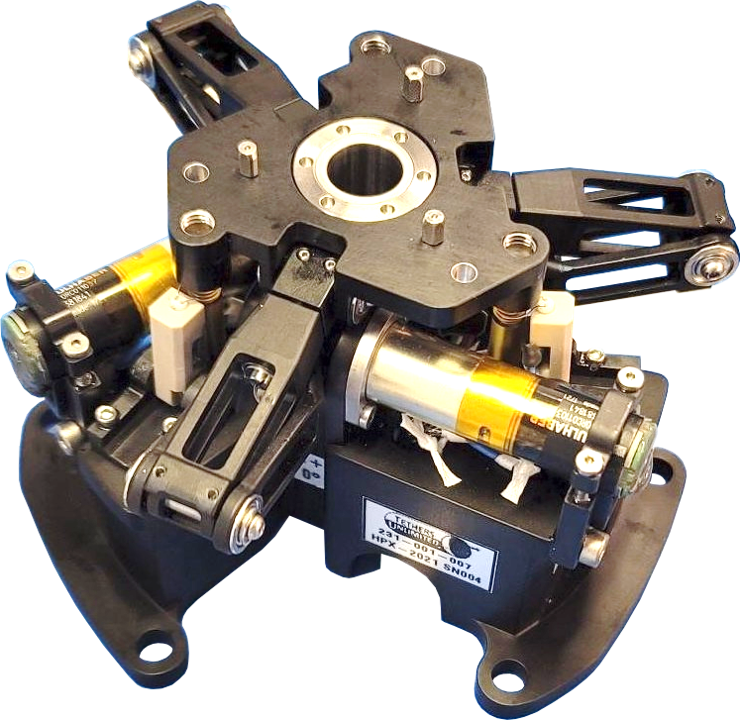

COBRA-HPX Gimbal
Tethers Unlimited, Inc. (AMERGINT)
Space-qualified 3-DOF (az/el/thrust) pointing gimbal using the Canfield-Joint carpal-wrist design for full-hemisphere, singularity-free antenna pointing.
Typed specifications27 values
Discloses 6 of 9 fields engineers filter by in this category (category median 2).
- Mass
- 450 g datasheet p.2 500 g commander | 450 g gimbal | 450 g system mass, without commander
- Travel range per axis
- 360 deg azimuth, continuous · datasheet p.2 -75–75 deg elevation
- Angular resolution (step)
- 0.077 deg min · product page
- Envelope (L×W×H)
- 115 mm (diameter) x 69 mm (stowed) Footprint size · datasheet p.2
- Power consumption
- 7 W Operational · datasheet p.2 4 W max · Standby
- Operating temperature
- -30–70 °C datasheet p.2
- Radiation tolerance (TID)
- 15 krad Commander · datasheet p.2 15 krad commander, no destructive latch-ups | 50 krad Gimbal Mechanism | 50 krad gimbal mechanism, no destructive latch-ups
- Mechanism type
- two-axis gimbal (general purpose) antenna, sensor instrument & propulsion pointing · datasheet p.1
- Axes
- 2 elevation and azimuth · datasheet p.2
- Max payload mass
- 1.25 kg datasheet p.2 1.25 kg max · Up to 1.25 kg Max
- Survival temperature
- -40–85 °C survival · datasheet p.2
- Random vibration
- 7.1 g RMS w/launch locks · datasheet p.2 14 g RMS with 0/8 kg payload
- Flight heritage
- Flown several configurations across a multitude of missions datasheet p.1
- Slew speed
- 30 °/s datasheet p.2 30 °/s max · slew rate, up to
- Pointing accuracy
- 0.5 ° up to · datasheet p.2
- Launch lock included
- yes Integrated Launch Lock, available as an option · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Mass
- 276 g
- Pointing resolution
- ≥ 276 arc-sec
- Repeatability
- ≤ ± 276 arc-sec
- Stowed footprint
- 113 mm ⌀
- Stowed height
- 29 mm
- Payload Capacity
- Up to 1.25 kg Max
- Pointing accuracy
- Up to 0.5°
- Power
- Operational: 7 W; Standby: 4 W Max
- Slew Rate
- Up to 30°/s Max
- Workspace Range
- +/- 75° Elevation, 360° Continuous Azimuth
- Vibration Environment
- 7.1 Grms w/launch Locks (14 Grms with 0/8 kg payload)
- Radiation (Gimbal Mechanism)
- 50kRad TID, No Destructive Latch-ups
- Radiation (Commander)
- 15kRad TID, No Destructive Latch-ups
About
The COBRA Gimbal is a space-qualified, 3-DOF (azimuth, elevation, thrust) pointing mechanism offering precise control in extreme environments. Implementing the Canfield Joint carpal-wrist design, COBRA provides full-hemisphere pointing capability for pinpoint accuracy using a precision-manufactured parallel-linkage joint system that delivers high repeatability and precision at low size, weight and power (SWaP). It provides continuous, singularity-free pointing without cable twist/wrap, eliminating slip rings, and the mechanism can be scaled and customized to mission requirements. COBRA-HPX is the standard/high-performance configuration in the family.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
