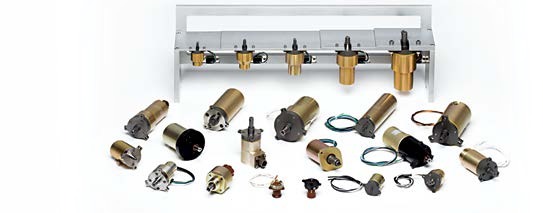

TiNi™ Pin Puller P1000
Ensign-Bickford Aerospace & Defense (EBAD)
A non-pyrotechnic pin puller utilizing Shape Memory Alloy (SMA) wire, offering a 1,000 lbf (4,450 N) pull force and a minimum of 50 cycles.
Typed specifications9 values
Discloses 2 of 10 fields engineers filter by in this category (category median 2).
- Mass
- 482 g description
- Preload / holding force
- 4.45 kN pull force · description
- Release time
- 75 ms max · description
- Operating temperature
- -60 °C min · description 70 °C max
- Actuator
- 500 product page 600
- Cycles / reuses
- 50 min · description
- Flight heritage
- flight pedigree description
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Pull force
- 1,000 lbf (4,450 N)
- Side load (actuation)
- 500 lbf (2,224 N)
- Side load (non-actuation)
- 600 lbf (2,670 N)
- Mass
- 17 oz (482 g)
- Operating current
- 2.75 A to 8.75 A
- Resistance
- 2.2±.3 Ω
- Function time @ 23ºc
- 75 ms max @ 4 A
- Cycle life
- 50 min
- Operating temperature
- -60ºC + 70ºC
- Height (before pin retraction) x
- 4.605 in
- Height (after pin retraction)y
- 3.88 in
- Max diameter (with flange)z
- 2.44 in x 2.44 in
- Front/rear resettable
- Front Std; Rear Optional with growth in device
About
EBAD’s TiNi™ Pin Pullers are non-pyrotechnic separation systems used in satellite applications to provide a simple and effective solution where a pull force is required. The P1000 model offers a 1,000 lbf (4,450 N) pull force and a side load (actuation) of 500 lbf (2,224 N). It has a non-actuation side load of 600 lbf (2,670 N). The device operates with a current range of 2.75 to 8.75 A and has a resistance of 2.2±0.3 Ω. Its function time at 23ºC is 75 ms max at 4 A. The P1000 model is designed for a minimum of 50 cycles and operates within a temperature range of -60ºC to +70ºC. It is front resettable, with rear resettable as an optional feature with growth in the device. The pin puller utilizes a Shape Memory Alloy (SMA) wire to release a latch, allowing internal compression springs to retract the pin. It features a redundant firing circuit, maximum reliability through design simplicity, and flight pedigree. Applications include solar array and instrument deployment, instrument launch locks, and optic cover releases. The enclosure is typically made with aluminum alloy with a titanium flange, and the output pin is stainless steel with a tiolon finish.
