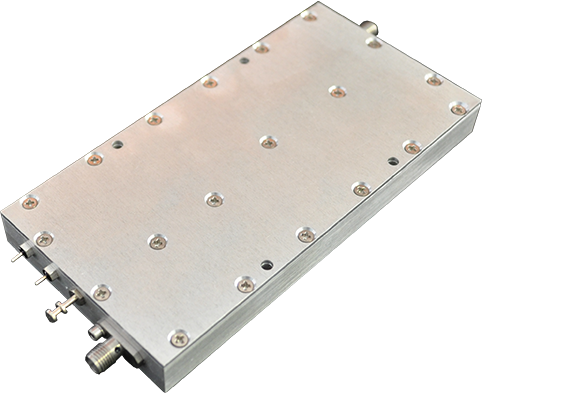

TA1007
Triad RF Systems
500-2800 MHz, 5 W GaAs power amplifier module supporting simple CW/FM through highly modulated 64/256QAM signals.
Typed specifications21 values
Discloses 3 of 13 fields engineers filter by in this category (category median 3).
- Mass
- 481.94 g with heatsink · datasheet p.2 198.45 g without heatsink
- Frequency range
- 500–2 800 MHz product page 2 800 MHz
- Envelope (L×W×H)
- 5 x 2.5 x 0.553 in datasheet p.2
- TX RF output power
- 5.01 W nom. · P1dB power output, typ., +12VDC +25 °C · datasheet p.1 5 W P1dB | 5 W rated power in product title
- Supply voltage
- 9–13 V nominal · datasheet p.1 11–13 V operating voltage, typ. +12
- Power consumption
- 22.8 W Typical operating (12V, 1.9A) · datasheet p.1 12 W Typical quiescent (12V, 1.0A)
- Data interface
- GPIO Amp Enable pin, TTL High or no connection = enable, TTL Low =… · datasheet p.2
- Operating temperature
- -40–85 °C housing temperature · datasheet p.2
- Function
- transmitter datasheet p.1 other 500-2800 MHz 5 W power amplifier (class A GaAs module)
- RF connector
- SMA RF input, SMA-F · datasheet p.2 SMA RF output, SMA-F
- Connector
- SMA-F / SMA-F (RF Input / Output) datasheet p.2 Feedthru Pins (DC / Control)
- RF gain
- 39 dB nom. · typ. · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier21 lines, in the manufacturer's own wording
- Frequency low
- 500 MHz
- Frequency high
- 2800 MHz
- P1db dbm (Typ)
- 36
- Tx gain
- 39 dB
- Supply voltage (Vdc)
- 11-13
- Dimensions
- 5 x 2.5 x 0.553 in
- Operating Frequency
- 500-2800 MHz
- Gain Flatness
- 3.0 dB
- Input Return Loss
- -14 dB
- Supply voltage
- +11…+13 VDC
- Current Draw
- 1.9 A
- Quiescent Current Draw
- 1.0 A
- Switching Time
- 2.0 uS
- RF Connectors (Input / Output)
- SMA-F / SMA-F
- DC / Control Connector
- Feedthru Pins
- Mass
- 7 oz.
- Mass with Heatsink
- 17 oz.
- Operating temperature
- -40…+85 °C
- Humidity Range
- 0-95 %
- Altitude
- 0-30,000 ft.
- Max RF Input
- +1 dBm
About
The TA1007 PA module has been engineered to support any signal type, from simple CW/FM signals to complex, highly modulated carriers such as 64 and 256QAM. This module uses the latest GaAs transistor technology to achieve highly linear power with low distortion, or peak power at high efficiencies to meet any radio system’s requirements. Triad employs the latest RF simulation and design methods to offer products with the lowest size, weight, and DC power consumption in the industry. Features: Over / Under / Reverse Voltage Protection, High Speed On/Off Control, Optional Heatsink. Applications: Simple CW to Highly Modulated Signals, Commercial / Military Radio Systems, Software Defined Radios, General Purpose RF Amplification.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
