TA1029
Triad RF Systems

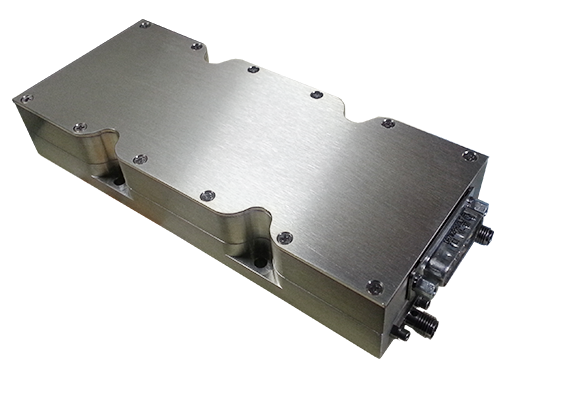

6400-7100 MHz, 25 W GaN power amplifier (end of life / discontinued, information provided for reference only).
Typed specifications30 values
Discloses 5 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- C TX · datasheet p.1
- Mass
- 481.94 g No Heat Sink Included · datasheet p.2 765.44 g with heatsink | 481.94 g without heatsink
- Frequency range
- 6 400 MHz min · TX · datasheet p.1 7 100 MHz max · TX | 6 400–7 100 MHz | 6 400–7 100 MHz operating frequency
- Envelope (L×W×H)
- 6 x 2.5 x 1.06 in datasheet p.2
- TX RF output power
- 25.12 W nom. · PSat power output, typ., +28VDC +25 °C · datasheet p.1 25.12 W PSat | 25.12 W PSat Power Output | 25 W rated power in product title
- Modulation
- OFDM datasheet p.1 other CW/AM/FM | other DVB
- Supply voltage
- 9 V min · datasheet p.1 36 V max
- Data interface
- GPIO Amp Enable TTL input; TEMP, FWD and REV power detection outputs · datasheet p.2
- Operating temperature
- -40 °C min · datasheet p.2 85 °C max
- Function
- other 6400-7100 MHz 25 W power amplifier, class AB GaN module · datasheet p.1
- RF connector
- SMA RF input, SMA-F · datasheet p.2 SMA RF output, SMA-F
- Connector
- 7W2 Male (DC / control), Triad cable CBL21 datasheet p.2 7W2 Male DC / Control Connector | SMA-F / SMA-F RF Connectors (Input / Output) | SMA-F / SMA-F RF Input / Output
- Random vibration
- MIL-STD-810 and equivalents datasheet p.2
- RF gain
- 58 dB nom. · typ. · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier20 lines, in the manufacturer's own wording
- Frequency low
- 6400 MHz
- Frequency high
- 7100 MHz
- Tx gain
- 58 dB
- Supply voltage (Vdc)
- 9-36
- Psat (Typ)
- 44
- Dimensions
- 6 x 2.5 x 1.06 in
- Gain
- 58.0 dB
- Gain Flatness
- 2.5 dB
- Input Return Loss
- -14 dB
- Supply voltage
- +9 VDC
- Operating Voltage
- +36 VDC
- Current Draw
- 2.3 A
- Quiescent Current Draw
- 0.75 A
- Switching Time
- 2.0 uS
- RF Connectors (Input / Output)
- SMA-F / SMA-F
- DC / Control Connector
- 7W2 Male
- Mass
- 17 oz.
- Operating temperature
- -40…+85 °C
- Humidity Range
- 0-100 %
- Max RF Input
- -11 dBm
About
This product has reached end of life and has been discontinued. Information provided is for reference only. The TA1029 PA module has been engineered to support any signal type, from simple CW/FM signals to complex, highly modulated carriers such as 64 and 256QAM. This module uses the latest GaN transistor technology to achieve highly linear power with low distortion, or peak power at high efficiencies to meet any radio system’s requirements. Triad employs the latest RF simulation and design methods to offer products with the lowest size, weight, and DC power consumption in the industry. Features: Over / Under / Reverse Voltage Protection, Thermal Shutdown, Versatile DC Supply (VDS) +9V to +36V, Optional Heatsink. Applications: Simple CW to Highly Modulated Signals, Commercial / Military Radio Systems, Software Defined Radios, General Purpose RF Amplification.
