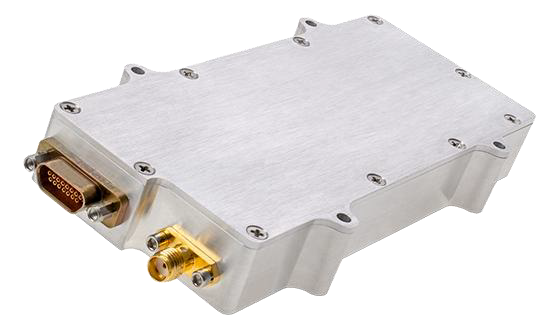

TA1017
Triad RF Systems
1700-2400 MHz, 32 W SISO GaN power amplifier for military and commercial radio systems.
Typed specifications39 values
Discloses 5 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- S datasheet p.1
- Mass
- 113 g datasheet p.2 113 g 4 oz
- Frequency range
- 1 700 MHz min · Operating · datasheet p.2 1 700 MHz min · Operating Frequency | 2 400 MHz max · Operating | 2 400 MHz max · Operating Frequency | 1 700–2 400 MHz operating frequency
- Envelope (L×W×H)
- 125.1 x 64.3 x 17.8 in (mm) datasheet p.2 125.1 x 64.3 x 17.8 4.925 x 2.533 x 0.7 in
- TX RF output power
- 31.62 W nom. · saturated power output, CW sweep at design limit, typ. · datasheet p.2 32 W 64QAM Power Output | 1.59 W 64QAM Power Output, 20 MHz BW, -27 dB EVM Limit | 25.12 W BPSK Power Output, 20 MHz BW, -7 dB EVM Limit | 32 W rated power in product title +3
- Modulation
- 64QAM datasheet p.2 BPSK
- Supply voltage
- 10 V min · datasheet p.2 30 V max | 10–30 V supply voltage range, typ. 28
- Data interface
- GPIO AMP ENABLE TTL input, FWD power detector and TEMP monitor ana… · datasheet p.4
- Operating temperature
- -40 °C min · datasheet p.3 85 °C max | -40–85 °C housing temperature
- Function
- other SISO power amplifier, class AB GaN module · datasheet p.1
- RF connector
- SMA Input / Output · datasheet p.3 SMA RF input, SMA-F | SMA RF output, SMA-F
- Connector
- MDM-15SH034B (power/signal), mating M83513/03-B03C datasheet p.3 MDM-15SH034B Power / Signal Connector | SMA-F / SMA-F RF Connectors (Input / Output)
- Survival temperature
- -55 °C min · datasheet p.3 85 °C max | -55–85 °C storage temperature
- RF gain
- 27 dB nom. · small signal gain, typ. · datasheet p.2 25 dB min · small signal gain
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Frequency low
- 1700 MHz
- Frequency high
- 2400 MHz
- P1db dbm (Typ)
- 44
- Tx gain
- 27 dB
- Supply voltage (Vdc)
- 10-30
- Psat (Typ)
- 45
- Dimensions
- 4.925 x 2.533 x 0.7 in
About
The TA1017 SISO Power Amplifier is a class AB GaN module with an operating frequency range of 1700 to 2400 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +10 to +30 VDC and a saturated RF output power of +45 dBm. With the capability of supporting any signal type and modulation format, all in a low-SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are key. Features: Under Voltage Protection, Temperature Monitor Output, Over-Temperature Protection, Forward Power Measurement. Applications: Military or Commercial Radio Systems, Unmanned Systems, Vehicle Systems, Aircraft Systems, Fixed Site Infrastructure.
