TA1049
Triad RF Systems

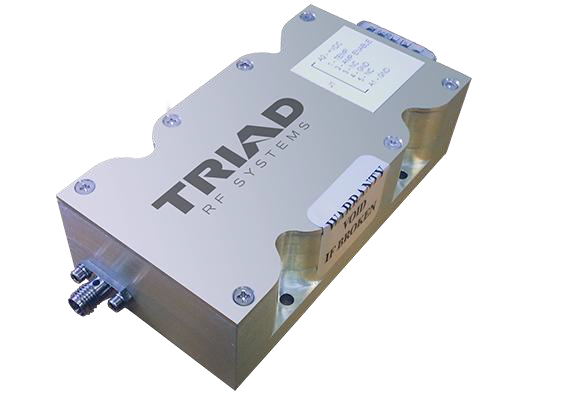

A 700–6000 MHz class AB GaN SISO power amplifier delivering +40 dBm saturated output power in a compact, low-SWaP package for military, commercial, and NewSpace applications.
Typed specifications39 values
Discloses 5 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- other Operating Frequency · datasheet p.2
- Mass
- 227 g datasheet p.2 227 g 8 oz | 227 g
- Frequency range
- 700 MHz min · Operating Frequency · datasheet p.2 6 000 MHz max · Operating Frequency | 700–6 000 MHz operating frequency
- Envelope (L×W×H)
- 95.3 x 50.8 x 27 datasheet p.2 95.3 x 50.8 x 27 3.75 x 2 x 1.063 in
- TX RF output power
- 10 W typ. · Saturated Power Output, CW Sweep at Design Limit · datasheet p.2 0.355 W 64QAM Power Output | 3.16 W BPSK Power Output | 10 W rated power in product title | 10 W Saturated Power Output +3
- Modulation
- any signal type and modulation format datasheet p.1 other any signal type and modulation format (transparent amplifier) | BPSK
- Supply voltage
- 9 V min · Supply Voltage Range · datasheet p.2 36 V max · Supply Voltage Range | 9–36 V supply voltage range, typ. 28
- Data interface
- GPIO Enable TTL input; TEMP, FWD and REV power detector outputs · datasheet p.4
- Operating temperature
- -40 °C min · Housing Temp. · datasheet p.3 85 °C max · Housing Temp. | -40–85 °C housing temperature
- Function
- other SISO power amplifier, class AB GaN module · datasheet p.1
- RF connector
- SMA Input / Output · datasheet p.3 SMA RF input, SMA-F | SMA RF output, SMA-F
- Connector
- DA7W2PA00LF (power/signal), mating DA7W2SA00LF datasheet p.3 DA7W2PA00LF Power / Signal Connector | SMA-F / SMA-F RF Connectors (Input / Output)
- Survival temperature
- -55 °C min · datasheet p.3 85 °C max | -55–85 °C storage temperature
- RF gain
- 40 dB nom. · small signal gain, typ. · datasheet p.2 33 dB min · small signal gain
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Model
- TA1049
- Frequency low
- 700 MHz
- Frequency high
- 6000 MHz
- P1db dbm (Typ)
- 35
- Tx gain
- 40 dB
- Supply voltage (Vdc)
- 9-36
- Psat (Typ)
- 40
- Dimensions
- 3.75 x 2 x 1.063 in
About
The TA1049 is a SISO (single-input, single-output) power amplifier module built on a class AB GaN (gallium nitride) design, covering a wide operating frequency range of 700 to 6000 MHz. It is designed for both military and commercial applications, and is positioned by the manufacturer within its NewSpace, ISR/data-link, and electronic warfare product lines. The amplifier accepts an input supply voltage range of +9 to +36 VDC and delivers a saturated RF output power (Psat) of +40 dBm, with a typical P1dB of 35 dBm and a Tx gain rating of 40 dB. It is capable of supporting any signal type and modulation format, making it flexible for varied communications waveforms, and is housed in a low SWaP (size, weight, and power) package measuring 3.75 x 2 x 1.063 inches. This combination of wideband frequency coverage, high output power, and compact form factor suits it for integration into space and airborne RF transmit chains where size and weight are constrained.
