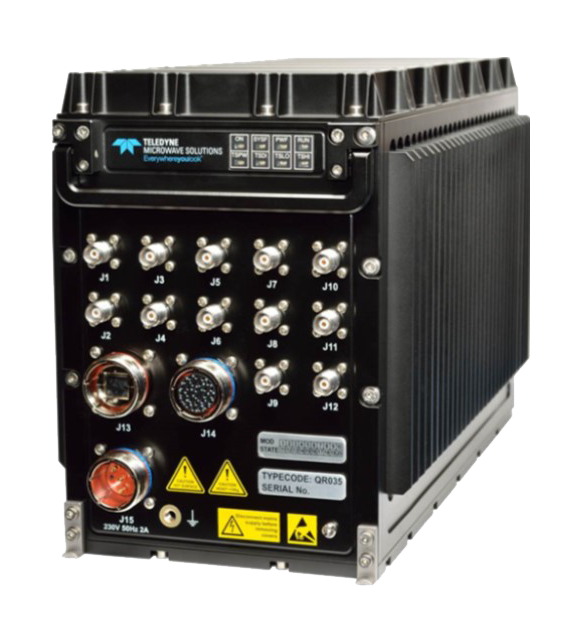

QR035 Multi-Channel High Performance Receiver
Teledyne Defence & Space
The QR035 is a Multi-Channel High Performance Receiver from Teledyne Defence & Space, designed for precision ESM and ELINT applications requiring direction finding capability through amplitude and phase comparison. It provides 1 to 6 phase- and amplitude-matched channels across 500 MHz to 18 GHz (with extensions to 40 GHz), with multiple IF outputs. The multi-channel […]
Typed specifications2 values
Discloses 1 of 13 fields engineers filter by in this category (category median 3).
- Frequency range
- 40 000 MHz optional extension · description 500–18 000 MHz
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- Model
- QR035
- Frequency range
- 500 MHz to 18 GHz (extensions to 40 GHz optional)
- Channel count
- 1–6 phase- and amplitude-matched channels
- If outputs
- Multiple outputs
- Matching
- Phase and amplitude matched between channels
- Applications
- ESM direction finding, ELINT, space SIGINT payloads
About
The QR035 is a Multi-Channel High Performance Receiver from Teledyne Defence & Space, designed for precision ESM and ELINT applications requiring direction finding capability through amplitude and phase comparison. It provides 1 to 6 phase- and amplitude-matched channels across 500 MHz to 18 GHz (with extensions to 40 GHz), with multiple IF outputs. The multi-channel architecture enables simultaneous reception across multiple antenna apertures for angle-of-arrival measurement, making it suited to direction-finding systems and space-based ELINT collection payloads that need to determine the geographical source of emitters. Excellent dynamic range and linearity are achieved through RF and digital down conversion stages with high performance pre-selection and IF filtering. Patented design features deliver industry-leading sensitivity in a compact module.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
