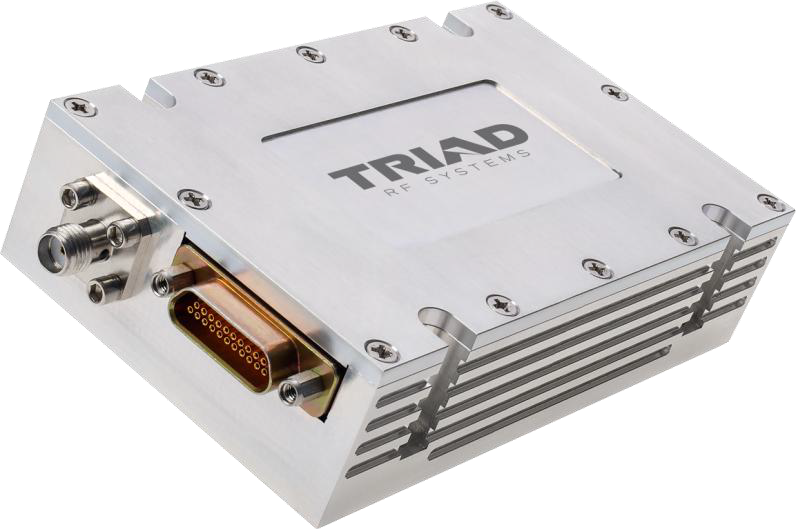

TA1216 SISO Power Amplifier
Triad RF Systems
The TA1216 is a class AB GaN SISO Power Amplifier operating from 300 to 6000 MHz, designed for high power density, efficiency, and linearity in both military and commercial applications.
Key figurescomparable across the catalogue
- Power
- 45 W
- Largest dimension
- 95.38 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Model
- TA1216
- Frequency Low (MHz)
- 300
- Frequency High (MHz)
- 6000
- P1dB dBm (Typ)
- 42
- Tx Gain (dB)
- 55
- Supply Voltage (Vdc)
- 12-30
- Psat (Typ)
- 45
- Size (in)
- 3.755 x 2.3 x 0.95
About
The TA1216 SISO Power Amplifier is a class AB GaN module with an operating frequency range of 300 to 6000 MHz. It is designed for both military and commercial applications, featuring an input voltage range of +12 to +30 VDC and a saturated RF output power of +45 dBm. This amplifier is capable of supporting any signal type and modulation format, all within a low SWaP (Size, Weight, and Power) package. This unit is ideal for applications where high power density, efficiency, and linearity are key. A related product, the TA1120, is a small form factor, lightweight circuit card amplifier specifically designed to be integrated into existing CubeSat and NanoSat satellite systems.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
