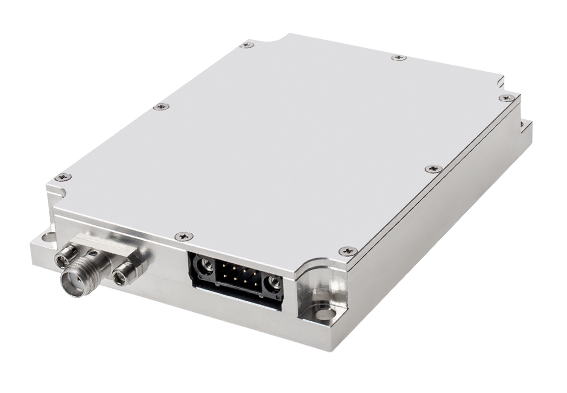

TA1217 Power Amplifier
Triad RF Systems
The TA1217 Power Amplifier is a class AB GaN module operating from 30 to 2700 MHz, designed for high power density, efficiency, and linearity in a low SWaP package.
Key figurescomparable across the catalogue
- Power
- 7.94 W
- Largest dimension
- 82.55 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Model
- TA1217
- Frequency Low
- 30 MHz
- Frequency High
- 2700 MHz
- P1dB dBm (Typ)
- 36 dBm
- Tx Gain
- 39 dB
- Supply Voltage
- 12-30 Vdc
- Psat (Typ)
- 39 dBm
- Size
- 3.25 x 2.42 x 0.54 in
About
The TA1217 Power Amplifier is a class AB GaN module with an operating frequency range of 30 to 2700 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +12 to +30 VDC and a saturated RF output power of +39 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP (Size, Weight, and Power) package, this unit is ideal for applications where high power density, efficiency, and linearity are key. A related product, the TA1120, is a small form factor, lightweight circuit card amplifier designed to be integrated into existing CubeSat and NanoSat satellite systems.
