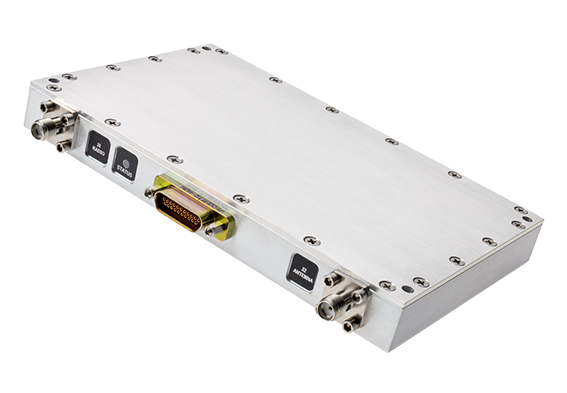

TA4010 Power Amplifier
Triad RF Systems
The TA4010 is a Class AB GaN power amplifier module operating from 4400 to 5000 MHz, designed for high power density, efficiency, and linearity in a low SWaP package.
Key figurescomparable across the catalogue
- Power
- 50.12 W
- Largest dimension
- 134.62 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Model
- TA4010
- Frequency Low
- 4400 MHz
- Frequency High
- 5000 MHz
- P1dB dBm (Typ)
- 46
- Tx Gain
- 26 dB
- Supply Voltage
- 12-32 Vdc
- Psat (Typ)
- 47
- Size
- 5.3 x 3.25 x 0.6 in
About
The TA4010 Power Amplifier is a Class AB Gallium Nitride (GaN) module with an operating frequency range of 4400 to 5000 MHz. It is designed for both military and commercial applications, offering an input voltage range of +12 to +32 VDC and a saturated RF output power of +47 dBm. This amplifier is capable of supporting any signal type and modulation format, all within a low Size, Weight, and Power (SWaP) package. Its design makes it ideal for applications where high power density, efficiency, and linearity are critical. The manufacturer also mentions the TA1120, a small form factor, lightweight circuit card amplifier designed for integration into existing CubeSat and NanoSat satellite systems, suggesting the TA4010 could be used in similar space-related communication systems.
