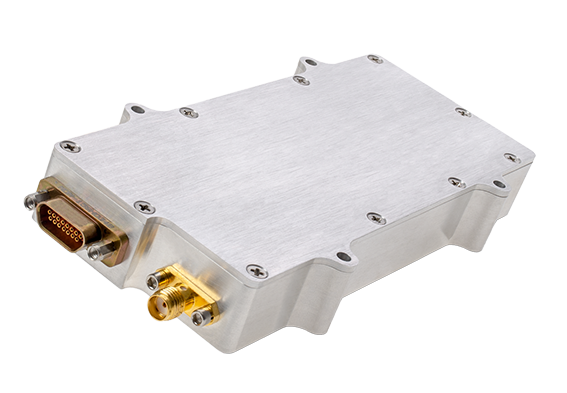

TTRM1116 Bi-Directional Amplifier
Triad RF Systems
The TTRM1116 is a bi-directional amplifier module designed to support various signal types, from simple CW/FM to complex modulated carriers like 64 and 256QAM, utilizing GaN transistor technology for high linear power and efficiency.
Key figurescomparable across the catalogue
- Power
- 46 W
- Largest dimension
- 125.22 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Model
- TTRM1116
- Frequency Low (MHz)
- 1200
- Frequency High (MHz)
- 1400
- Tx Gain (dB)
- 20
- Supply Voltage (Vdc)
- 10-28
- Rx Noise Figure (dB)
- 1
- Rx Gain (dB)
- 12
- Output FreqLo (MHz)
- 1200
- Output FreqHi (MHz)
- 1400
- Psat (Typ)
- 46
- Size (in)
- 4.93 x 2.53 x 0.7
About
The TTRM1116 Bi-Directional Amplifier (BDA) module is engineered to support a wide range of signal types, encompassing simple CW/FM signals as well as complex, highly modulated carriers such as 64 and 256QAM. This module incorporates the latest Gallium Nitride (GaN) transistor technology, enabling it to achieve highly linear power with minimal distortion, or peak power at high efficiencies. This design flexibility allows the TTRM1116 to meet the diverse requirements of various radio systems. Triad RF Systems employs advanced RF simulation and design methodologies to produce products that offer industry-leading low size, weight, and DC power consumption. The module operates with a frequency range of 1200 to 1400 MHz, provides a Tx Gain of 20 dB, and an Rx Gain of 12 dB with a low Rx Noise Figure of 1 dB. It requires a supply voltage between 10-28 Vdc and has a typical Psat of 46 dBm. Its compact size is 4.93 x 2.53 x 0.7 inches.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
