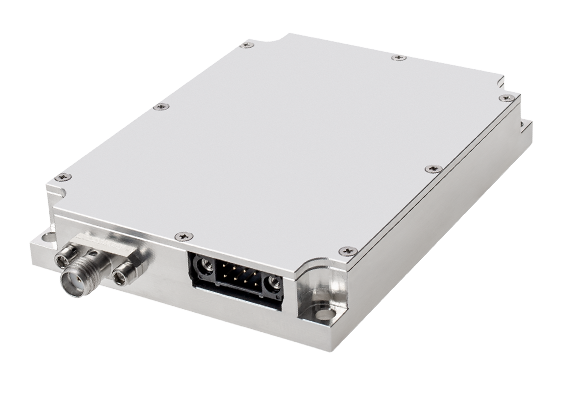

TTRM1210-D01 Bi-Directional Amplifier
Triad RF Systems
The TTRM1210-D01 is a bi-directional amplifier module designed to support various signal types, from simple CW/FM to complex modulated carriers like 64 and 256QAM, utilizing GaN transistor technology for high linearity and efficiency.
Key figurescomparable across the catalogue
- Power
- 8 W
- Largest dimension
- 82.55 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Model
- TTRM1210
- Frequency Low (MHz)
- 30
- Frequency High (MHz)
- 2700
- Tx Gain (dB)
- 36
- Supply Voltage (Vdc)
- 12-30
- Rx Noise Figure (dB)
- 2
- Rx Gain (dB)
- 23
- Output FreqLo (MHz)
- 30
- Output FreqHi (MHz)
- 2700
- Psat (Typ)
- 39
- Size (in)
- 3.25 x 2.42 x 0.54
About
The TTRM1210-D01 BDA module is engineered to support a wide range of signal types, including simple CW/FM signals and complex, highly modulated carriers such as 64 and 256QAM. This module incorporates the latest GaN transistor technology to achieve highly linear power with low distortion, or peak power at high efficiencies, to meet the diverse requirements of any radio system. Triad RF Systems employs advanced RF simulation and design methods to deliver products with industry-leading low size, weight, and DC power consumption. The amplifier operates across a broad frequency range from 30 MHz to 2700 MHz, offering a transmit gain of 36 dB and a receive gain of 23 dB. It features a low receive noise figure of 2 dB and can operate with a supply voltage between 12 and 30 Vdc. The typical saturated output power (Psat) is 39 dBm. Its compact size makes it suitable for integration into various systems.
