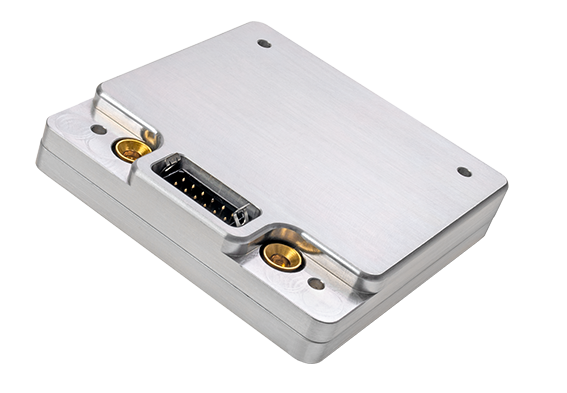

TTRM2002 2200-2500 MHz 10 W Bi-Directional Amplifier
Triad RF Systems
The TTRM2002 is an S-Band Bi-Directional power amplifier operating from 2200 to 2500 MHz, offering up to 10 Watts of output power and supporting various signal types from CW/FM to highly modulated carriers.
Key figurescomparable across the catalogue
- Power
- 10 W
- Largest dimension
- 58.42 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Model
- TTRM2002
- Frequency Low (MHz)
- 2200
- Frequency High (MHz)
- 2500
- Tx Gain (dB)
- 25
- Supply Voltage (Vdc)
- 10-30
- Rx Noise Figure (dB)
- 2.5
- Rx Gain (dB)
- 15
- Output FreqLo (MHz)
- 2200
- Output FreqHi (MHz)
- 2500
- Psat (Typ)
- 40
- Size (in)
- 2.3 x 2.3 x 0.45
About
The TTRM2002 BDA module is engineered to support a wide range of signal types, including simple CW/FM signals and complex, highly modulated carriers such as 64 and 256QAM. This module incorporates the latest GaN transistor technology to achieve highly linear power with low distortion, or peak power at high efficiencies, designed to meet diverse radio system requirements. Triad employs advanced RF simulation and design methods to deliver products with optimized size, weight, and DC power consumption. The TTRM2002 operates in the S-Band, specifically from 2200 to 2500 MHz, and provides up to 10 Watts of output power.
