TTRM4302 Bi-Directional Amplifier
Triad RF Systems

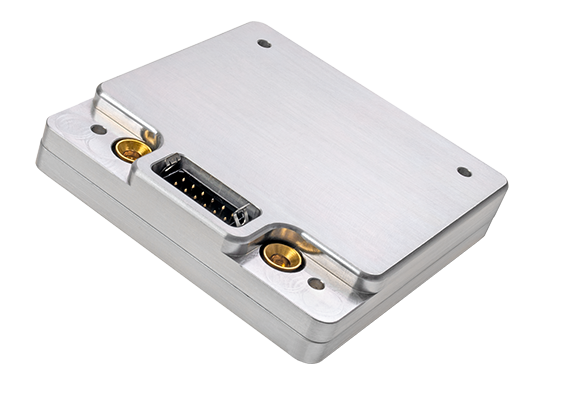

The TTRM4302 is a bi-directional amplifier module designed to support various signal types, from simple CW/FM to complex modulated carriers like 64 and 256QAM, operating between 5000 and 6000 MHz.
Key figurescomparable across the catalogue
- Power
- 10 W
- Largest dimension
- 58.42 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Model
- TTRM4302
- Frequency Low (MHz)
- 5000
- Frequency High (MHz)
- 6000
- Tx Gain (dB)
- 25
- Supply Voltage (Vdc)
- 10-30
- Rx Noise Figure (dB)
- 2.5
- Rx Gain (dB)
- 15
- Output FreqLo (MHz)
- 5000
- Output FreqHi (MHz)
- 6000
- Psat (Typ)
- 40
- Size (in)
- 2.3 x 2.3 x 0.45
About
The TTRM4302 BDA module is engineered to support any signal type, ranging from simple CW/FM signals to complex, highly modulated carriers such as 64 and 256QAM. This module leverages the latest GaN transistor technology to achieve highly linear power with low distortion, or peak power at high efficiencies, to meet the diverse requirements of any radio system. Triad employs advanced RF simulation and design methods to offer products characterized by the lowest size, weight, and DC power consumption in the industry. The amplifier operates in the 5000 to 6000 MHz frequency range, providing a Tx Gain of 25 dB and an Rx Gain of 15 dB. It has an Rx Noise Figure of 2.5 dB and a typical Psat of 40. The module requires a supply voltage between 10 and 30 Vdc and has compact dimensions of 2.3 x 2.3 x 0.45 inches.
