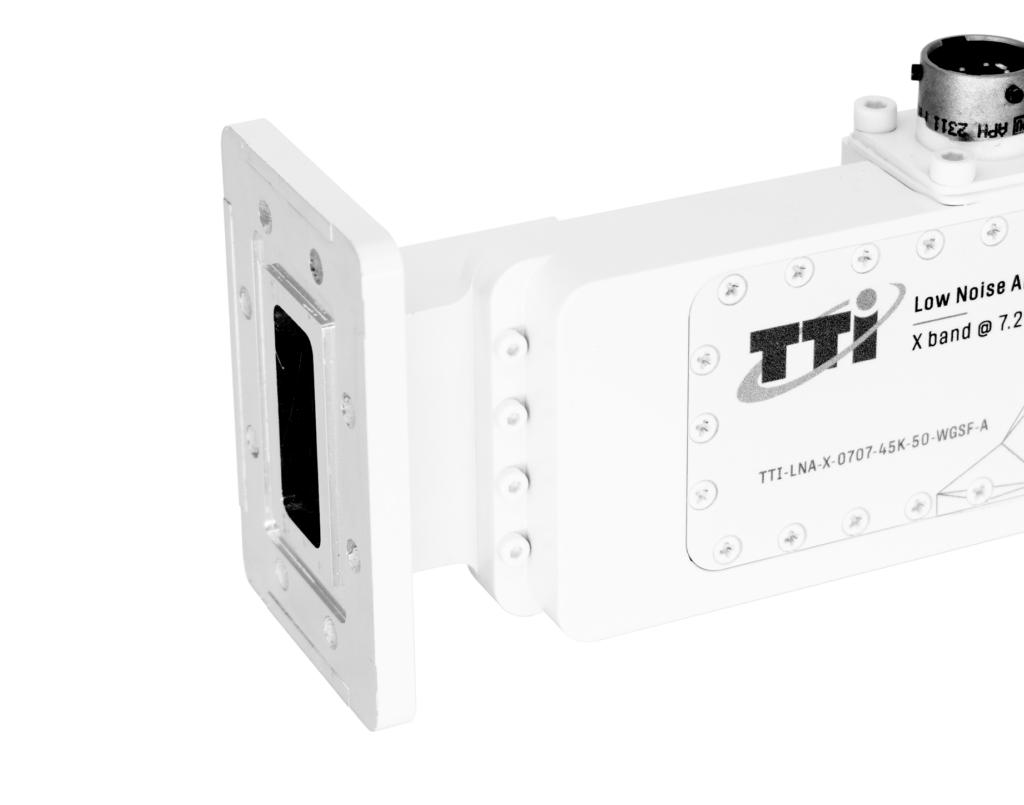

X-Band LNA for Earth Observation & Lunar Communications
TTI Norte
New-generation low-noise amplifiers (LNAs/LNBs) for X-band satcom ground stations, engineered for earth observation and lunar communication receive chains.
Typed specifications13 values
Discloses 3 of 8 fields engineers filter by in this category (category median 2).
- Frequency band
- X RX · datasheet p.2
- Mass
- 240 g datasheet p.2
- Frequency range
- 7 900–8 500 MHz Operating · datasheet p.2 8 000–8 500 MHz | 8 400–8 500 MHz
- Envelope (L×W×H)
- 101.2 x 65.8 x 46.6 mm datasheet p.2
- Supply voltage
- 12–28 V datasheet p.2
- Power consumption
- 2.4 W max · datasheet p.2
- Operating temperature
- -30–55 °C datasheet p.2
- Connector
- PT02A10-5P DC & monitoring · datasheet p.2 CPR112G RF input | SMA (f) RF output
- Survival temperature
- -40–85 °C datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier4 lines, in the manufacturer's own wording
- Variant 1 frequency
- 7.9 - 8.5 GHz
- Variant 2 frequency
- 8.0 - 8.5 GHz
- Variant 3 frequency
- 8.4 - 8.5 GHz
- Noise temperature (all variants)
- < 50 K
About
Celestia TTI’s X-band LNA family delivers a new generation of low-noise amplifiers/LNBs for satcom ground stations, specifically engineered for earth observation and lunar communication mission receive chains, offering sub-50K noise temperature performance across three frequency variants.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
