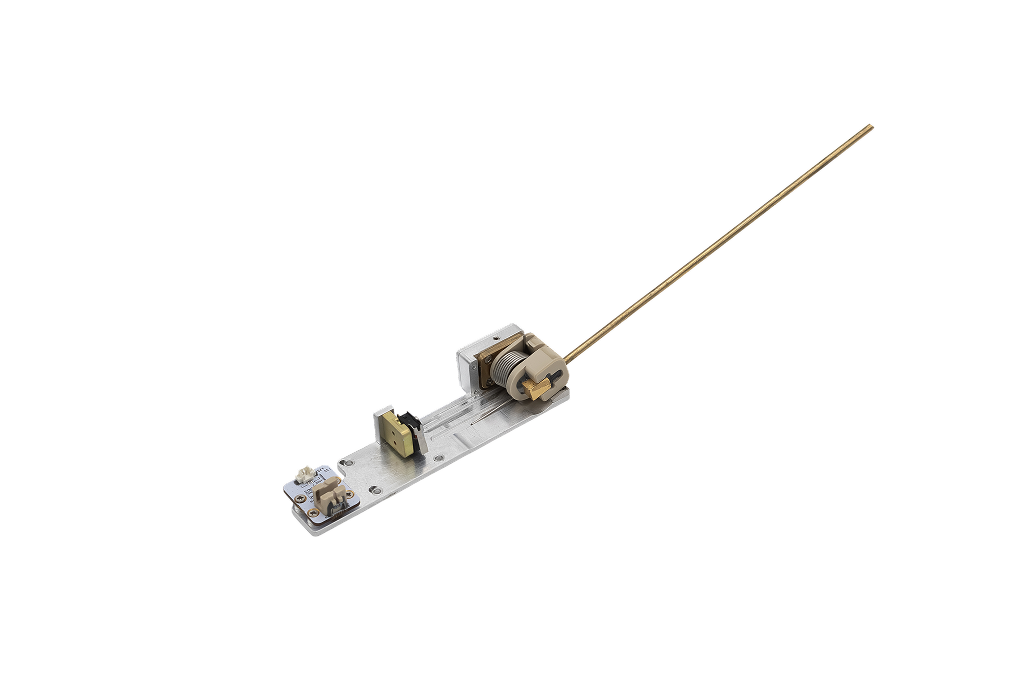

UHF Deployable Monopole Antenna
Plan-S (Connecta)
The UHF Deployable Monopole Antenna provides omnidirectional RF performance for small satellite TT&C links with a stress-free deployment architecture.
Typed specifications25 values
Discloses 6 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- UHF datasheet p.1
- Peak gain
- 0 dBi datasheet p.2 0 dBi ~ peak gain
- Frequency range
- 400–403 MHz datasheet p.2
- Envelope (L×W×H)
- 22x150x25 mm (Stowed Length) datasheet p.2 22x330x25 mm (Deployable Length)
- Polarization
- linear datasheet p.2
- Antenna type
- Deployable Monopole datasheet p.1
- Supply voltage
- 5 V datasheet p.2 5 V deployment
- Operating temperature
- -40 °C product page
- RF connector
- SMA 1x SMA Female · datasheet p.2
- Fixed or deployable
- deployable datasheet p.1
- Connector
- 1x SMA Female datasheet p.2
- Survival temperature
- -40–85 °C thermal cycling test, 10 cycles · datasheet p.2
- Flight heritage
- Flight heritage demonstrated on 1 Satellite datasheet p.2
- Missions flown
- 1 flight heritage demonstrated on 1 satellite · datasheet p.2
- Quasi-static load
- 12 g sine burst qualification, axial, 20 Hz 1 s · datasheet p.2 16.88 g sine burst qualification, lateral, 20 Hz 1 s
- VSWR, max
- 1.5 datasheet p.2 1.5 max · < 1.5:1
- RF ports
- 1 datasheet p.2
- Deployment mechanism
- Applying 5V, approx. 8-10 seconds. The redundant circuit design supports reliable deployment. Patented mechanism: the antenna rod rotates while the RF feed cable remains stationary datasheet p.2
- Deployed envelope
- 22x330x25 mm (deployable length) datasheet p.2
- Mounting
- 4x M2.5 screws datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Frequencies
- 360 - 440 MHz
- Peak gain
- ~ 0 dBi
- Vswr
- < 1.5:1
- Polarization
- Linear
- Ports
- 1x SMA Female
- Dimensions
- 22x150x25 mm (Stowed Length)
- Dimensions (2)
- 22x330x25 mm (Deployable Length)
- Deployment
- Applying 5 V, approx. 8-10 seconds
- Mounting
- 4x M2.5 Screws
- Operating temperature
- –40 °C to +85 °C
About
The UHF Deployable Monopole Antenna is optimized for 360-440 MHz and designed to protect critical TT&C links for smallsats. It features a patented stress-free deployment mechanism that ensures a cleaner mechanical deployment path, reduces the risk of coax damage during motion, and increases confidence in long-term on-orbit performance. This versatile architecture can be manufactured in monopole, dipole, or quadrifilar configurations upon request. It is a flight-ready solution with established space heritage for low-risk, mission-critical TMTC integration, delivering resilient TT&C links for LEO missions. The antenna safeguards the TT&C lifeline with a compact, integration-ready form and a flight-proven, stress-free deployment mechanism engineered for mechanical integrity, resulting in higher deployment confidence and a command link built to stay online.
