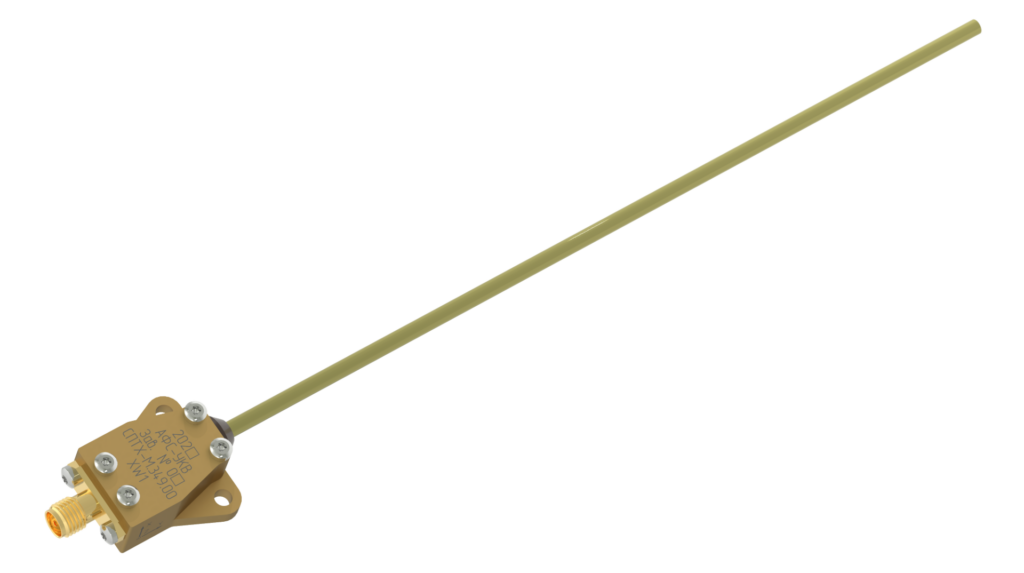

Antenna-feeder system of the UHF band
SPUTNIX
A monopole UHF-band antenna converting electrical signals into electromagnetic waves for satellite communications.
Typed specifications5 values
Discloses 4 of 10 fields engineers filter by in this category (category median 3).
- Mass
- 21 g product page
- Frequency range
- 400–403 MHz product page
- Envelope (L×W×H)
- 12.4 x 25 x 205 mm product page
- Polarization
- linear product page
- Antenna type
- monopole or whip product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Antenna type
- monopole
- Operating frequency range
- 400-403 MHz
- Gain
- at least 4 dB
- Standing wave voltage coefficient
- no more than 2
- Type of polarization
- linear
- Dimensions
- 12.4 x 25 x 205 mm
- Mass
- 21 g
About
AFS-UHF is a monopole antenna that converts electrical signals into electromagnetic vibrations and radiates them into free space, used as part of the satellite radio communication system. The antenna has successfully passed the GEM (ground experimental testing) cycle.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
