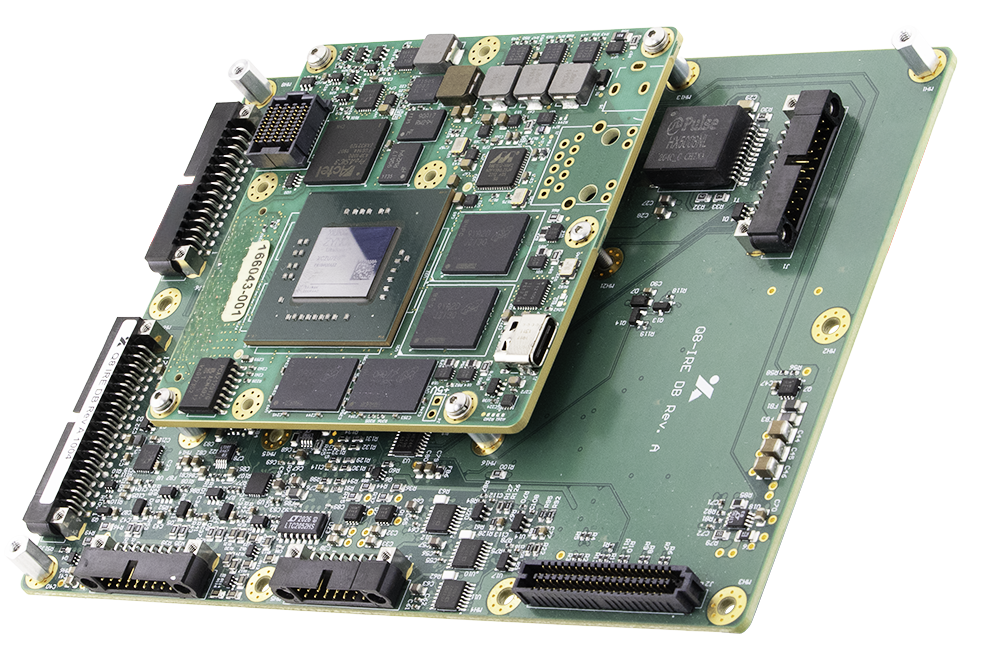

Q8 Optical Payload Processor
Xiphos Technologies
High-performance image processing daughterboard for the Q8, featuring dual Camera Link interfaces for space-based Earth observation.
Key figurescomparable across the catalogue
- Largest dimension
- 150 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Camera interfaces
- 1x Base Camera Link, 1x Medium Camera Link (configurable as LVDS)
- Serial interfaces
- RS-485 / RS-422
- Network
- Gigabit Ethernet
- Timing
- PPS input and output
- Ancillary functions
- Heater power control, temperature sensing
- Dimensions
- 150 x 110 x 10 mm (without Q8)
- Supply voltage
- 9 to 13 V
- Radiation tolerance (TID)
- 30 krad (Si)
About
The Xiphos Q8 Optical Payload Processor is a daughterboard designed for the Q8 processor card, enabling integration with high-bandwidth video or imagery streams for remote sensing and Earth observation missions. The board facilitates execution of high-performance image processing algorithms on both the Q8’s ARM processors and its substantial FPGA fabric resources.
The board provides two Camera Link interfaces (Base and Medium configurations), which can alternatively be configured as LVDS connections, giving mission designers flexibility in camera integration. RS-485/RS-422 serial interfaces enable communication with camera heads and other payload instruments, while PPS input/output signals support precise timing synchronization with GPS receivers.
Heater power control and temperature sensing functions are integrated directly on the board, simplifying thermal management of optical payloads in the space environment. Xiphos provides a Camera Link IP core to accelerate FPGA development for customers implementing custom imaging pipelines.
