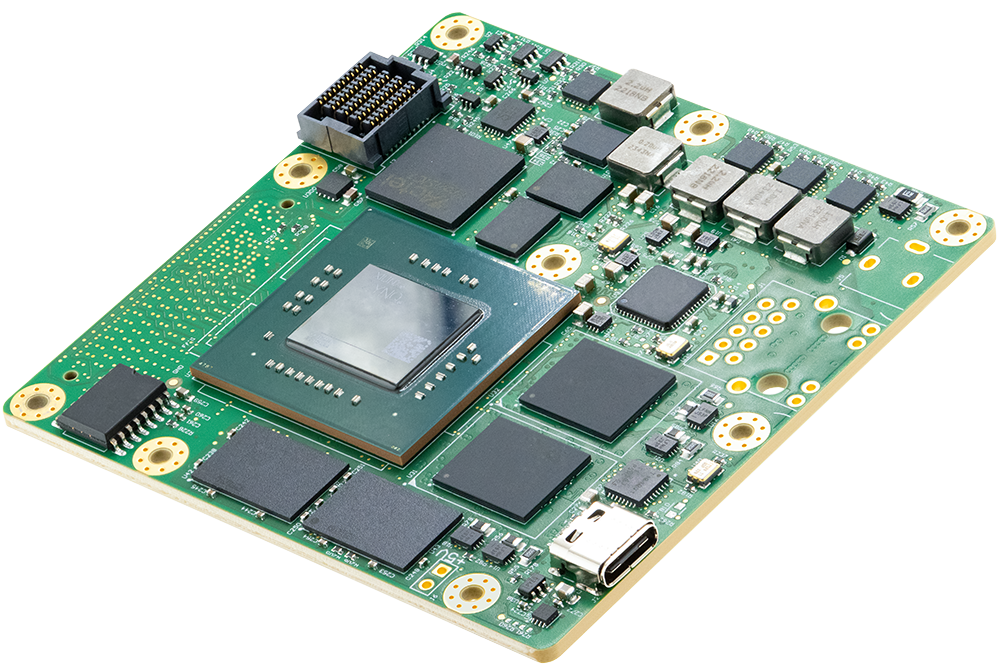

Q8 Low SWaP Computer-on-Module
Xiphos Technologies
The Q8 is a spaceflight-ready miniature processing board, building on the Xiphos Q-card family's heritage, offering high performance and flexibility for demanding space applications.
Typed specifications74 values
Discloses 9 of 13 fields engineers filter by in this category (category median 5).
- Processor
- Xilinx Zynq UltraScale+ XCZU7EG (Quad core ARM Cortex A53, Dual core ARM Cortex R5) datasheet p.2
- Mass
- 64 g with RJ45 and power connectors · datasheet p.2 56 g without connectors
- CPU clock
- 1 200 MHz ARM Cortex A53 · datasheet p.2 500 MHz ARM Cortex R5 | 1 200 MHz max · ARM Cortex A53 APU, up to | 500 MHz max · ARM Cortex R5 RPU, up to
- Envelope (L×W×H)
- 85.8 mm x 80 mm x 22.6 mm with RJ45 and power connectors · datasheet p.2 80 mm x 80 mm x 11.2 mm without connectors
- RAM
- 4 096 MB datasheet p.2 4 096 MB LPDDR4 DRAM with EDAC
- Mass storage
- 128 GB 2x eMMC, 128 GB each, on independent buses / power control · datasheet p.2 128 GB eMMC each | 0.25 GB QSPI Flash
- Operating system
- Yocto Linux BSP (LTS distribution) datasheet p.2 Linux Yocto Linux BSP (LTS distribution)
- Supply voltage
- 6–15 V input voltage range in configuration table · datasheet p.4 5–15 V Supply | 6–15 V
- Power consumption
- 5 W typical · datasheet p.2 5 W typ. | 5 W nom. · typical
- Data interface
- Ethernet datasheet p.1 other 1-Wire, on Product Integration Module (PIM) | USB 1x USB Type-C Host port (USB 2.0 & USB 3.1 Gen 1) | SATA 3 Gigabit transceivers (SATA, PCI express) | LVDS 64 LVDS pairs (mezzanine connector) +17
- Operating temperature
- -40–60 °C derated · datasheet p.2
- Processor architecture
- ARM Cortex-R dual core ARM Cortex R5 Real Time Processing Unit · datasheet p.2 ARM Cortex-A quad core ARM Cortex A53 Application Processing Unit
- Radiation and fault mitigation
- EDAC / ECC on RAM EDAC-protected RAM · datasheet p.2 FPGA bitstream scrubbing FPGA bit stream scrubbing | latch-up protection (current limiting) overcurrent protection (multiple); overcurrent detection & pr… | software watchdog software robustness / watchdog | TMR in FPGA triple mode redundancy in Control FPGA +6
- Connector
- RJ45 datasheet p.1 USB Type-C Host port
- Flight heritage
- The Q8S, the Flight Model (FM) version of the Q8, has been flying since September 2020. datasheet p.1
- Missions flown
- 340 min · more than 340 boards in space as of March 2026 (Xiphos products) · datasheet p.6
- Cores
- 4 ARM Cortex A53 Application Processing Unit · datasheet p.2 2 ARM Cortex R5 Real Time Processing Unit
- FPGA
- Xilinx Zynq UltraScale+ XCZU7EG: 504,000 system logic cells, 461,000 flip flops (FF), 274,000 lookup tables (LUT), 1,728 DSP slices; Control FPGA Microchip ProASIC3 datasheet p.2 Microchip ProASIC3
- GPIO lines
- 13 Product Integration Module (PIM) · datasheet p.1 14 single-ended GPIO 1.8 V | 38 up to, single-ended GPIO 3.3 V | 52 max | 128
- RAM type
- LPDDR4 datasheet p.2
- Program / boot memory
- 256 MB 2x 256 MB QSPI Flash (NOR) · datasheet p.2
- Analog inputs
- 8 Product Integration Module (PIM), plus 4 analog outputs · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier14 lines, in the manufacturer's own wording
- Processor
- Xilinx Zynq UltraScale+ Multi-Processor System-on-Chip (MPSoC) Processing FPGA
- Cpu
- quad-core ARM Cortex-A53 Application Processing Unit
- Real-time processing unit
- dual-core ARM Cortex-R5
- Gpu
- ARM Mali-400
- Ram
- 4 GB LPDDR4 (with ECC)
- Qspi flash (NOR)
- 2 x 256 MB
- Emmc
- 2 x 128 GB
- Power input
- 9 V to 15 V
- Interfaces
- Gigabit Ethernet, USB 2.0 & 3.1, serial, multiple high speed I/O via mezzanine connector (GPIO, LVDS, GTR multi-Gbps transceivers for SATA or PCI Express (PCIe Gen 2))
- Software
- Linux SDK
- Radiation effects mitigation
- Yes
- TID lifetime
- 30krad
- Flight heritage
- Extensive heritage of flight-proven Q-card family
- Mpsoc peripherals (Q8 and Q8J)
- 4x Gigabit Ethernet MAC, 2x USB 3.0/2.0, 2x CAN 2.0B, 2x SDIO, 2x SPI, 2x UART, 2x I2C, GPIO, PCI Express (PCIe) Gen 2, SATA 6Gbs Rev 3.1
About
The Xiphos Q8 Low SWaP Computer-on-Module is the latest generation of spaceflight-ready miniature processing boards, designed explicitly for space applications using COTS components. It builds upon the extensive heritage of the flight-proven Q-card family, maintaining an efficient design while setting new records in performance. The Q8 processor card features a Xilinx Zynq UltraScale+ Multi-Processor System-on-Chip (MPSoC) Processing FPGA, which includes a quad-core ARM Cortex-A53 Application Processing Unit, a dual-core ARM Cortex-R5 Real-Time Processing Unit, and an ARM Mali-400 GPU, all supported by massive programmable logic resources. Memory includes 4 GB of LPDDR4 RAM (with ECC), 2 x 256 MB QSPI Flash (NOR), and 2 x 128 GB eMMC. It operates with a typical power consumption of 5W at 9V to 15V. Interfaces include Gigabit Ethernet, USB 2.0 & 3.1, serial, and multiple high-speed I/O via a mezzanine connector, such as GPIO, LVDS, and GTR multi-Gbps transceivers for SATA or PCI Express (PCIe Gen 2). The Q8 also comes with a Linux SDK and features radiation effects mitigation, including a 30krad TID lifetime. It is ideal for space applications requiring higher processing power and flexibility, such as radar, satellite communications, high-resolution image processing, and scientific research. Xiphos also offers custom solutions, including application-specific development and software hybridization, which fuses custom software with FPGA logic for efficient, high-performance, and scalable applications, particularly in image processing, signal processing, and data acquisition. The board has dual FPGA (processor and supervisor) and ECC for its memory banks, along with other radiation effects mitigation features. Xiphos provides memory scrubbing software and conducts radiation qualification tests (board-level proton and TID gamma ray testing) and environmental qualification (TVAC, vibration, shock testing).
