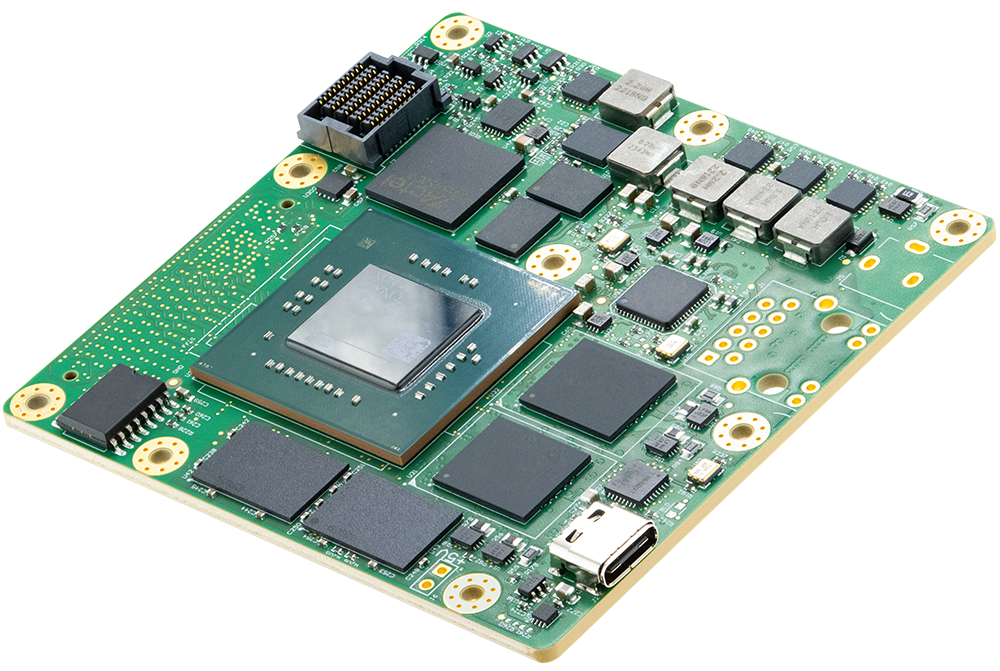

Q8 Computer-on-Module
Xiphos Technologies
Low SWaP Zynq UltraScale+ MPSoC processor with 30 krad radiation tolerance for demanding satellite payloads and bus subsystems.
Typed specifications98 values
Discloses 10 of 13 fields engineers filter by in this category (category median 5).
- Processor
- quad core ARM Cortex A53 Application Processing Unit datasheet p.1 Microchip ProASIC3 Control FPGA | dual core ARM Cortex R5 Real Time Processing Unit | Xilinx Zynq UltraScale+ XCZU7EG
- Mass
- 64 g with RJ45 and power connectors · datasheet p.2 56 g without connectors
- CPU clock
- 1 200 MHz ARM Cortex A53 · datasheet p.2 500 MHz ARM Cortex R5 | 1 200 MHz max · ARM Cortex A53 APU | 500 MHz max · ARM Cortex R5 RPU
- Envelope (L×W×H)
- 85.8 mm x 80 mm x 22.6 mm with RJ45 and power connectors · datasheet p.2 80 mm x 80 mm x 11.2 mm without connectors
- RAM
- 4 096 MB datasheet p.2 4 096 MB LPDDR4 DRAM with EDAC
- Mass storage
- 128 GB 2x eMMC, 128 GB each, on independent buses / power control · datasheet p.2 128 GB eMMC | 0.25 GB QSPI Flash (NOR)
- Operating system
- Yocto Linux BSP (LTS distribution) datasheet p.2 Linux Yocto Linux BSP (LTS distribution)
- Supply voltage
- 4 V Brownout voltage · datasheet p.4 4.5 V Startup voltage | 5–15 V | 6–15 V Input voltage range | 6–15 V input voltage range, configurations Q8-001 to Q8-004
- Power consumption
- 5 W typical · datasheet p.2 5 W typ. · typical | 5 W nom. · typical
- Data interface
- Gigabit Ethernet datasheet p.1 USB 1x USB Type-C Host port (USB 2.0 & USB 3.1 Gen 1) | SATA 3 Gigabit transceivers (SATA, PCI express) | LVDS 64 LVDS pairs | CAN CAN Bus controller (in logic) +26
- Operating temperature
- -40–60 °C datasheet p.2 -40–60 °C operating temperature derated
- Radiation tolerance (TID)
- 30 krad product page
- Processor architecture
- ARM Cortex-R dual core ARM Cortex R5 RPU · datasheet p.2 ARM Cortex-A quad core ARM Cortex A53 APU
- Flight software support
- Application Development Kit with standard Linux libraries for C/C++; standard Linux and Xilinx kernel drivers datasheet p.1
- Radiation and fault mitigation
- EDAC / ECC on RAM EDAC-protected RAM · datasheet p.2 FPGA bitstream scrubbing FPGA bit stream scrubbing | latch-up protection (current limiting) Overcurrent protection (multiple) | software watchdog Software robustness / watchdog | TMR in FPGA Triple mode redundancy in Control FPGA +6
- Connector
- mezzanine connector datasheet p.1 RJ45 Gigabit Ethernet | USB Type-C | RJ45 Gigabit Ethernet | Mezzanine connector
- Flight heritage
- The Q8S, the Flight Model (FM) version of the Q8, has been flying since September 2020. datasheet p.1
- Missions flown
- 340 datasheet p.6
- Cores
- 4 ARM Cortex A53 Application Processing Unit · datasheet p.2 2 ARM Cortex R5 Real Time Processing Unit
- FPGA
- Xilinx Zynq UltraScale+ XCZU7EG programmable logic: 504,000 system logic cells, 461,000 flip flops, 274,000 lookup tables, 1,728 DSP slices; Control FPGA Microchip ProASIC3 datasheet p.2 Microchip ProASIC3
- GPIO lines
- 52 datasheet p.1 128 64 LVDS pairs / 128 single-ended GPIO 1.8 V | 13 Product Integration Module (PIM) | 14 single-ended GPIO 1.8 V | 38 max · single-ended GPIO 3.3 V +4
- RAM type
- LPDDR4 datasheet p.2
- Program / boot memory
- 256 MB 2x QSPI Flash (NOR) · datasheet p.2
- Analog inputs
- 8 Product Integration Module (PIM) · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier14 lines, in the manufacturer's own wording
- Mpsoc
- Xilinx Zynq UltraScale+
- Application cpu
- Quad-core ARM Cortex-A53
- Real-time cpu
- Dual-core ARM Cortex-R5
- Gpu
- ARM Mali-400
- Ram
- 4 GB LPDDR4 (ECC)
- Flash
- 2x 256 MB QSPI (NOR)
- Storage
- 2x 128 GB eMMC
- Ethernet
- 4x Gigabit Ethernet MAC
- USB
- 2x USB 3.0/2.0
- CAN
- 2x CAN 2.0B
- Power (Typical)
- 5 W
- Supply voltage
- 9 to 15 V
- Operating system
- Linux SDK
- Radiation tolerance (TID)
- 30 krad (Si)
About
The Xiphos Q8 is a low SWaP computer-on-module built on the Xilinx Zynq UltraScale+ MPSoC, combining quad-core ARM Cortex-A53 application processors, dual-core ARM Cortex-R5 real-time processors, an ARM Mali-400 GPU, and extensive programmable FPGA logic on a single chip.
The Q8 targets space applications requiring higher processing capability than previous generations, with common deployment in radar systems, satellite communications infrastructure, high-resolution imagery analysis, and scientific research initiatives. Its dual-FPGA design — pairing the primary MPSoC with a supervisory FPGA — combined with ECC-protected memory banks and additional radiation mitigation features ensures reliable operation in the space radiation environment.
Xiphos provides a Linux SDK and Vivado skeleton project with over 90% of FPGA resources available for custom application logic. The Q8 has accumulated significant flight heritage and is the foundation for multiple higher-level products in the Xiphos portfolio, including the Q8 OBC, Q8 Camera Board, and Q8 SDR Dock.
