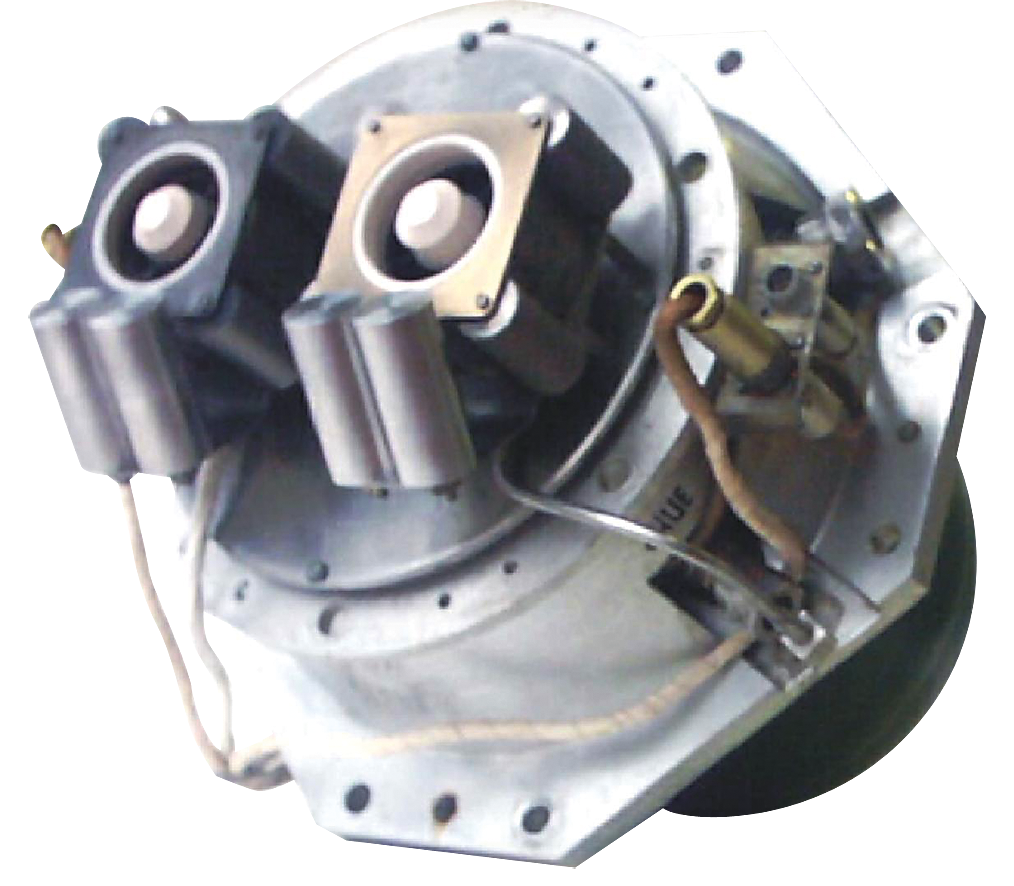

Hall-Engine Electric Jet Propulsion System (EJPS)
Yuzhnoye Design Bureau
The Hall-Engine-Based Electric Jet Propulsion System (EJPS) developed by Yuzhnoye SDO is designed for spacecraft orbit correction, attitude stabilization, and interplanetary flights. Using xenon as the working medium stored at up to 13 MPa, the system delivers Hall thruster thrust between 1 and 66 mN with an exceptionally high specific impulse of 2,200 to 22,000 […]
Typed specifications5 values
Discloses 2 of 11 fields engineers filter by in this category (category median 3).
- Thrust
- 1–66 mN Hall thruster thrust between 1 and 66 mN · product page 1–66 mN
- Specific impulse
- 2 200–22 000 s product page
- Power consumption
- 16–20 W product page
- Feed / tank pressure
- 130 bar product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Working medium
- Xenon
- Maximum bottle pressure (at 50 deg C)
- 13 MPa
- Total thrust impulse
- 50 to 1,000 kN*s
- Hall engine thrust
- 1 to 66 mN
- Thrust excursion
- 15%
- Specific impulse
- 2,200 to 22,000 m/s
- Thrust-to-power ratio
- 16 to 20 W/mN
About
The Hall-Engine-Based Electric Jet Propulsion System (EJPS) developed by Yuzhnoye SDO is designed for spacecraft orbit correction, attitude stabilization, and interplanetary flights. Using xenon as the working medium stored at up to 13 MPa, the system delivers Hall thruster thrust between 1 and 66 mN with an exceptionally high specific impulse of 2,200 to 22,000 m/s, enabling significant propellant mass savings compared to chemical propulsion for long-duration missions. Total thrust impulse ranges from 50 to 1,000 kN·s depending on propellant load. Power efficiency is 16 to 20 W per mN of thrust. The system is well-suited for small to medium satellite orbit raising, north-south station-keeping at GEO, Hall thruster-based orbit transfers, and deep-space missions requiring high delta-V with limited propellant mass budget.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
