Fully automated, multi-station rotary/indexing end-of-line test system for high-volume electronics production.

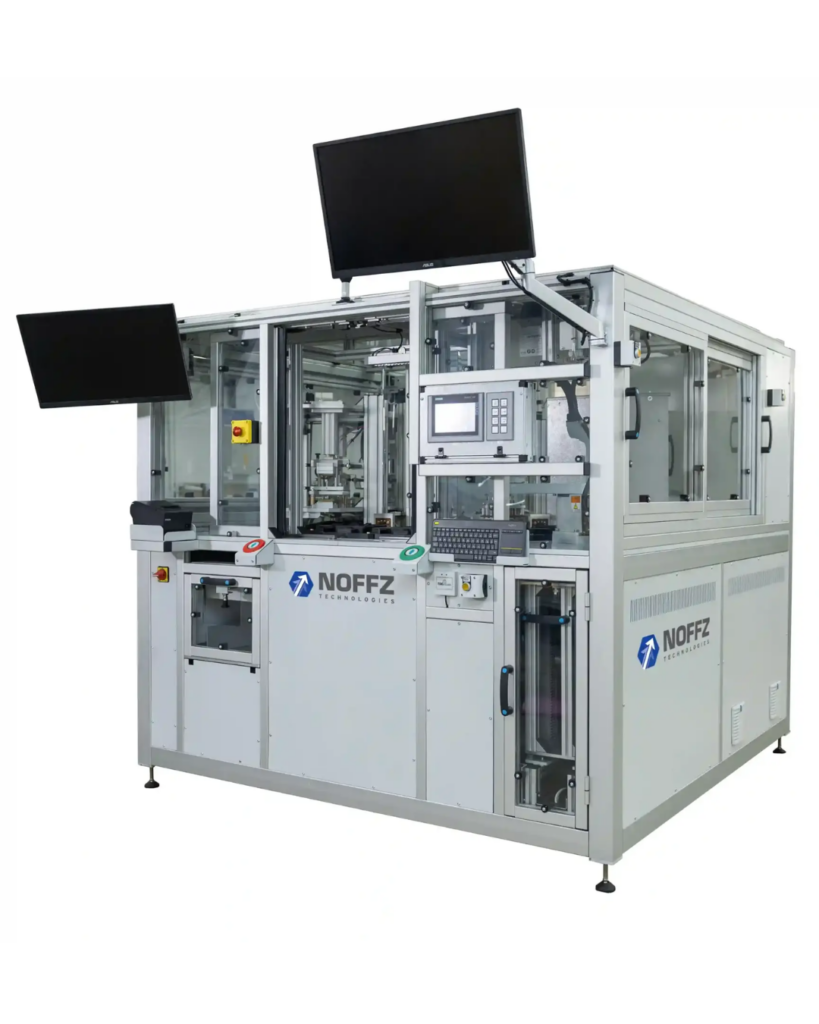

Automated Multi-Purpose Tester UTP 9085
Fully automated, multi-station rotary/indexing end-of-line test system for high-volume electronics production.
Description
The UTP 9085 is a fully automated, multi-stage test system within the NOFFZ Universal Tester Platform, developed for high-volume production environments. It combines automated DUT handling, multi-station workflows, and modular test equipment in a compact solution, enabling fast cycle times, reliable end-of-line processes, and integrated inspection, labeling, and functional testing within a highly flexible, scalable architecture. An automatic rotary/indexing table moves DUTs through multiple test and inspection stations in a continuous, fully automated sequence, with dual-DUT or multi-nest configurations for higher throughput. Optional integrated modules include optical pin/connector inspection, label printing and application, and automated sorting. Typical applications include end-of-line tests for electronic control units, inspection and functional validation of mechatronic assemblies, high-volume production lines requiring automated labeling and sorting, multi-stage test processes such as assembly control plus functional test, and connector inspection to avoid contact defects. Example deployments include a rotary/indexing machine for EOL testing in automotive electronics and a high-volume LTE-NAD test system combining flashing, calibration, verification, and packaging.
Specifications
| Handling | Automatic rotary/indexing table through multiple test/inspection stations |
|---|---|
| DUT capacity | Dual-DUT or multi-nest configurations |
| Optional modules | Optical pin/connector inspection, label printing and application, automated sorting |
| Instrumentation | Modular UTP instrumentation for various signal types and power requirements |
| Software | UTP Software Suite (sequencing, variant management, data logging, traceability, MES/IT connectivity) |
| Design | Compact, space-saving multi-station integration |
