About Northrop Grumman Space Systems

Northrop Grumman Space Systems is the space division of Northrop Grumman Corporation, one of America's largest defense and aerospace companies. The division encompasses launch vehicles, satellite manufacturing, space systems, and space logistics capabilities developed through Northrop's acquisition of Orbital ATK in 2018.

Northrop Grumman manufactures the Antares rocket (for NASA Commercial Resupply Services with the Cygnus spacecraft) and the Pegasus XL air-launched orbital rocket. The company developed the OmegA rocket (cancelled in 2020 after SpaceX won the National Security Space Launch contract) and is now partnering with Firefly Aerospace on a next-generation medium-lift vehicle.

The Cygnus spacecraft provides pressurized cargo delivery to the ISS and has completed over 20 successful resupply missions. Northrop Grumman also manufactures the James Webb Space Telescope sunshield, AEHF military communications satellites, the GeoStar communications satellite bus, and advanced payloads for NRO and other classified programs.

Northrop Grumman Space is also developing Mission Extension Vehicles (MEVs) — spacecraft that dock with GEO satellites to extend their operational life, representing a growing space logistics market. The MEV-1 and MEV-2 have successfully docked with and extended the lives of aging Intelsat satellites.

Milestones

2018 Northrop Grumman acquires Orbital ATK, creating Space Systems division
2020 MEV-1 successfully docks with Intelsat satellite in GEO — first commercial life extension mission
2022 Cygnus completes 18th ISS cargo mission
2024 Partnership with Firefly Aerospace for next-generation medium-lift launch vehicle

Capabilities

Carries 12

SmallSat <50 kg SmallSat 100–200 kg SmallSat 200–500 kg SmallSat 500–1000 kg 1U CubeSat 1.5U CubeSat 2U CubeSat 3U CubeSat 4U CubeSat 6U CubeSat 8U CubeSat 12U CubeSat

Target satellites

up to 1 735 kg payload mass

Launch vehicles 2

Minotaur IV Pegasus XL

Delivers to 4

LEO SSO PO ELLIPTICAL

Company Info

Headquarters Falls Church, Virginia, USA, United States

Offices Space Systems sector — Dulles, United States ISS resupply launches — Wallops Island, United States

Founded 1939 (87 years)

Specializations

launch-vehicles satellite-platforms orbital-transfer

Website northropgrumman.com/space ↗

LinkedIn linkedin.com/company/northrop-grumman ↗

Photos 2

Products

Flight-proven

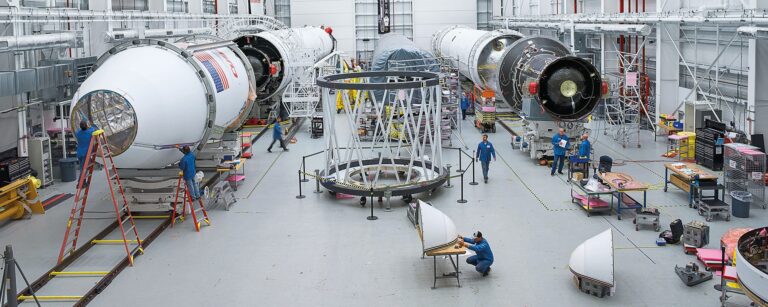

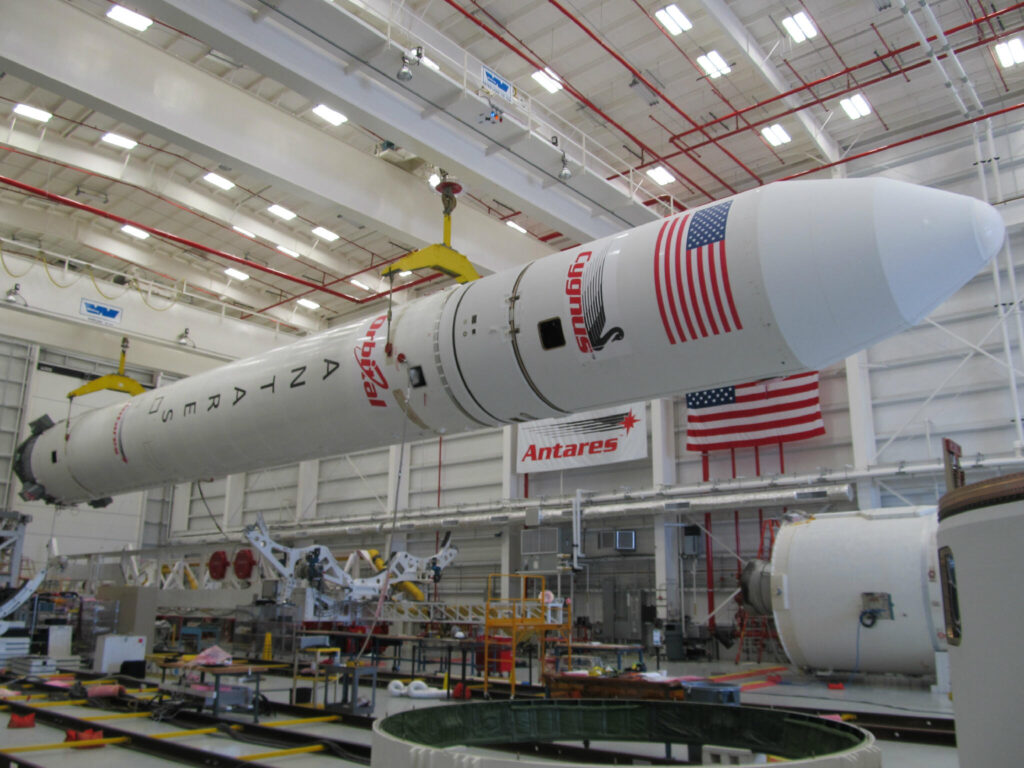

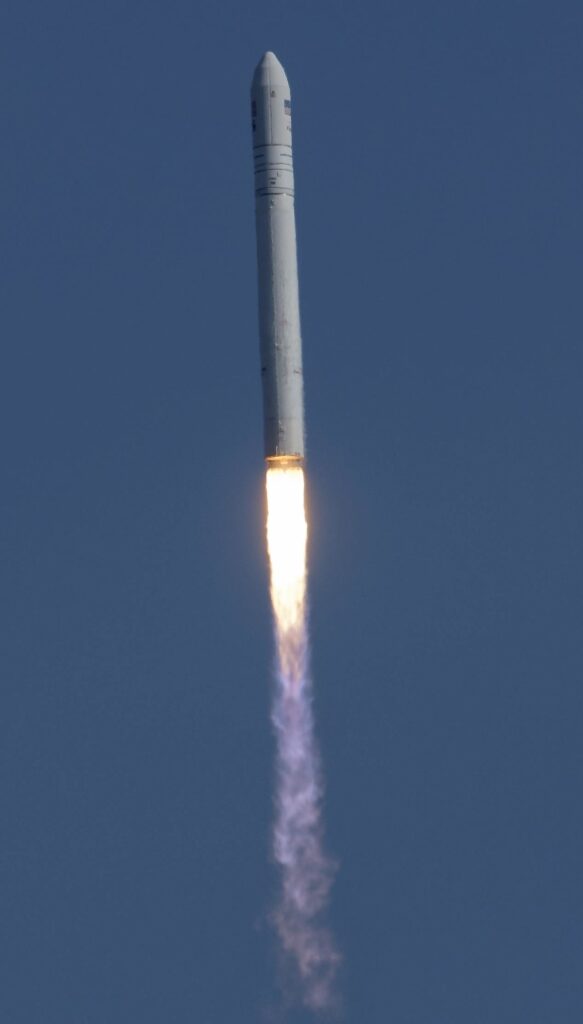

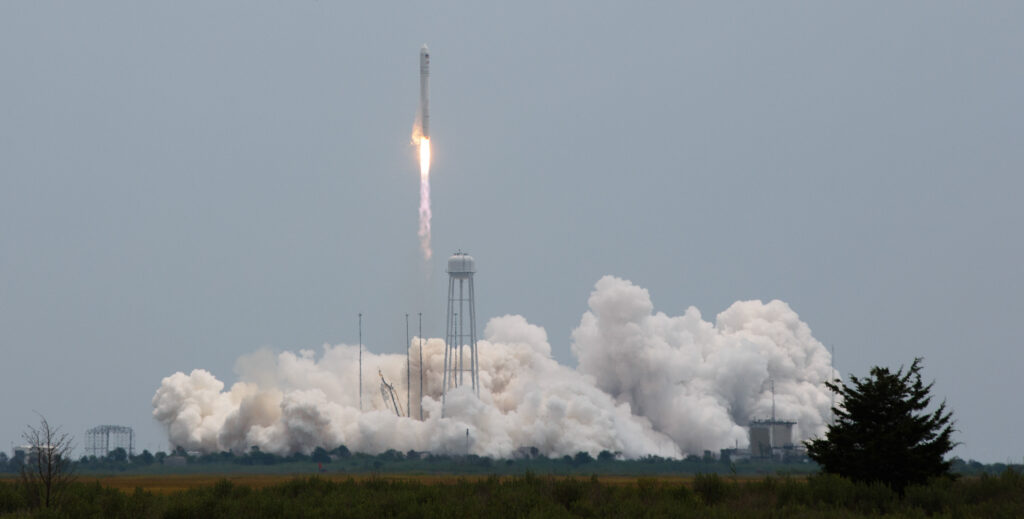

Antares 330 is Northrop Grumman's next-generation, two-stage expendable rocket designed to launch Cygnus cargo spacecraft to the ISS, replacing the retired Antares 230+ with a new Firefly Aerospace-built first stage.

3 10

Stages	Two-stage: liquid-fueled first stage + solid-fueled second stage
First stage engines	7x Firefly Aerospace Miranda engines (RP-1/LOX)
First stage thrust	~7,200 kN combined
Second stage	Castor 30XL solid rocket motor
Diameter	3.9 m (payload fairing / core)
Payload to LEO/iss transfer orbit	Up to 10,500 kg
Payload fairing	3.9 m diameter, removable 'pop-top' nose cone for late cargo loading
Launch site	Wallops Flight Facility, Virginia (Pad 0 A)
Primary mission	Launch Cygnus cargo spacecraft on ISS resupply missions
Flight heritage/status (mid-2026)	Antares 330 has not yet flown; first launch targeted no earlier than 2027. Predecessor Antares 230+ flew 8 consecutive successful Cygnus missions (Nov 2019-Aug 2023) before retirement; earlier Antares 130 suffered a catastrophic launch failure on Oct 28, 2014 (Orb-3 mission).

Flight-proven

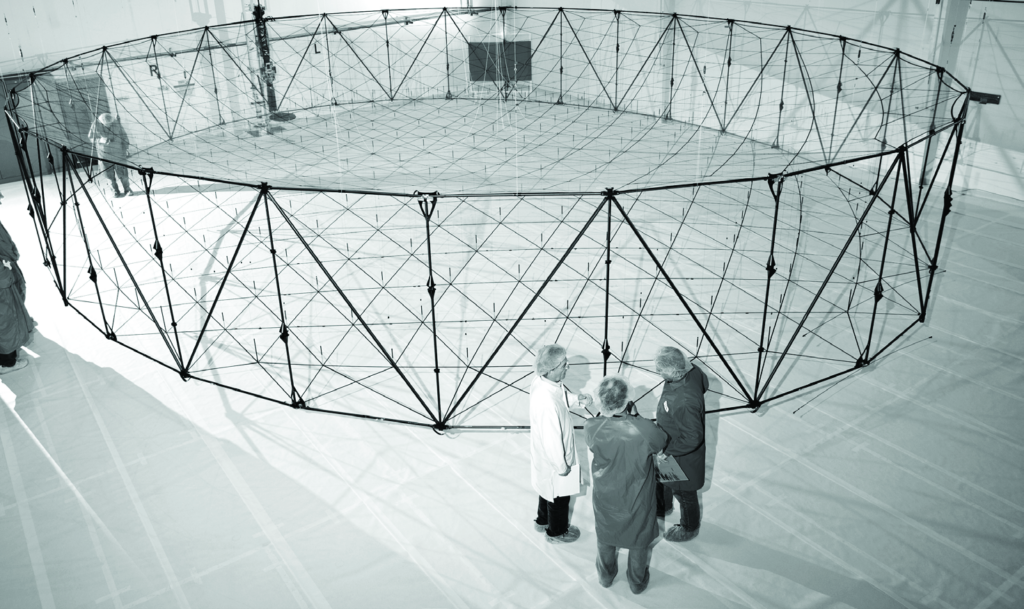

Large-aperture deployable mesh reflector antenna, scalable from 3 to 22 meters, with over 150 years of collective on-orbit success across UHF-to-Ka-band missions.

1 7

Aperture range	3 to 22 meters
Frequency coverage	UHF through beyond Ka-band (V-Band)
Am-1 class	Scalable 6-22 meters, extensive flight heritage
Am-2 class	Optimized 18+ meters, 40% reduced stowed height vs AM-1
Am-lite class	Optimized 3-8 meters, 50% mass reduction vs AM-1
Am-lite efficiency	55% at 31 GHz / 45% at 50 GHz (5.2 m reflector)
Flight heritage	>150 years collective on-orbit success, 11+ successful deployments

Flight-proven TRL 9 · Flight-proven

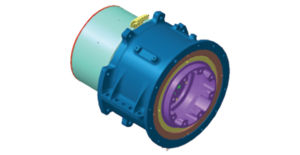

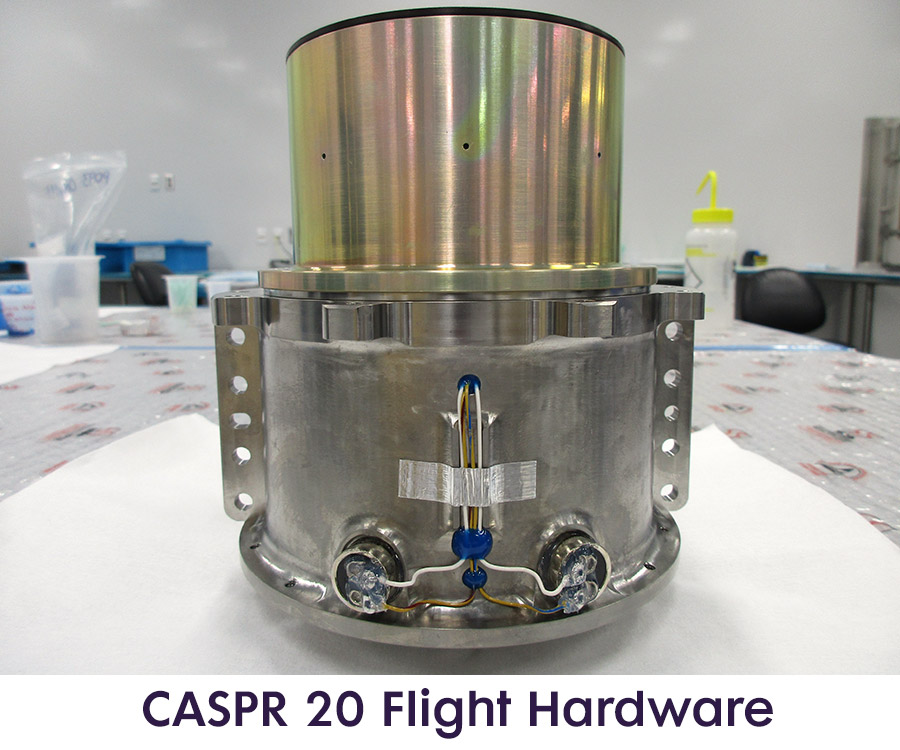

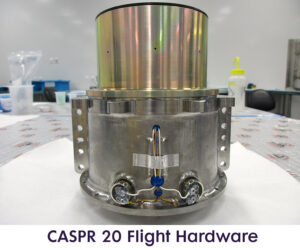

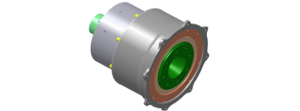

Northrop Grumman's Common Space Vehicle Mechanisms are modular actuators designed for stowing and articulating spacecraft payloads and solar arrays, with a focus on long-life, low disturbance, and precision pointing.

3 15

Flight heritage	40+ years, 100% mission success, over 50 missions
Deployment actuators TRL	9
Solar array drive assembly TRL	9
Modular slip ring configurations	20 or 30 ring modules
Modular slip ring maximum modules	Up to four modules
Modular slip ring maximum circuits	120 circuits
Range of Travel	<340 deg
Mass	75-84 lbs
Lifetime	30 (1x)(1x10^6 deg)
Max Rate	1.60 deg/s
Resolver Accuracy	.026 deg
Stiffness, Torsion	1.7 (1x10^6 in-lb/rad)
Stiffness, Bending	~4.6 (1x10^6 in-lb/rad)
Drive Torque	615 in-lb
Motor Type	2 Phase

Flight-proven

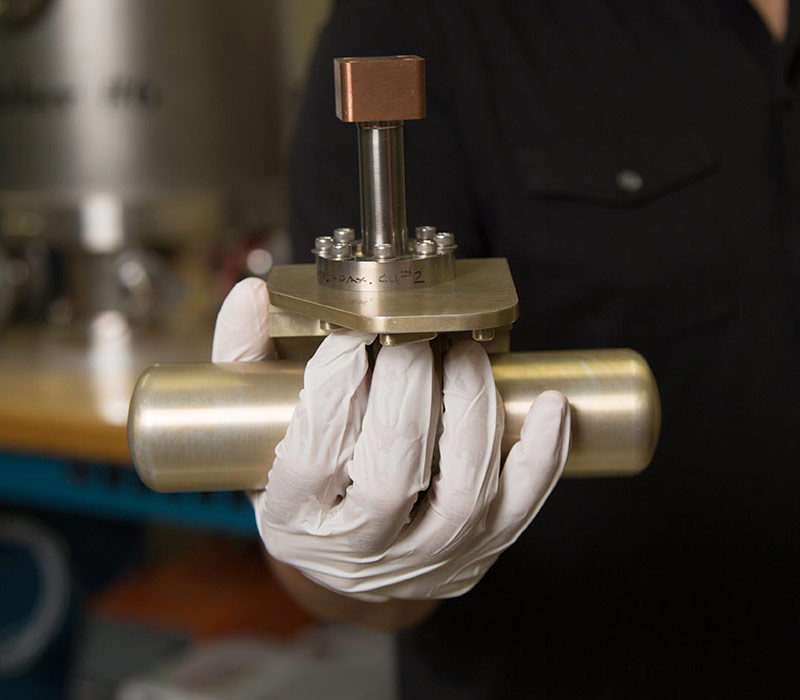

Northrop Grumman's pulse tube cryocoolers provide high reliability for critical space missions, operating without moving parts for extended lifespans.

2 16

On-orbit operation	More than 300 combined years
Operating mechanism	Without moving parts
Applications	Missile defense, climate science, astronomy, weather tracking and prediction
Scalability	Scalable for large-scale and robust spacecraft, and for smaller, more proliferated spacecraft designs
Flight heritage	NASA’s James Webb Space Telescope
Cooling range	1.7 to 200 Kelvin
Interface	RS422 and 1553
Refrigeration Capacity	2 W at 45 K
Refrigeration Capacity (2)	8 W at 77 K
Refrigeration Capacity (3)	23 W at 150 K
Compressor input power	Up to 180 W
Reliability	> 90% at 87,600 hours (10 years)
Exported Vibration	< 50 mN drive axis
Exported Vibration (2)	< 200 mN pulse tube axis
Mass (single stage)	< 4.5 kg
Mass (electronics)	< 3.8 kg

Flight-proven

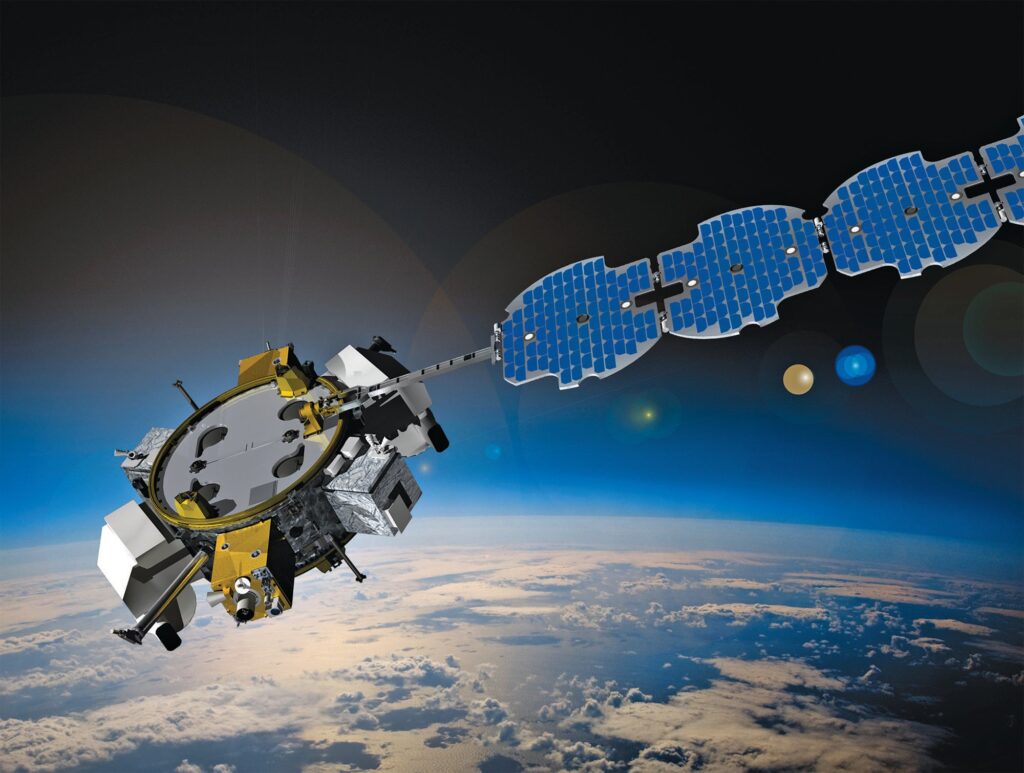

The ESPAStar platform is a modular and cost-effective spacecraft bus that utilizes a customized EELV Secondary Payload Adapter (ESPA) ring to host technology development and operational payloads.

1 15

Espastar-d dry mass	430-470 kg
Espastar-d dimensions	157.5 cm dia x 61 cm ht
Espastar-d delta-v	400-800 m/sec
Espastar-d payload mass	>1,920 kg
Espastar-hp dry mass	<900 kg
Espastar-hp fuel capacity	558 kg
Espastar-hp mission duration	5-7 years
Espastar-hp payload power	3 kW base, up to 4 kW
Espastar-slv payload mass	600 kg
Espastar-slv delta-v	235 m/sec
Espastar-lt payload power	>25 W (EOL), 1-2 panel trickle charge
Espastar-ep delta-v	2,000 m/sec
Espastar-ep solar array power	6.8 kW BOL (UltraFlex-M)
Pointing control (D/HP/EP)	<50 μrad (1σ)
Payload ports	Up to 6 hosted or 12 separable payloads

Flight-proven

Fiber-optic inertial measurement unit for space applications with flight heritage on Mars rovers and deep-space probes.

Gyro bias repeatability	1°/hr, 1σ
Angle random walk	<0.07°/√hr
Accelerometer bias repeatability	300 µg, 1σ
Dynamic range (max)	1,000°/sec
Power	12 W nominal, regulated ±5 Vdc and ±15 Vdc
Dimensions	3.5 in. diameter x 3.35 in. height (8.89 x 8.51 cm)
Mass	1.65 lb (748 g)
Operating temperature	-54°C to +71°C operating
Electrical interface	RS-422/485 serial data
Enclosure	Hermetically sealed

Flight-proven

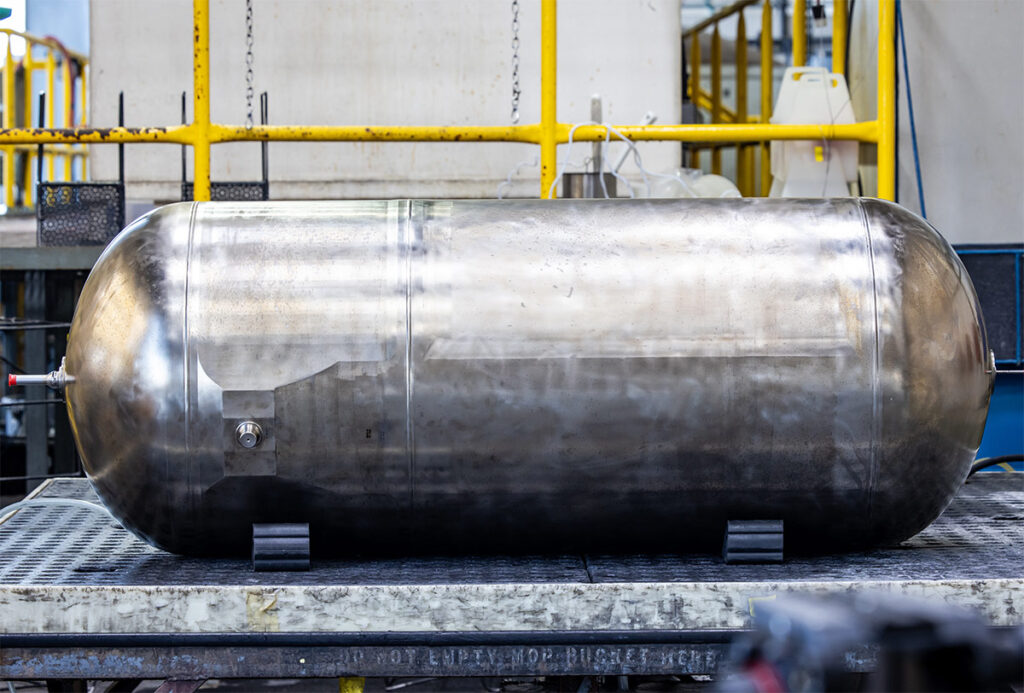

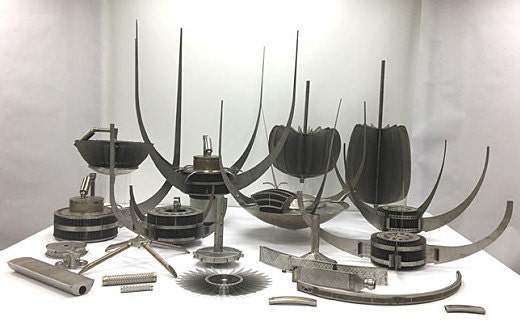

A family of qualified/flight-proven propellant management device (PMD) tanks from Northrop Grumman, used to store and deliver fuel or oxidizer to spacecraft propulsion systems in microgravity.

1 64

80213-1	Total Volume: 1,232 in³ / 20.2 l; Diameter: 13.33 in ID (339 mm ID); Weight: 4.00 lbm (1.8 kg); Operating Pressure: 310 psig (21.4 bar); Propellant Capacity: —; Program: CLASSIFIED; Note: C, 80213 Qualified Environments
80277-1	Total Volume: 18,450 in³ / 302.5 l; Diameter: 32.84 in ID (834 mm ID); Weight: 32.60 lbm (14.8 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 894 lbm NTO (405.5 kg); Program: INSAT; Note: C, 80277 Qualified Environments
80296-1	Total Volume: 3,575 in³ / 58.6 l; Diameter: 19.03 in ID (483 mm ID); Weight: 8.00 lbm (3.63 kg); Operating Pressure: 425 psig (29.3 bar); Propellant Capacity: —; Program: RCA Sat COM; Note: 80296 Qualified Environments
80301-1	Total Volume: 20,900 in³ / 342.6 l; Diameter: 34.25 in ID (870 mm ID); Weight: 34.00 lbm (15.4 kg); Operating Pressure: 255 psig (17.6 bar); Propellant Capacity: 1,129 lbm (512.1 kg); Program: ARABSAT; Note: C, 80301 Qualified Environments
80304-1	Total Volume: 3,575 in³ / 58.6 l; Diameter: 19.03 in ID (483 mm ID); Weight: 7.75 lbm (3.5 kg); Operating Pressure: 400 psig (27.6 bar); Propellant Capacity: 2,349 in³ (38.5 liters); Program: SPACENET; Note: C
80309-1	Total Volume: 9,210 in³ / 151 l; Diameter: 22.14 in ID x 32 Long (562 mm ID x 813 mm long); Weight: 17.80 lbm (8.1 kg); Operating Pressure: 318 psig (21.9 bar); Propellant Capacity: Note G; Program: CLASSIFIED; Note: C, G
80310-5	Total Volume: 13,743 in³ / 225.3 l; Diameter: 23 in ID x 40 Long (584 mm ID x 1016 mm long); Weight: 33.95 lbm (15.4 kg); Operating Pressure: 255 psig (17.6 bar); Propellant Capacity: 682 lbm (309.4 kg); Program: EUROSTAR; Note: C
80317-105	Total Volume: 23,400 in³ / 383.6 l; Diameter: 27.68 in ID x 48 Long (703 mm ID x 1219 mm long); Weight: 60.00 lbm (27.2 kg); Operating Pressure: 350 psig (24.1 bar); Propellant Capacity: VARIABLE; Program: CLASSIFIED; Note: C, 80317 Qualified Environments
80324-1	Total Volume: 18,390 in³ / 301.5 l; Diameter: 32.84 in ID (834 mm ID); Weight: 44.50 lbm (20.2 kg); Operating Pressure: 400 psig (27.6 bar); Propellant Capacity: 587 lbm (266 kg); Program: MILSTAR; Note: C, 80324 Qualified Environments
80334-1	Total Volume: 10,679 in³ / 175.1 l; Diameter: 23.862 in OD x 33.312 in shoulder-to-shoulder (606 mm OD x 846 mm shoulder-to-shoulder); Weight: 28.41 lbm (12.9 kg); Operating Pressure: 255 psig (17.6 bar); Propellant Capacity: 9,274 in³ (152 liters); Program: INMARSAT 2; Note: C, 80334 Qualified Environments
80338-1	Total Volume: 34,500 in³ / 565.6 l; Diameter: 40.44 in ID (1027 mm ID); Weight: 56.00 lbm (25.4 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 1,710 lbm (775.7 kg); Program: GOES; Note: C, 80338 Qualified Environments
80339-1	Total Volume: 15,598 in³ / 255.7 l; Diameter: 31.06 in ID (789 mm ID); Weight: 30.10 lbm (13.7 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 549 lbm (249 kg); Program: S-5000; Note: C, 80339 Qualified Environments
80340-1	Total Volume: 30,728 in³ / 503.8 l; Diameter: 38.97 in ID (990 mm ID); Weight: 37.75 lbm (17.1 kg); Operating Pressure: 276 psig (19 bar); Propellant Capacity: 1,495 lbm (678.1 kg); Program: S-5000; Note: C, 80340 Qualified Environments
80348-1	Total Volume: 11,350 in³ / 186.1 l; Diameter: 28 in ID (711 mm ID); Weight: 43.0 lbm (19.5 kg); Operating Pressure: 435 psig (30 bar); Propellant Capacity: 10,215 in³ (167 liters); Program: —; Note: —
80350-1	Total Volume: 22,450 in³ / 368 l; Diameter: 35.1 in ID (892 mm ID); Weight: 28.90 lbm (13.1 kg); Operating Pressure: 260 psig (17.9 bar); Propellant Capacity: 22,450 in³ (3679 liters); Program: HS-601; Note: 80350 Qualified Environments
80352-1	Total Volume: 39,440 in³ / 646.6 l; Diameter: 42 in ID (1067 mm ID); Weight: 51.50 lbm (23.4 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 39,230 in³ (642.9 liters); Program: MO, TELSTAR, S7000; Note: C, 80352 Qualified Environments, 80352 Protoflight Environments
80353-1	Total Volume: 3,575 in³ / 58.6 l; Diameter: 19.03 in ID (483 mm ID); Weight: 8.50 lbm (3.9 kg); Operating Pressure: 400 psig (27.6 bar); Propellant Capacity: 3,575 in³ (58.6 liters); Program: MARS OBSERVER; Note: C, 80353 Protoflight Environments
80356-1	Total Volume: 26,750 in³ / 438.5 l; Diameter: 28 in ID x 48.5 Long (711 mm ID x 1232 mm long); Weight: 60.00 lbm (27.2 kg); Operating Pressure: 325 psig (22.4 bar); Propellant Capacity: 26,700 in³ (437.5 liters); Program: CLASSIFIED; Note: 80356 Qualified Environments
80363-11	Total Volume: 77,800 in³ / 1275.4 l; Diameter: 48.9 in ID x 59.66 Long (1242 mm ID x 1515 mm long); Weight: 93.50 lbm (42.4 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 77,800 in³ (1274.9 liters); Program: INTELSAT VIIA; Note: C, L, 80363 Qualified Environments, 80363 Protoflight Environments
80364-1	Total Volume: 5,580 in³ / 91.5 l; Diameter: 22.14 in ID (562 mm ID); Weight: 12.50 lbm (5.7 kg); Operating Pressure: 400 psig (27.6 bar); Propellant Capacity: 150 lbm (68 kg); Program: INMARSAT 3; Note: 80364 Protoflight Environments
80366-1	Total Volume: 61,028 in³ / 1000.5 l; Diameter: 48.9 in ID (1242 mm ID); Weight: 73.20 lbm (33.2 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 61,028 in³ (1000 liters); Program: N-STAR; Note: C, 80366 Qualified Environments, 80366 Protoflight Environments
80367-1	Total Volume: 77,800 in³ / 1275.4 l; Diameter: 48.9 in ID x 59.66 Long (1242 mm ID x 1515 mm long); Weight: 93.50 lbm (42.4 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 77,800 in³ (1274.9 liters); Program: INTELSAT VIIA; Note: C, L, 80367 Qualified Environments, 80367 Protoflight Environments
80373-1	Total Volume: 20,580 in³ / 337.4 l; Diameter: 34 in ID (864 mm ID); Weight: 30.50 lbm (13.8 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 20,579 in³ (337.2 liters); Program: S7000; Note: C, 80373 Qualified Environments, 80373 Protoflight Environments
80375-1	Total Volume: 9,850 in³ / 161.5 l; Diameter: 24.6 in ID x 29 Long (625 mm ID x 737 mm long); Weight: 19.00 lbm (8.6 kg); Operating Pressure: 420 psig (29 bar); Propellant Capacity: 253 lbm (114.8 kg); Program: IRIDIUM; Note: 80375 Qualified Environments
80379-1	Total Volume: 3,660 in³ / 60 l; Diameter: 19.06 in ID (484 mm ID); Weight: 10.70 lbm (4.9 kg); Operating Pressure: 377 psig (26 bar); Propellant Capacity: 3,660 in³ (60 liters); Program: NEAR; Note: M
80380-1	Total Volume: 61,028 in³ / 1000.5 l; Diameter: 48.9 in ID (1242 mm ID); Weight: 70.00 lbm (31.8 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 61,028 in³ (1000 liters); Program: TEMPO; Note: 80380 Qualified Environments
80387-1	Total Volume: 7,700 in³ / 126.2 l; Diameter: 22.14 in ID x 29.47 Long (562 mm ID x 749 mm long); Weight: 20.00 lbm (9.1 kg); Operating Pressure: 400 psig (27.6 bar); Propellant Capacity: 220 lbm (99.8 kg); Program: CLASSIFIED; Note: C, 80387 Qualified Environments
80390-1	Total Volume: 19,984 in³ / 327.5 l; Diameter: 21.25 in ID x 65 Long (540 mm ID x 1652 mm long); Weight: 33.50 lbm (15.2 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: —; Program: A2100 Ox Family; Note: 80390 Qualified Environments
80391-1	Total Volume: 92,247 in³ / 1512.3 l; Diameter: 35.26 in ID x 108.87 boss-to-boss (896 mm ID x 2765 mm boss-to-boss); Weight: 122.00 lbm (55.3 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 87,634 in³ (1436.1 liters); Program: A2100 Fuel Family; Note: 80391 Qualified Environments
80394-1	Total Volume: 13,979 in³ / 229 l; Diameter: 21.25 in ID x 47.8 Long (540 mm ID x 1214 mm long); Weight: 25.7 lbm (11.7 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 13,979 in³ (229.1 liters); Program: A2100 Ox Family; Note: 80394 Qualified Environments
80395-1	Total Volume: 64,515 in³ / 1057.7 l; Diameter: 35.5 in ID x 80.5 Long (902 mm ID x 2045 mm long); Weight: 93.20 lbm (42.3 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 61,289 in³ (1004.3 liters); Program: A2100 Fuel Family; Note: 80395 Qualified Environments
80396-1	Total Volume: 3,776 in³ / 61.9 l; Diameter: 19.32 in ID (488 mm ID); Weight: 11.50 lbm (5.2 kg); Operating Pressure: 600 psig (41.4 bar); Propellant Capacity: VARIABLE; Program: LUNAR PROSPECTOR; Note: —
80398-1	Total Volume: 26,750 in³ / 438.5 l; Diameter: 28.5 in ID x 54.99 Long (597 mm ID x 1394 mm long); Weight: 50.00 lbm (22.7 kg); Operating Pressure: 350 psig (24.1 bar); Propellant Capacity: 26,750 in³ (438.4 liters); Program: SPS-95, SPS-200; Note: 80398 Qualified Environments
80399-1	Total Volume: 32,610 in³ / 534.6 l; Diameter: 35.1 in ID x 46.42 boss-to-boss (892 mm ID x 1179 mm long); Weight: 41.00 lbm (18.6 kg); Operating Pressure: 260 psig (17.9 bar); Propellant Capacity: 1,160 lbm (526.2 kg); Program: HS-601 HP; Note: 80399 Qualified Environments
80403-101	Total Volume: 77,805 in³ / 1275.5 l; Diameter: 48.9 in ID x 57.8 Long (1242 mm ID x 1468 mm long); Weight: 87.61 lbm (39.7 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 77,805 in³ (1275 liters); Program: EXTENDED TEMPO; Note: 80403 Protoflight Environments
80404-5	Total Volume: 73,000 in³ / 1,196 l; Diameter: 52 in Sphere (1321.9 mm); Weight: —; Operating Pressure: 150 psig (10.34 bar); Propellant Capacity: —; Program: ICM; Note: —
80405-1	Total Volume: 19,984 in³ / 327.6 l; Diameter: 21.25 in OD x 65.03 Long (540 mm OD x 1652 mm long); Weight: 33.50 lbm (15.2 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 19,984 in³ (327.5 liters); Program: A2100 Ox Family; Note: N, C
80406-1	Total Volume: 13,979 in³ / 229.2 l; Diameter: 21.25 in OD x 47.8 Long (540 mm OD x 1214 mm long); Weight: 25.70 lbm (11.7 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 13,979 in³ (229.1 liters); Program: A2100 Ox Family; Note: N, C
80411-1	Total Volume: 87,575 in³ / 1435.7 l; Diameter: 48.9 in ID x 63.34 Long (1242 mm ID x 1609 mm long); Weight: 99.20 lbm (45 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 87,575 in³ (1435.1 liters); Program: ETS-8; Note: 80411 Qualified Environments
80415-1	Total Volume: 22,450 in³ / 368 l; Diameter: 35.1 in ID (892 mm ID); Weight: 28.90 lbm (13.1 kg); Operating Pressure: 260 psig (17.9 bar); Propellant Capacity: 22,450 in³ (367.9 liters); Program: HS-601; Note: —
80420-1	Total Volume: 9,210 in³ / 151 l; Diameter: 22.14 in ID x 32 Long (562 mm ID x 813 mm long); Weight: 17.80 lbm (8.1 kg); Operating Pressure: 318 psig (21.9 bar); Propellant Capacity: Note G; Program: BSAT; Note: C, G, 80420 Qualified Environments
80421-1	Total Volume: 522 in³ / 8.55 l; Diameter: 5.0 in Diameter x 29 long (126 mm diameter x 717 mm long); Weight: 4.25 lbm (1.93 kg); Operating Pressure: 400 psig (27.6 bar); Propellant Capacity: 522 in³ (8.6 liters); Program: SBD/TOMS; Note: 80421 Qualified Environments
80422-1	Total Volume: 77,805 in³ / 1275.5 l; Diameter: 48.9 in ID x 57.8 Long (1242 mm ID x 1468 mm long); Weight: 87.61 lbm (39.7 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 77,805 in³ (1275 liters); Program: EXTENDED TEMPO; Note: 80422 Protoflight Environments
80425-1	Total Volume: 57,215 in³ / 938 l; Diameter: 35.5 in OD x 75 in Long (902 mm OD x 1905 mm long); Weight: 67.73 lbm (30.7 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 1,980 lbm (898.1 kg); Program: STAR-2; Note: Fuel, 80425 Qualified Environments
80425-101	Total Volume: 57,215 in³ / 938 l; Diameter: 35.5 in OD x 75 in Long (902 mm OD x 1905 mm long); Weight: 73 lbm (33.1 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 1,980 lbm (898.1 kg); Program: STAR-2; Note: Fuel
80426-1	Total Volume: 9,712 in³ / 159.2 l; Diameter: 21.25 in OD x 34.69 (541 mm OD x 881 mm long); Weight: 20.00 lbm (9.1 kg); Operating Pressure: 315 psig (21.7 bar); Propellant Capacity: 492 lbm (223.2 kg); Program: STAR 2; Note: Ox, 80426 Qualified Environments
80430-1	Total Volume: 34,481 in³ / 565.3 l; Diameter: 40.44 in ID (1027 mm ID); Weight: 48.00 lbm (21.8 kg); Operating Pressure: 330 psig (22.8 bar); Propellant Capacity: 34,481 in³ (565 liters); Program: UNKNOWN; Note: 80430 Qualified Environments
80432-1	Total Volume: 52,335 in³ / 858 l; Diameter: 35.5 in OD x 69.2 Long (902 mm OD x 1758 mm long); Weight: 67.73 lbm (30.7 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 52,335 in³ (857.6 liters); Program: STAR-2; Note: Fuel
80433-1	Total Volume: 12,150 in³ / 199.2 l; Diameter: 22.14 in ID x 39.2 Long (562 mm ID x 994 mm long); Weight: 20.00 lbm (9.1 kg); Operating Pressure: 325 psig (22.4 bar); Propellant Capacity: 95% max. fill fraction; Program: MESSENGER; Note: Fuel, 80433 Qualified Environments, 80433 Protoflight Environments
80434-1	Total Volume: 117,154 in³ / 1920.6 l; Diameter: 35.6 in OD x 133.9 in Long (904 mm OD x 3401 mm long); Weight: 208.00 lbm (94.3 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 117,154 in³ (1919.8 liters); Program: ASTROLINK; Note: Fuel
80435-1	Total Volume: 26,345 in³ / 431.9 l; Diameter: 21.3 in OD x 83.2 in Long (541 mm OD x 2080 mm long); Weight: 64.70 lbm (29.3 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 26,345 in³ (431.7 liters); Program: ASTROLINK; Note: Ox, 80435 Qualified Environments
80440-1	Total Volume: 61,028 in³ / 1000.5 l; Diameter: 48.9 in ID (1242 mm ID); Weight: 70.00 lbm (31.8 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 61,028 in³ (1000 liters); Program: PSA; Note: —
80441-1	Total Volume: 77,805 in³ / 1275.5 l; Diameter: 48.9 in ID x 57.8 Long (1242 mm ID x 1468 mm long); Weight: 91.00 lbm (41.3 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 77,805 in³ (1275 liters); Program: EXTENDED TEMPO; Note: 80441 Protoflight Environments
80442-1	Total Volume: 87,575 in³ / 1435.7 l; Diameter: 48.9 in ID x 63.34 Long (1242 mm ID x 1609 mm long); Weight: 100.50 lbm (45.6 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 87,575 in³ (1435.1 liters); Program: EXTENDED TEMPO; Note: 80442 Protoflight Environments
80443-1	Total Volume: 86,050 in³ / 1410.7 l; Diameter: 35.5 in ID x 100.6 Long (901 mm ID x 2553 mm long); Weight: 110.90 lbm (50.3 kg); Operating Pressure: 285 psig (19.7 bar); Propellant Capacity: 81,748 in³ (95% FF) (1339.6 liters, 95% FF); Program: A2100 Fuel Family; Note: —
80454-1	Total Volume: 2,280 in³ / 37.4 l; Diameter: 16.5 in ID (419 mm ID); Weight: 11.4 lbm (5.2 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 1,520 in³ (24.9 liters); Program: Orbital Express; Note: Fuel
80456-1	Total Volume: 87,575 in³ / 1435.7 l; Diameter: 48.9 in ID x 63.3 Long (1242 mm ID x 1609 mm long); Weight: 100.50 lbm (45.6 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 87,575 in³ (1435.1 liters); Program: MRO; Note: Fuel and Ox
80462-1	Total Volume: 9,850 in³ / 161.5 l; Diameter: 24.6 in ID x 29 Long (625 mm ID x 736 mm long); Weight: 22.0 lbm (10 kg); Operating Pressure: 420 psig (29 bar); Propellant Capacity: 9,850 in³ (161.4 liters); Program: NFIRE; Note: Fuel, 80462 Protoflight Environments
80466-1	Total Volume: 34,481 in³ / 565.3 l; Diameter: 40.44 in ID (1030 mm ID); Weight: 48.00 lbm (21.8 kg); Operating Pressure: 330 psig (22.8 bar); Propellant Capacity: 34,481 in³ (565 liters); Program: GLAST; Note: Fuel, 80466 Protoflight Environments
80470-1	Total Volume: 45,161 in³ / 740.4 l; Diameter: 40.5 in ID x 48.8 Long (1029 mm ID x 1240 mm long); Weight: 60.00 lbm (27.2 kg); Operating Pressure: 340 psig (23.4 bar); Propellant Capacity: 45,161 in³ (740.1 liters); Program: UNKNOWN; Note: 80470 Qualified Environments
80471-1	Total Volume: 117,154 in³ / 1920.6 l; Diameter: 35.6 in ID x 133.9 Long (904 mm ID x 3401 mm long); Weight: 208.00 lbm (94.3 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 113,639 in³ (1862.2 liters); Program: SBIRS; Note: —
80474-1	Total Volume: 13,750 in³ / 225.4 l; Diameter: 29.8 in ID (757 mm ID); Weight: 18.60 lbm (8.4 kg); Operating Pressure: 250 psig (17.2 bar); Propellant Capacity: 98% Fill Fraction; Program: UNKNOWN; Note: 80474 Qualified Environments
80476-1	Total Volume: 52,335 in³ / 858 l; Diameter: 35.5 in ID x 70.23 flex plate-to-flex plate (902 mm ID x 1784 mm long); Weight: 63.75 lbm (28.9 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 52,335 in³ (857.6 liters); Program: Optus; Note: —
80480-1	Total Volume: 3,575 in³ / 58.6 l; Diameter: 19.03 in ID (483 mm ID); Weight: 7.90 lbm (3.6 kg); Operating Pressure: 300 psig (20.7 bar); Propellant Capacity: 2,349 in³ (38.5 liters); Program: CLASSIFIED; Note: 80480 Protoflight Qualification Environments

Flight-proven

Monolithic titanium and composite overwrapped pressure vessel (COPV) tanks for high-pressure Xenon, Nitrogen, and Helium spacecraft pressurant storage.

Construction options	Monolithic titanium; Composite Overwrapped Pressure Vessel (COPV)
Qualified gases	Xenon, Nitrogen, Helium

Flight-proven

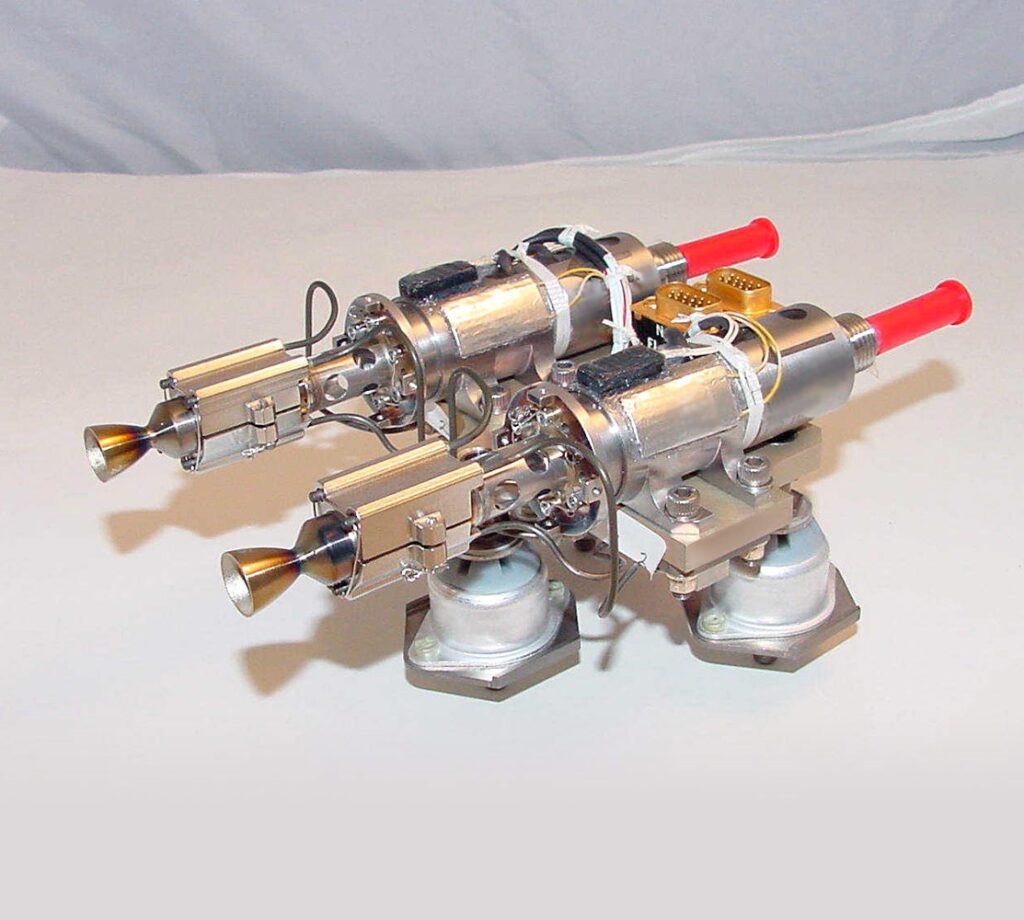

Northrop Grumman offers a comprehensive range of propulsion products and services, including flight-proven systems, bipropellant and monopropellant thrusters, and gel propulsion systems, backed by over four decades of flight experience.

1 11

Mre-0.1 thrust	0.4 N @ 350 psia; Isp 216 sec; 0.5 kg; 180x38 mm
Mre-1.0 thrust	4.4 N; Isp 220 sec; 0.5 kg; 190x38 mm
Mre-4.0 thrust	18 N @ 600 psia; Isp 217 sec; 0.5 kg; 61x206 mm
Mre-5.0 thrust	22 N @ 400 psia; Isp 232 sec; 0.8 kg; 250x38 mm
Mre-15 thrust	86 N @ 400 psia; Isp 228 sec; 1.1 kg; 119x318 mm
Propellant	Hydrazine
Mre-0.1 demonstrated life	34 kg throughput / 117,000 cycles
Mre-1.0 demonstrated life	122 kg throughput / 421,000 cycles
Mre-4.0 demonstrated life	249 kg throughput / 507,000 cycles
Mre-5.0 demonstrated life	456 kg throughput / 340,000 cycles
Mre-15 demonstrated life	970 kg throughput / 105,561 cycles

Flight-proven

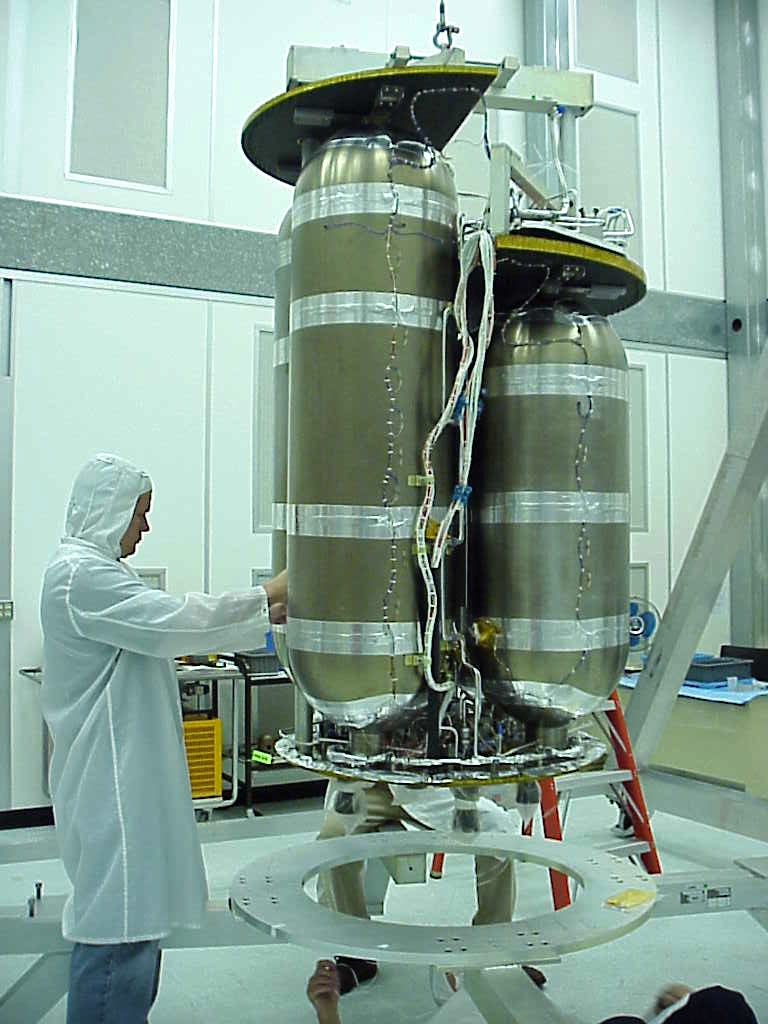

Northrop Grumman offers a range of propulsion and pressurant tanks, including pressure management (PMD) tanks, diaphragm tanks, and motor cases, with six decades of on-orbit heritage.

1 4

Tanks flown	7,000+
On-orbit failures	0
Operational heritage	60+ years
Product family includes	PMD tanks, diaphragm tanks, pressurant tanks, motor cases

Launch Slots

SSO Available

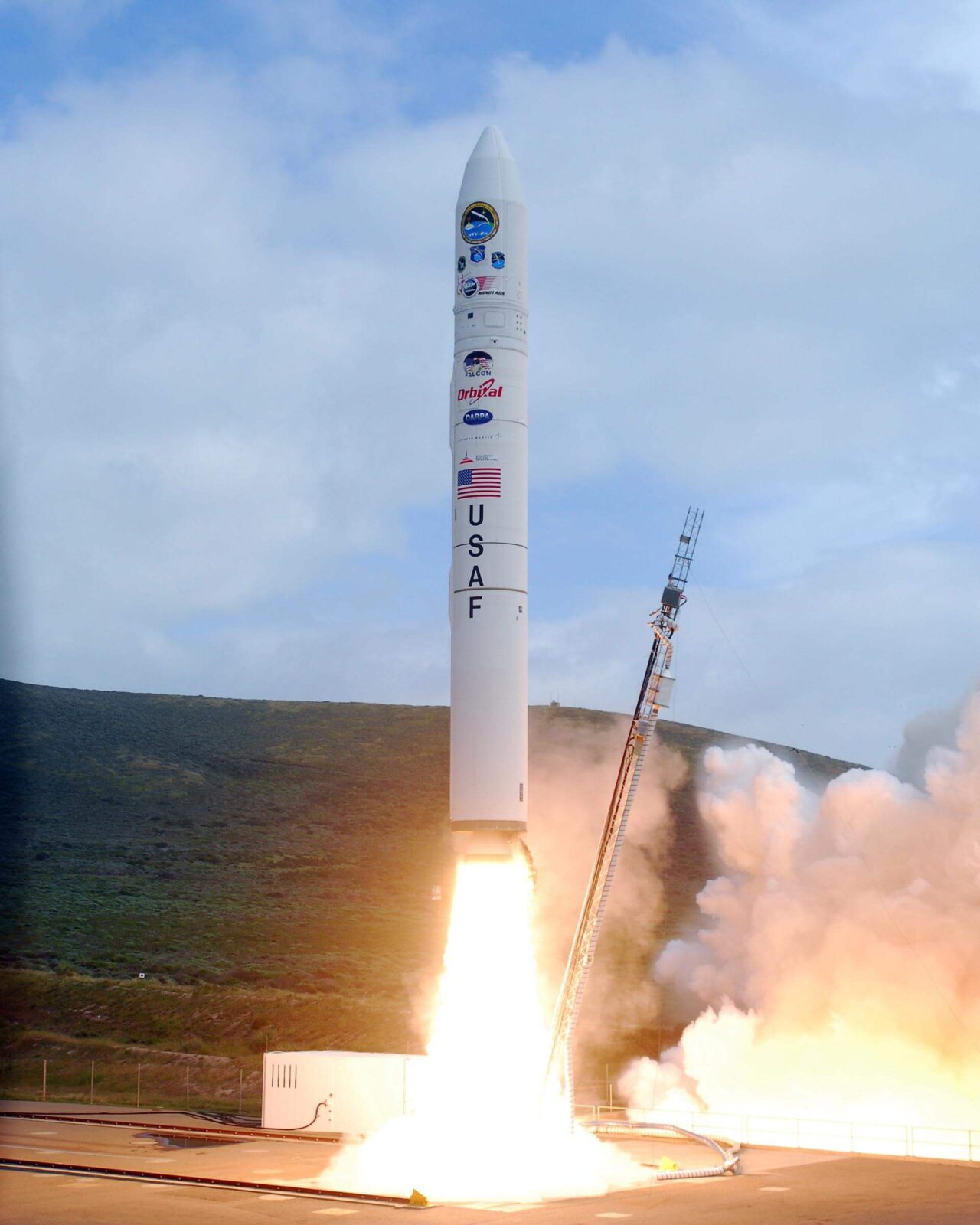

Minotaur IV

30 Jun 2027

Vandenberg SFB, CA, USA

Reviews

No reviews yet — reviews come from buyer accounts that have worked with this company.

Write a review

← All providers

Northrop Grumman Space Systems

About Northrop Grumman Space Systems

Milestones

Capabilities

Photos 2

Products

Antares 330

Antares 330

Description

Specifications

AstroMesh Unfurlable Mesh Antenna Reflector

AstroMesh Unfurlable Mesh Antenna Reflector

Description

Specifications

Common Space Vehicle Mechanisms

Common Space Vehicle Mechanisms

Description

Specifications

Cryocoolers

Cryocoolers

Description

Specifications

ESPAStar

ESPAStar

Description

Specifications

LN-200S Inertial Measurement Unit

LN-200S Inertial Measurement Unit

Description

Specifications

PMD Tanks (Propellant Management Device Tanks)

PMD Tanks (Propellant Management Device Tanks)

Description

Specifications

Pressurant Tanks (Titanium and COPV)

Pressurant Tanks (Titanium and COPV)

Description

Specifications

Propulsion Products and Services

Propulsion Products and Services

Description

Specifications

Propulsion Tanks

Propulsion Tanks

Description

Specifications

Launch Slots

Reviews
