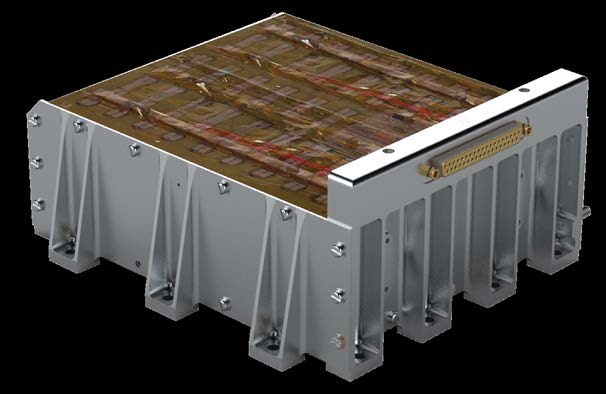

ABSL CM520 8s9p Li-ion Space Battery (28 V, 18 Ah)
EnerSys / ABSL Space Products
532.8 Wh Li-ion space battery in 8s9p topology for a 28 V bus, 4.3 kg.
Typed specifications29 values
Discloses 5 of 12 fields engineers filter by in this category (category median 5).
- Energy
- 532.8 Wh datasheet p.1 532.8 Wh Energy
- Mass
- 4 300 g datasheet p.1 4 300 g Mass (kg measured)
- Capacity
- 18 Ah datasheet p.1 18 Ah Nameplate Capacity
- Cell chemistry
- Li-ion datasheet p.1 Li-ion (unspecified) Li-ion Space Battery, ABSL P20 cell
- Envelope (L×W×H)
- 209 x 190 mm (Footprint) datasheet p.1 117 mm (Height)
- Supply voltage
- 28 V nom. · datasheet p.1 24 V min | 33.6 V max | 24–33.6 V Voltage Range
- Operating temperature
- 0 °C min · Thermal chamber only · datasheet p.2 40 °C max · Thermal chamber only | 0–40 °C Operating (Thermal chamber only)
- Radiation tolerance (TID)
- 10 000 krad cell level · datasheet p.2
- Cell configuration
- 8s9p datasheet p.1
- Connector
- single keyed circular or D-type connector datasheet p.1
- Survival temperature
- -20 °C min · Cell Level Qual only · datasheet p.2 60 °C max · Cell Level Qual only | -20–60 °C Non-Operating (Cell Level Qual only)
- Random vibration
- 20 g RMS random vibration, Overall GRMS · datasheet p.2
- Flight heritage
- variety of missions in a variety of ESA LEO missions, lunar landers and launch vehicles datasheet p.1 over 5.5 billion cell hours of in-orbit heritage using ABSL™ Li-ion cell technology
- Shock qualification
- 3 000 g Shock input at 2000 Hz and 10,000 Hz, 3 shocks per axis · datasheet p.2
- Cell model
- P20 datasheet p.1
- Cell balancing
- none does not require cell balancing electronics · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Cell
- ABSL P20
- Topology
- 8s9p
- Voltage range
- 33.6 - 24.0 V
- Nameplate capacity
- 18 Ah
- Energy
- 532.8 Wh
- Footprint
- 209 x 190 mm
- Height
- 117 mm
- Mass (measured)
- 4.3 kg
About
The ABSL CM520 in 8s9p topology is a Li-ion space battery built on the ABSL P20 cell, configured for a 28 V spacecraft bus.
At 4.3 kg and 532.8 Wh it sits between the compact SmallSat units and the large multi-module configurations. EnerSys batteries supply power for platform and payload systems and are also essential prior to the deployment of any solar array apparatus.
ABSL batteries have logged over 6.5 billion cell hours in space without a mission failure, and include the longest operating rechargeable Li-ion battery in space and the batteries trusted to power the James Webb Telescope.
