Additive Tank 100ml 1U
Nammo

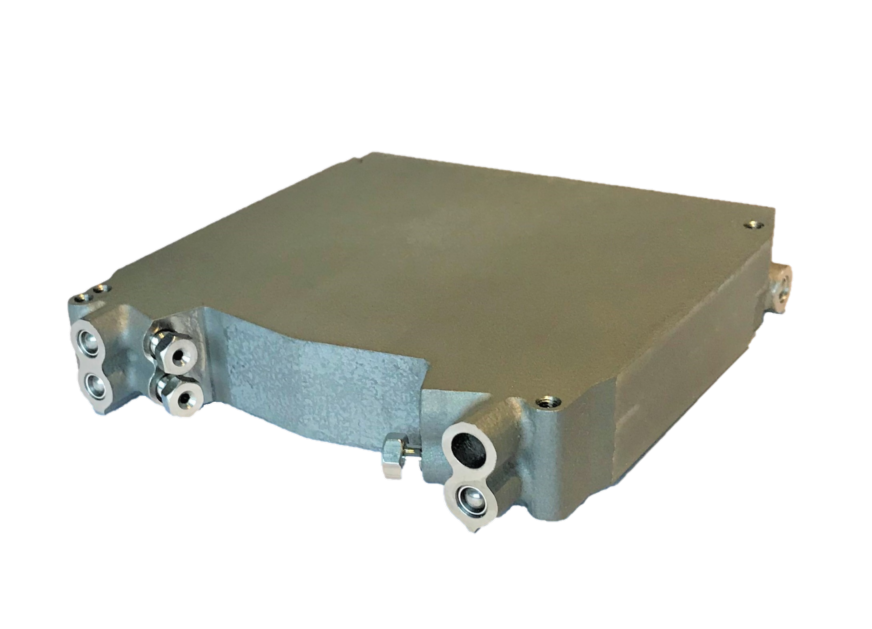

An additively manufactured 100ml fluid storage tank for CubeSat propulsion systems, featuring an integrated plenum tank and compact 1U x 1U x 0.2U envelope.
Typed specifications33 values
Discloses 5 of 9 fields engineers filter by in this category (category median 3).
- Mass
- 180 g datasheet p.2 180 g Dry Mass
- Volume
- 0.1 L datasheet p.2 0.1 L Fuel Volume (Main + Plenum)
- Envelope (L×W×H)
- 1U x 1U x 0.2U datasheet p.2
- Max operating pressure (MEOP)
- 10 bar datasheet p.2 10 bar baseline
- Media / propellant
- Butane, Nitrogen datasheet p.2 HTP (hydrogen peroxide) AlSi10Mg compatible | butane baseline fluids | xenon compatible with Titanium, Inconel, Stainless Steel, Aluminium | other various Cold Gas Media compatible with Titanium, Inconel, Sta… +1
- Material (wetted or shell)
- Titanium datasheet p.2 titanium (Ti-6Al-4V) Tank Materials: Titanium (Inconel, Aluminium, Stainless Steel…
- Operating temperature
- -5 °C product page -5–50 °C Temperature Range
- Design lifetime
- 5 years datasheet p.2 5 years Life
- Component
- tank 500-5000 Hz · datasheet p.2 tank External | tank | tank | tank
- Filtration rating (absolute)
- 15–40 µm Filtration 15 - 40 micron · datasheet p.2
- Satellite class
- CubeSat CubeSat sized propulsion systems · datasheet p.1
- Shock qualification
- 2 kg 500-5000 Hz · datasheet p.2 2 kg 500–5000 Hz
- Proof pressure
- 25 bar baseline · datasheet p.2
- Burst pressure
- 40 bar baseline · datasheet p.2
- Port fitting
- 10-32 UNF Coned or as required datasheet p.2
- External leak rate (as printed)
- External Leakage 1x10-6 scc/s GHe datasheet p.2 1x10-6 scc/s GHe External
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Fuel Volume
- 100 cm3
- Mass
- 180 g
- Pressure [MEOP]
- 10 bar
- Proof Pressure
- 25 bar
- Burst Pressure
- 40 bar
- External Leakage
- 1x10-6 scc/s GHe
- Operating temperature
- -5°C to +50°
- Shock
- 100–500 Hz 12 dB/Octave
- Shock (2)
- 500–5000 Hz 2000 g
- Lifetime
- 5 Years
- Dimensions
- 1U x 1U x 0.2U
- Filtration
- 15 - 40 micron
- Insert Blowout
- 40,000 psi rated
About
The Additive Tank 100ml 1U is a fluid storage device developed by Nammo Space in conjunction with NANOspace AB, Sweden, specifically for CubeSat sized propulsion systems. This 3D printed tank is designed to meet specific porting needs and incorporates an integrated plenum tank, which enables much tighter control of the fuel state at the plenum outlet. The tank’s compact 1U x 1U x 0.2U envelope integrates all ports, allowing for flexible placement within the CubeSat assembly stack. Larger volume variants of the tank can be easily generated. It is a fully closed, “no weld” volume, achieving final cleanliness levels an order of magnitude better than requirements. The flexibility of Additive Manufacturing allows for future integration of components such as thrusters, transducers, valves, and other MEMS components, with the goal of creating a complete propulsion system. This approach improves functionality and reduces part count, leading to significant savings in overall cost and assembly times. Designing for Additive Manufacturing enables the tank to sustain much larger operating pressures due to an internal structure that greatly reduces stresses, optimizing wall and skin thicknesses, and thus production cost and mass. The additive manufacturing process also allows for maximizing the surface area of the filter inlets. A range of tank materials are possible, including Titanium, Inconel, Aluminium, and Stainless Steel.
