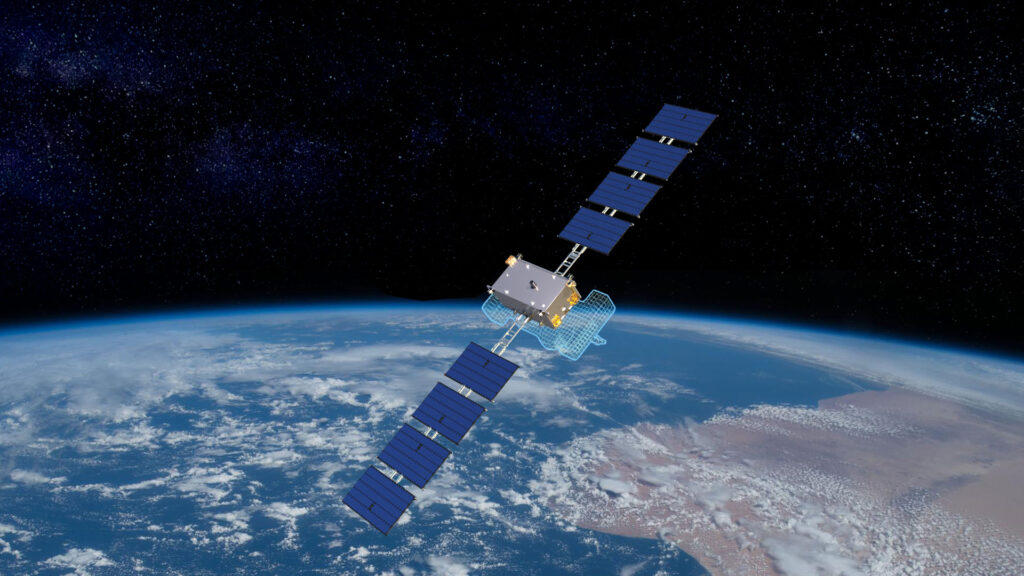

ARROW 450 Satellite Bus
Airbus OneWeb Satellites
Larger, more modular member of the ARROW bus family, derived from the OneWeb constellation design-for-manufacturing approach.
Typed specifications28 values
Discloses 6 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 100 kg product page
- Supply voltage
- 22–38 V product page
- Power consumption
- 700 W product page
- Data interface
- CAN datasheet p.2 SpaceWire | Ethernet
- Design lifetime
- 5 years min · five years minimum lifetime in LEO (1,200 km) · datasheet p.2
- Form factor
- ESPA ESPA Grande · datasheet p.2
- Orbit
- LEO datasheet p.2
- Max payload mass
- 200 kg min · payload mass 200-300 kg · datasheet p.2 300 kg max · payload mass 200-300 kg
- Payload volume
- 1 000 L product page
- Power available to payload
- 3 000 W peak, 1200 km polar orbit · datasheet p.2 450 W min · orbit average, EOL, 450-820 W | 820 W max · orbit average, EOL, 450-820 W
- Unregulated bus for the payload
- 22 V min · 22-38 V unregulated · datasheet p.2 38 V max · 22-38 V unregulated
- Attitude control
- 3-axis stabilised pointing control 0.3 3-sigma · datasheet p.2
- Pointing accuracy
- 0.3 ° max · 3-sigma; precision bus pointing option available · datasheet p.2
- Attitude knowledge
- 0.3 ° max · 3-sigma · datasheet p.2
- Propulsion
- included all-electric propulsion · datasheet p.2
- Delta-v
- 800 m/s at 400 kg total mass · datasheet p.2
- Radio band
- X downlink · datasheet p.2 Ka downlink and TT&C | optical LCT downlink | S TT&C
- Payload mounting
- nadir deck 800 x 1500 mm (standard), 1200 x 2000 mm (max); standard payload deck and interfaces datasheet p.2
- Satellite class
- ESPA-class ESPA Grande · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier18 lines, in the manufacturer's own wording
- Position in family
- Larger and more modular than the ARROW150
- Design basis
- Design-for-manufacturing approach derived from the OneWeb commercial satellite constellation
- Production
- Assembly line process at Merritt Island, Florida
- Mission types
- High data-rate low latency communications, RF sensing collection and tracking, high-revisit Earth observation, machine-to-machine communications, IoT research, in-orbit technology demonstration
- Payload Mass
- 100 kg
- Payload Volume
- 1 m³
- Payload Power
- 250 W Average (EOL)
- Payload Power (2)
- 700 W Peak
- Supply voltage
- 22-38 V Unregulated
- Nadir Deck Area
- 800 x 750 mm
- Avionics Architecture
- Simplified CAN / SpaceWire / Ethernet
- Pointing Control
- 0.3 3-sigma
- Pointing Knowledge
- 0.3 3-sigma
- Position Knowledge
- 10 m 1-sigma
- Velocity
- 0.06 m/s 1-sigma
- Time Accuracy
- 50 ns 1-sigma
- Propulsion
- 800 m/s ΔV @ 200 kg total mass
- Lifetime
- five years minimum
About
The ARROW satellite bus is Airbus’ innovative, responsive, versatile, and affordable platform designed for high-performance space applications. Its design-for-manufacturing approach, derived from the OneWeb commercial satellite constellation, allows ARROW to be produced cost-effectively in an assembly line process, making it particularly attractive for both commercial and government customers, especially for the proliferated LEO constellations envisioned by the U.S. government.
ARROW is a commoditized space vehicle that can support a wide range of missions, including high data-rate low latency communications, collection and tracking of radio frequency sensing data, Earth observation with a high revisit, machine to machine communications, internet of things research, and in-orbit technology demonstration missions.
The ARROW450 is the larger, more modular member of the family, offering greater versatility and capability to support a wider range of missions than the ARROW150. Both are built and integrated at Airbus U.S. Space & Defense’s Merritt Island, Florida final assembly line.
