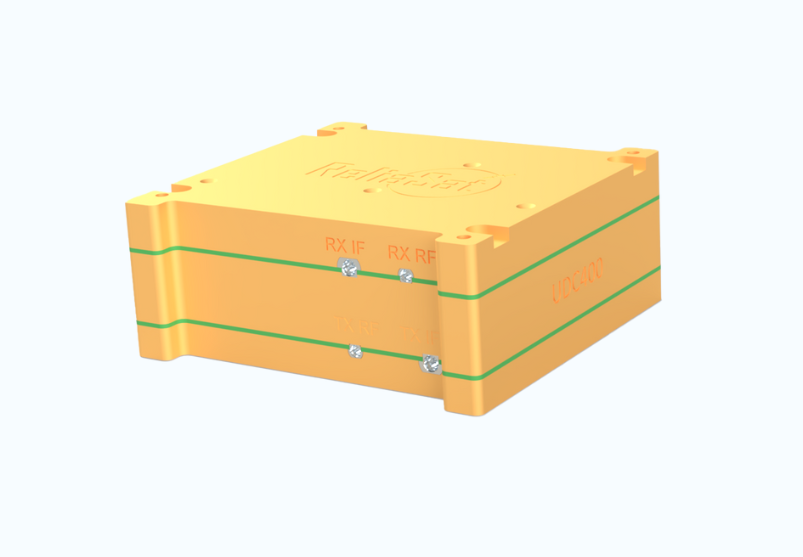

Ka-Band Integrated Transceiver Module UDC400
ReliaSat
The UDC400 is a compact standalone Ka-band transceiver module for LEO satellite communications, offering 250 MHz instantaneous bandwidth, +/-0.28 ppm TCXO frequency stability, and SMP/SMPM RF connectors in an aluminum enclosure for SDR/modem integration.
Typed specifications45 values
Discloses 7 of 8 fields engineers filter by in this category (category median 2).
- Frequency band
- Ka RX · datasheet p.1 Ka TX | Ka TX 17-21 GHz, RX 27-30 GHz (Ka-band in document)
- Mass
- 430 g typ. · datasheet p.3 430 g | 430 g nom. · total mass ~0.430 kg
- Frequency range
- 1 000–4 000 MHz RX IF output frequency range · datasheet p.2 27 000–30 000 MHz RX Input | 27 000–30 000 MHz RX input frequency range | 1 000–5 000 MHz TX IF input frequency range | 17 000–21 000 MHz TX Output +1
- Envelope (L×W×H)
- 95.89 x 90.17 x 38.15 mm Mechanical Enclosure · datasheet p.3 95.89 x 90.17 x 38.15 mechanical enclosure dimensions | 95.89 x 90.17 x 1 PCB dimensions
- TX RF output power
- 0.398 W output power at P1dB compression (Pin=-14 dBm) · datasheet p.2 0.398 W P1dB Compression | 0.501 W Saturated Output Power | 0.501 W saturated output power (Pin=-15 dBm)
- Supply voltage
- 7–42 V RX · datasheet p.2 7–42 V supply voltage range (TX and RX) | 7–42 V TX
- Power consumption
- 6 W max · RX, @ 12 VDC · datasheet p.2 11.5 W max · TX, @ 12 VDC
- Operating temperature
- -40–85 °C datasheet p.3
- Function
- transceiver standalone transceiver, wideband up/down converter combined w… · datasheet p.1
- RF connector
- SMP IF signal connectors, edge mounts · datasheet p.3 other IF Signal, SMP edge mounts | SMPM RF, edge mount | other RF, SMPM edge mount | SMPM
- Power draw, receive
- 6 W max · receiver DC power @ 12 VDC, <6 · datasheet p.2
- Power draw, transmit
- 11.5 W max · transmitter DC power @ 12 VDC, <11.5 · datasheet p.2
- Connector
- SMP and SMPM RF connectors datasheet p.1 DC Flying Leads | 6-Pin Pico-Lock connectors
- Flight heritage
- Rocket Labs Mission 18, OHB SatComm datasheet p.1
- Satellite class
- CubeSat form factor requirement: Cube Sat · datasheet p.3
- Missions flown
- 1 datasheet p.1
- Channel bandwidth
- 250 000 kHz datasheet p.1 250 000 kHz max · up to 250 MHz of instantaneous bandwidth
- Board format
- custom PCB Dimensions 95.89 x 90.17 x 1 mm · datasheet p.3
- RF gain
- 30–35 dB RX conversion gain · datasheet p.2 38–43 dB TX conversion gain
- Noise figure
- 2.5 dB max · receiver, <2.5 · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Tx output frequency
- 17-21 GHz
- Rx input frequency
- 27-30 GHz
- Tx if frequency
- 1-5 GHz
- Rx if frequency
- 1-4 GHz
- Instantaneous bandwidth
- Up to 250 MHz
- Reference input
- 10 MHz or 100 MHz (external or on-board TCO)
- Frequency stability
- +/-0.28 ppm (-40C to +85C)
- Housing
- Aluminum
- RF connectors
- SMP and SMPM
- DC connector
- DC Flying Leads
- Control connector
- 6-Pin Pico-Lock (enable, PLL lock, current, temperature)
About
The UDC400 is a fully integrated standalone Ka-band transceiver module designed for Low Earth Orbit (LEO) satellite communications systems. It operates as a wideband up/down converter that interfaces directly with a modem or Software Defined Radio (SDR) to enable full-function Ka-band satellite communications, with TX at 17-21 GHz, RX at 27-30 GHz, and up to 250 MHz of instantaneous bandwidth.
On-board frequency synthesizers lock to an external or on-board 10 MHz or 100 MHz reference provided by high-precision, low-power Temperature Compensated Oscillators (TCO), achieving frequency stability of +/-0.28 ppm across -40C to +85C. This level of frequency accuracy is critical for LEO satellite operations where Doppler compensation and tight frequency management are required.
The UDC400 is fully enclosed in an aluminum housing with SMP and SMPM RF connectors, DC Flying Leads for power supply, and 6-Pin Pico-Lock connectors for power enable, PLL lock indication, current monitoring, and temperature sensing. Its compact form factor and comprehensive monitoring interfaces make it well-suited for integration into small satellite ground terminals, airborne SATCOM systems, and LEO constellation user terminals.
